8460M15.12

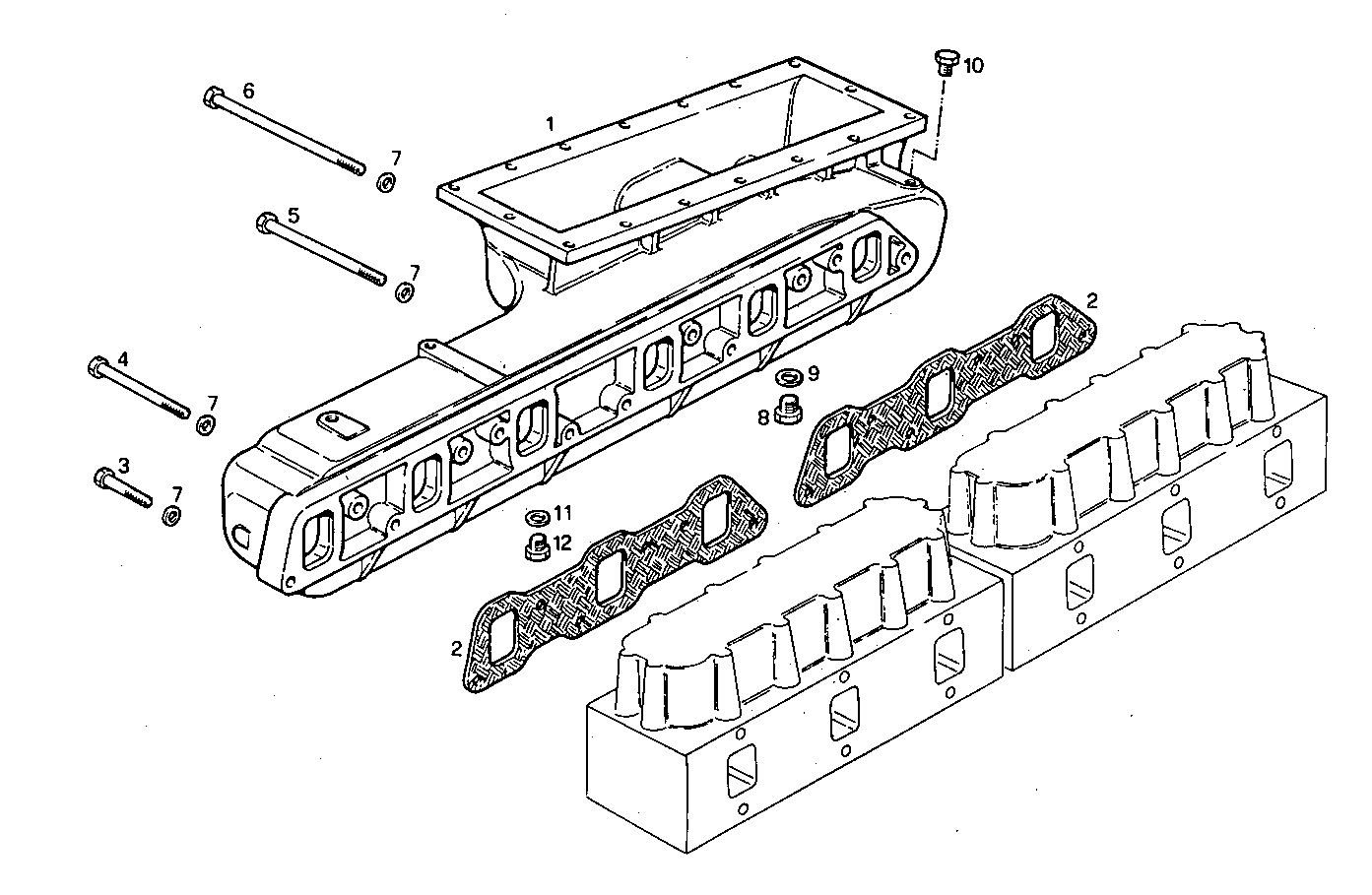

0710.087 INTAKE MANIFOLD
| Item | Part number | Description |
|---|---|---|
| 1 | 8005001 | INTAKE ELBOW |
| 2 | 61321089 | INTAKE ELBOW GASK. |
| 3 | 11343821 | HEXAGON BOLT M10X1,25X50 MM |
| 4 | 15972021 | HEXAGON BOLT M10X1,25X110 MM |
| 5 | 15972621 | HEXAGON BOLT M10X1,25X140 MM |
| 6 | 8113808 | SCREW |
| 7 | 17090174 | SPRING WASHER Ø10X20 MM |
| 8 | 8006160 | PLUG |
| 9 | 4858609 | WASHER Ø16X22 MM SP=1,5 MM |
| 10 | 16996040 | PLUG M10X1 |
| 11 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
| 12 | 16992240 | THREADED PLUG M12X1,5 |
