8460M15.12

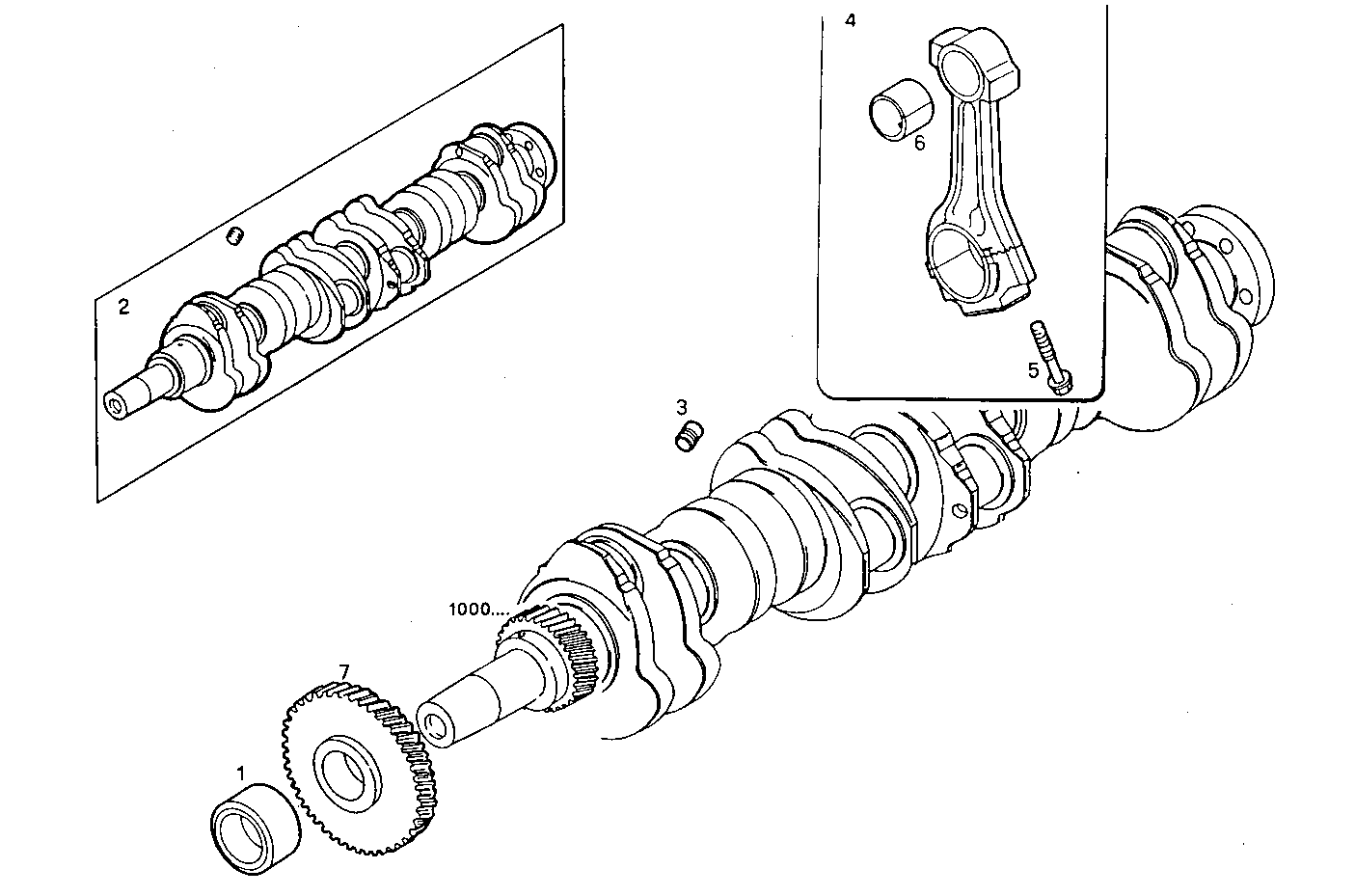

0800.038 CRANK SHAFT - CONNECTING RODS

Iveco/FPT CRANK SHAFT - CONNECTING RODS

Item Part number Description
1 61316775 CENTERING BUSH
2 61318243 CRANK SHAFT ASSY
3 61577322 LOCK PLUG
4 61319082 CONN.ROD ASSY.
5 61315181 BIG-END BOLT
6 61317845 BIG-END BUSH
7 61318596 CAMSHAFT PINION
