8460M15.12

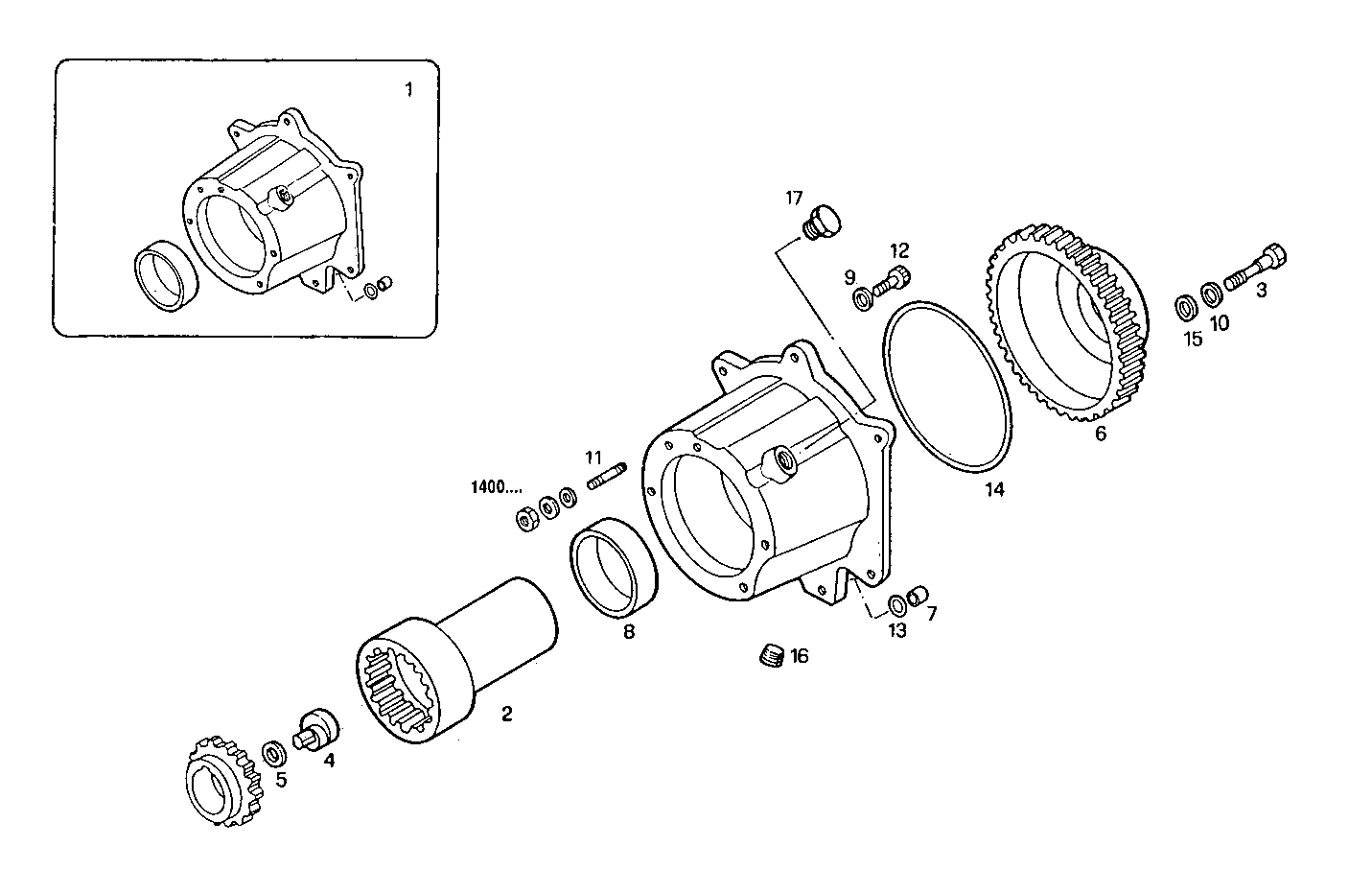

1410.046 INJECTION PUMP DRIVE

Iveco/FPT INJECTION PUMP DRIVE

Item Part number Description
1 61319183 SUPPORT ASSY
2 61319188 INJECT.PUMP SPIND
3 15540934 SCREW M12X1,25X55
4 61317603 RETAINING CAM
5 61316640 CORRUGATED WASHER
6 61317602 INJ.PUMP DRIV.GEA
7 61584413 CENTERING BUSH
8 61585959 BUSH
9 17089574 WASHER Ø8X16 MM
10 17091174 SPRING WASHER Ø12X24 MM
11 13449824 STUD M10X1,25X15 MM
12 16690624 CYLIND-HEAD SCREW M8X25 MM
13 17277881 O-RING Ø7,65 MM SP=1,78 MM
14 17286281 O-RING Ø125,6 MM SP=2,62 MM
15 4837398 WASHER Ø12X28 MM SP=4 MM
16 8007695 PLUG M10X1
