8460M15.12

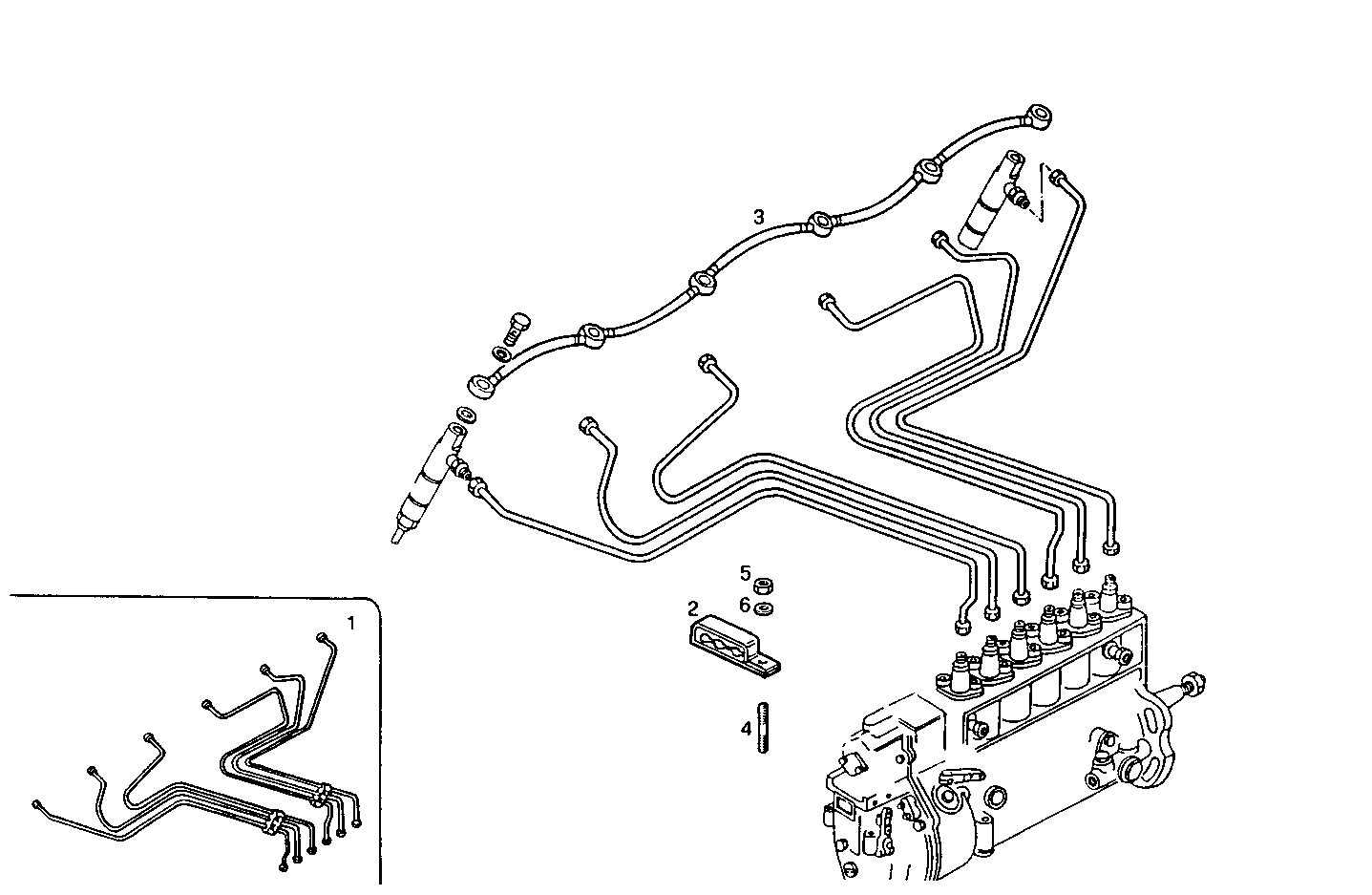

2020.038 INJECTION PIPES
| Item | Part number | Description |
|---|---|---|
| 1 | 98401536 | INJECTION LINE SET ASSY |
| 2 | 8102995 | RETAINER |
| 3 | 61317897 | FUEL LINE |
| 4 | 16043124 | SCREW M8X14 MM |
| 5 | 17037931 | HEXAGON NUT M8X1,25 |
| 6 | 17089574 | WASHER Ø8X16 MM |
