8460M15.12

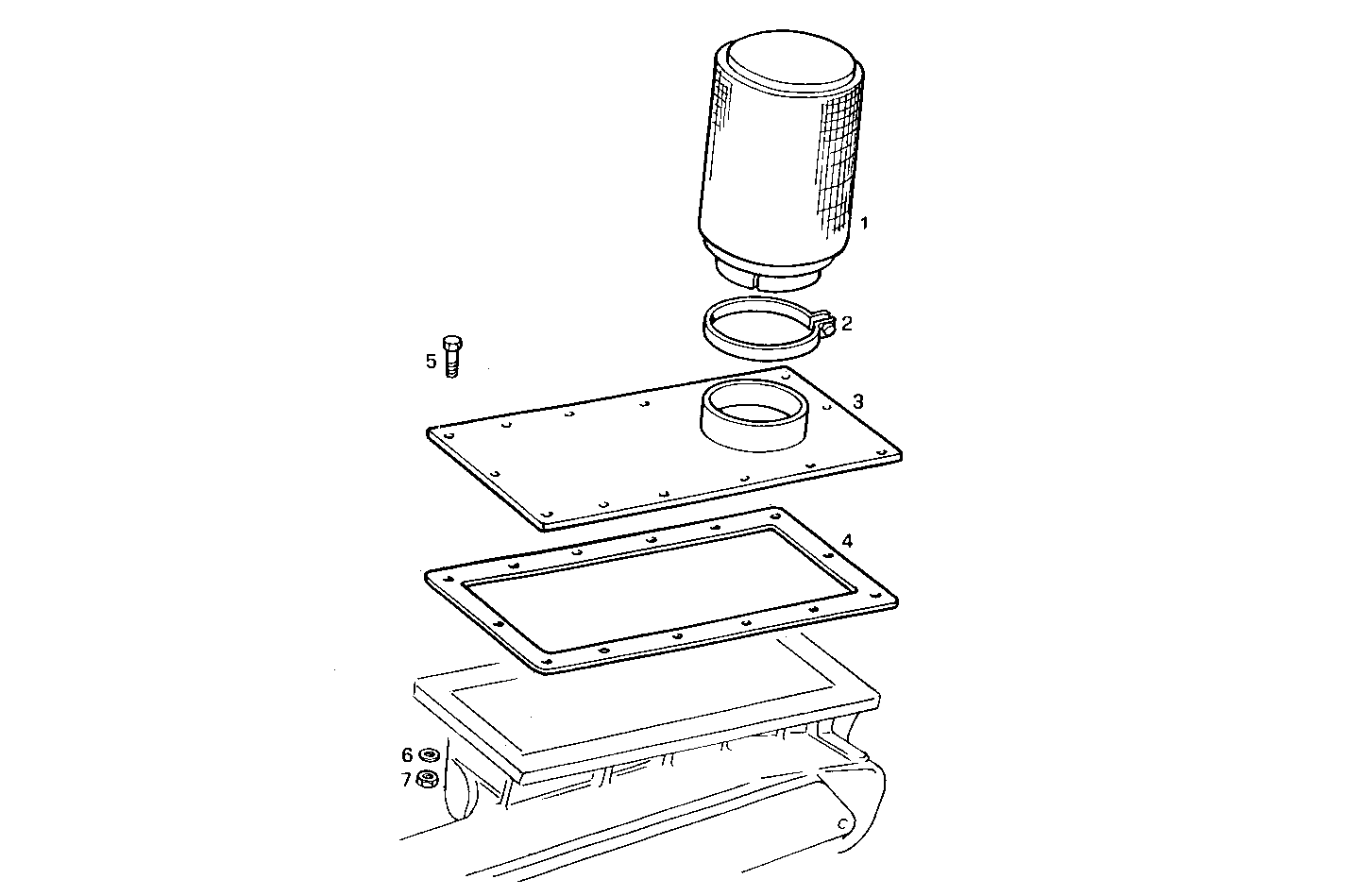

2210.030 AIR CLEANER
| Item | Part number | Description |
|---|---|---|
| 1 | 8015887 | AIR CLEANER ASSY |
| 2 | 8017274 | CLIP |
| 3 | 8011099 | FLANGE |
| 4 | 8008906 | GASKET |
| 5 | 16605824 | HEXAGON BOLT M8X35 MM |
| 6 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 7 | 17037931 | HEXAGON NUT M8X1,25 |
