8460M15.12

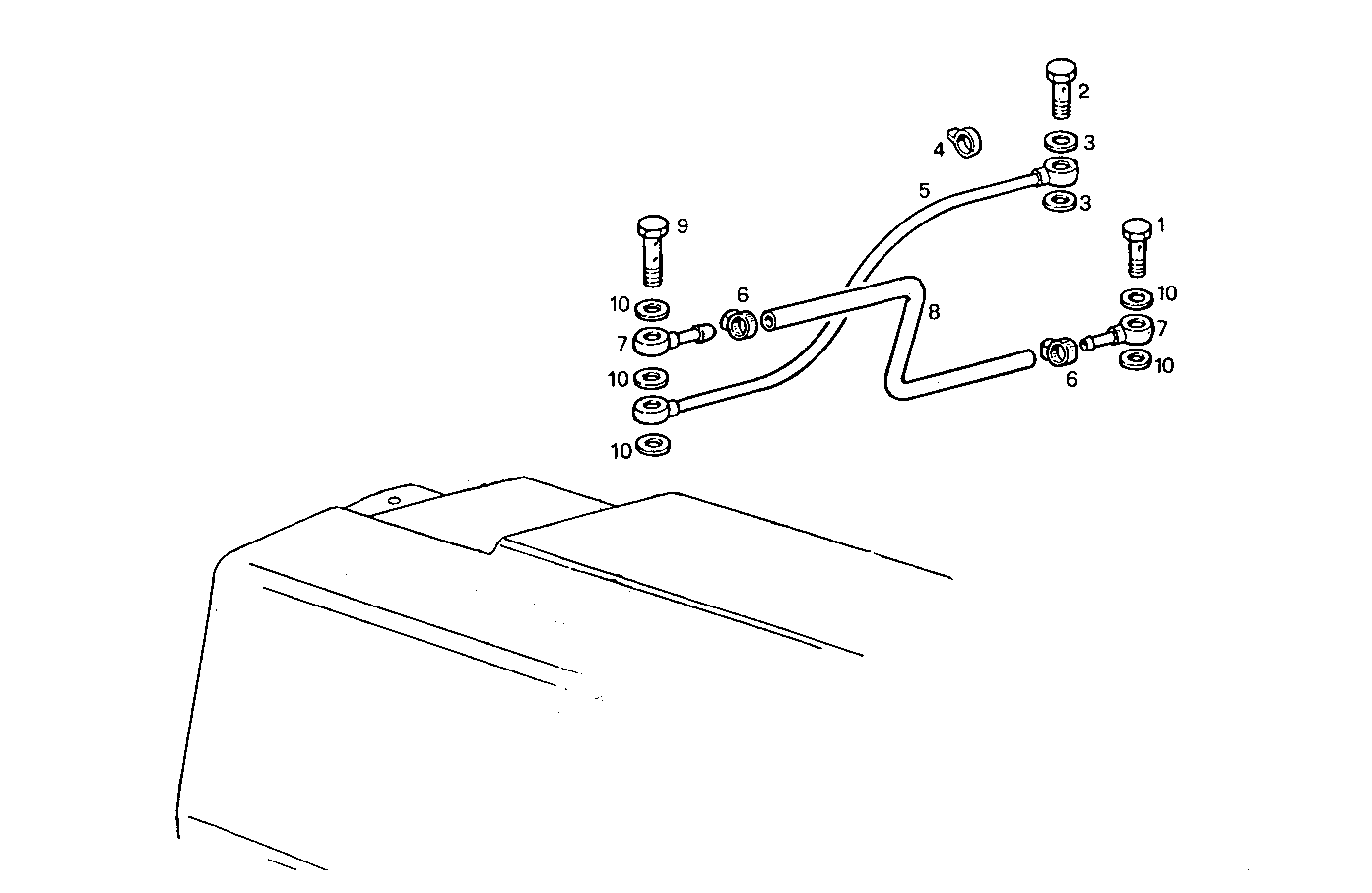

3210.103/04 WATER LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 4864080 | SCREW CONNECTOR M10X1,25 |
| 2 | 4930504 | SCREW CONNECTOR |
| 3 | 4858606 | GASKET Ø10X14X1 MM |
| 4 | 4656139 | FASTENING BRACKET |
| 5 | 8006945 | WATER PIPE |
| 6 | 18088392 | CLIP Ø16/25 MM |
| 7 | 98434018 | THREADED UNION |
| 8 | 98421396 | WATER HOSE |
| 9 | 8009696 | SCREW CONNECTOR M12X1,5X25 |
| 10 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
