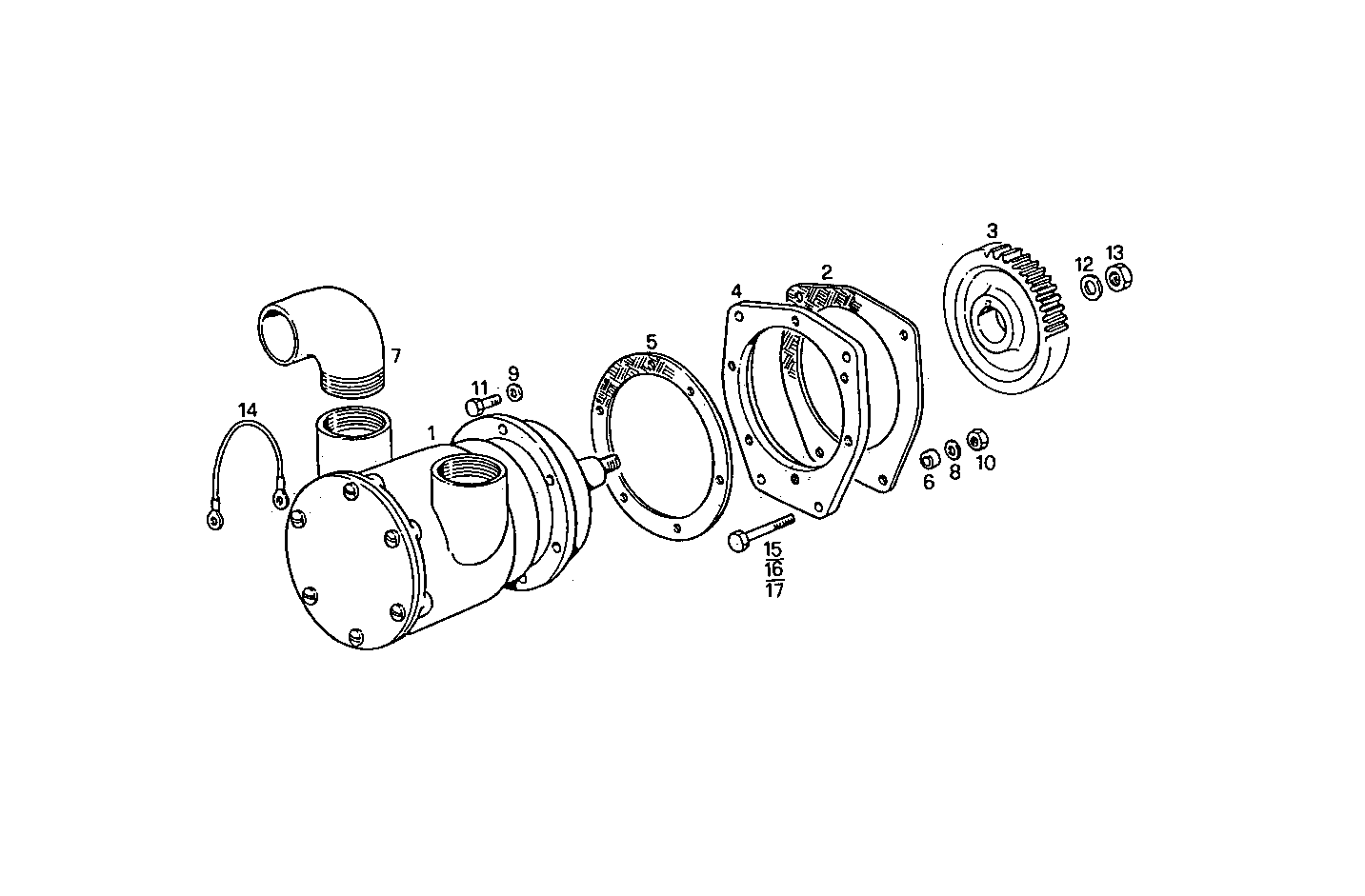

Item |
Part number |
Description |
1 |
8107337 |
SEA WATER PUMP ASSY JABSCO |
2 |
4864032 |
FLAT ENGINE GASKET |
3 |
8007979 |
GEAR |
4 |
8017342 |
SPACING BAR |
5 |
8008952 |
GASKET |
6 |
8101556 |
SPACING BAR SP=13,00 MM |
7 |
8109665 |
SEA WATER PIPE INLET |
8 |
17090174 |
SPRING WASHER Ø10X20 MM |
9 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
10 |
17038221 |
HEXAGON NUT M10 |
11 |
16605624 |
HEXAGON BOLT M8X25 MM (8.8) |
12 |
4709364 |
LOCKING PLATE |
13 |
4709365 |
HEXAGON NUT |
14 |
8109924 |
ENGINE HARNESS GND |
15 |
15971821 |
SCREW M10X1,25X100 |
16 |
15972021 |
HEXAGON BOLT M10X1,25X110 MM |
17 |
15971421 |
HEXAGON BOLT M10X1,25X80 MM |
