8460M15.12

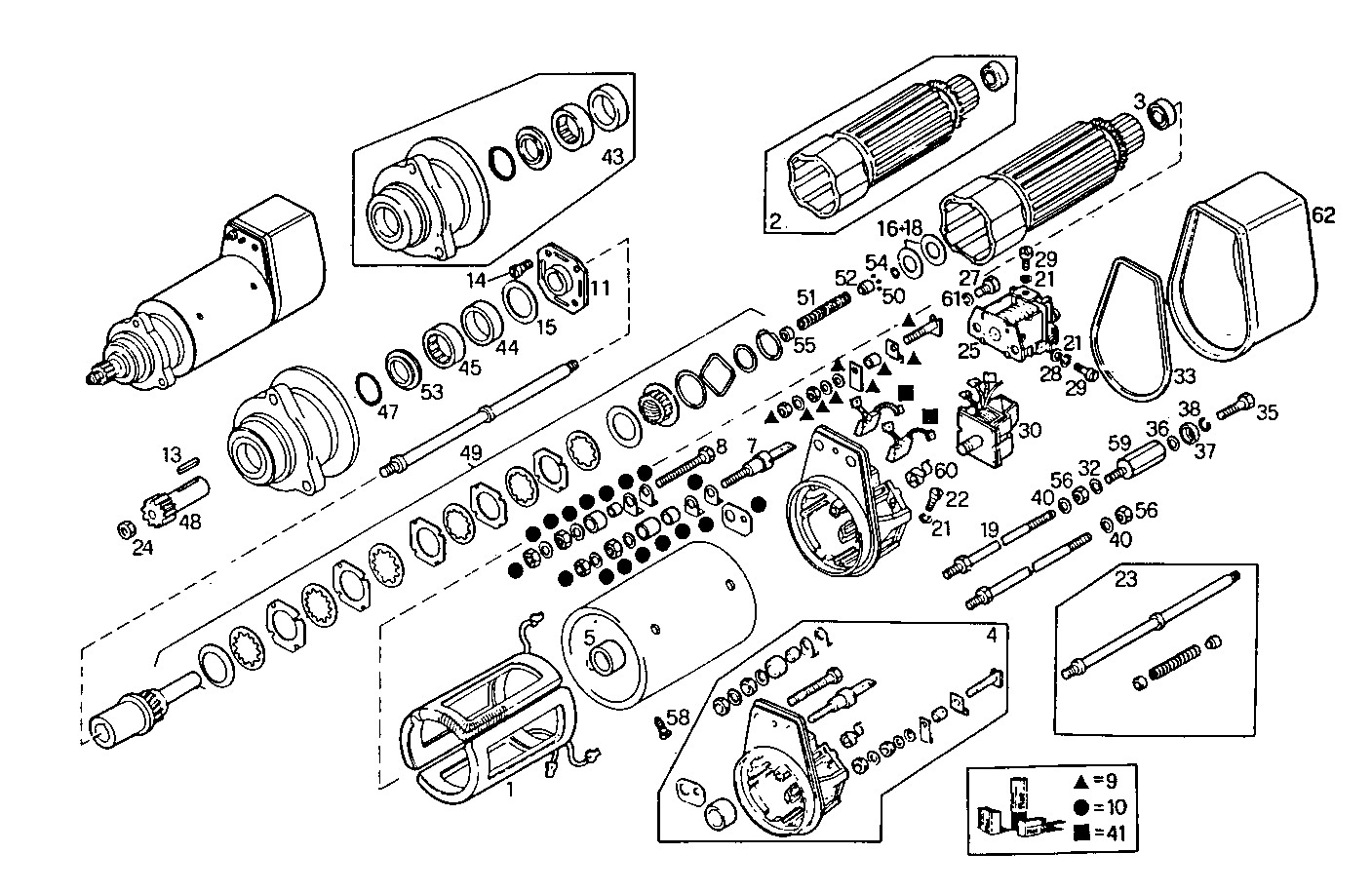

3630.017 STARTER MOTOR (COMPONENTS)
| Item | Part number | Description |
|---|---|---|
| 1 | 8122371 | STARTER WINDING |
| 2 | 8122372 | STARTER ARMATURE ASSY |
| 3 | 1905092 | ENGINE BEARINGS |
| 4 | 9934328 | STARTER SUPPORT ASSY |
| 5 | 79052278 | BUSH |
| 7 | 1290021 | SCREW |
| 8 | 9928976 | SCREW |
| 9 | 1306445 | KIT-STARTER |
| 10 | 8124103 | KIT-STARTER |
| 11 | 9920338 | FLANGE |
| 13 | 1117970 | KEY |
| 14 | 79052237 | SCREW |
| 15 | 79052239 | RING |
| 16 | 79052250 | SHIM 0,30 MM |
| 17 | 1289919 | SHIM 0,50 MM |
| 18 | 1289920 | WASHER SP=0,2 MM |
| 19 | 42485205 | TIE ROD |
| 21 | 17494634 | SPRING WASHER Ø5,1X9,2 MM |
| 22 | 79052258 | CUTTING SCREW |
| 23 | 42485204 | STUD ASSY |
| 24 | 8121271 | NUT |
| 25 | 79052269 | STARTER SOLENOID |
| 26 | 9916099 | WASHER |
| 27 | 9920400 | SCREW |
| 28 | 93159935 | WASHER M6X12 MM |
| 29 | 79028449 | SCREW |
| 30 | 79052266 | STARTER SOLENOID |
| 32 | 9920379 | WASHER |
| 33 | 9920382 | GASKET |
| 34 | 1306477 | COVER |
| 35 | 9922944 | SCREW |
| 36 | 9933672 | GASKET |
| 37 | 79052265 | BUSH |
| 38 | 9929741 | WASHER |
| 40 | 9009583 | WASHER |
| 41 | 79052257 | KIT-STARTER |
| 43 | 9984245 | STARTER SUPPORT ASSY |
| 44 | 79052271 | BUSH |
| 45 | 1905095 | ENGINE BEARINGS |
| 47 | 9920383 | WASHER |
| 48 | 9984246 | STARTER PINION |
| 49 | 79052241 | SHAFT ASSY |
| 50 | 1289875 | BALL |
| 51 | 8121269 | SPRING |
| 52 | 79052246 | RING SP=0,5 MM |
| 53 | 9920332 | RING |
| 54 | 9920367 | CIRCLIP Ø125 MM SP=4 MM |
| 55 | 9927316 | BUSH |
| 56 | 15896221 | HEXAGON NUT M6X1 |
| 57 | 42485206 | TIE ROD |
| 58 | 42489183 | SCREW M10X18 MM |
| 59 | 1290074 | PIN |
| 60 | 1290139 | SPRING |
| 61 | 10516673 | SPRING WASHER Ø8,1X14,8 MM |
| 62 | 79076024 | COVER |
