8460M15.12

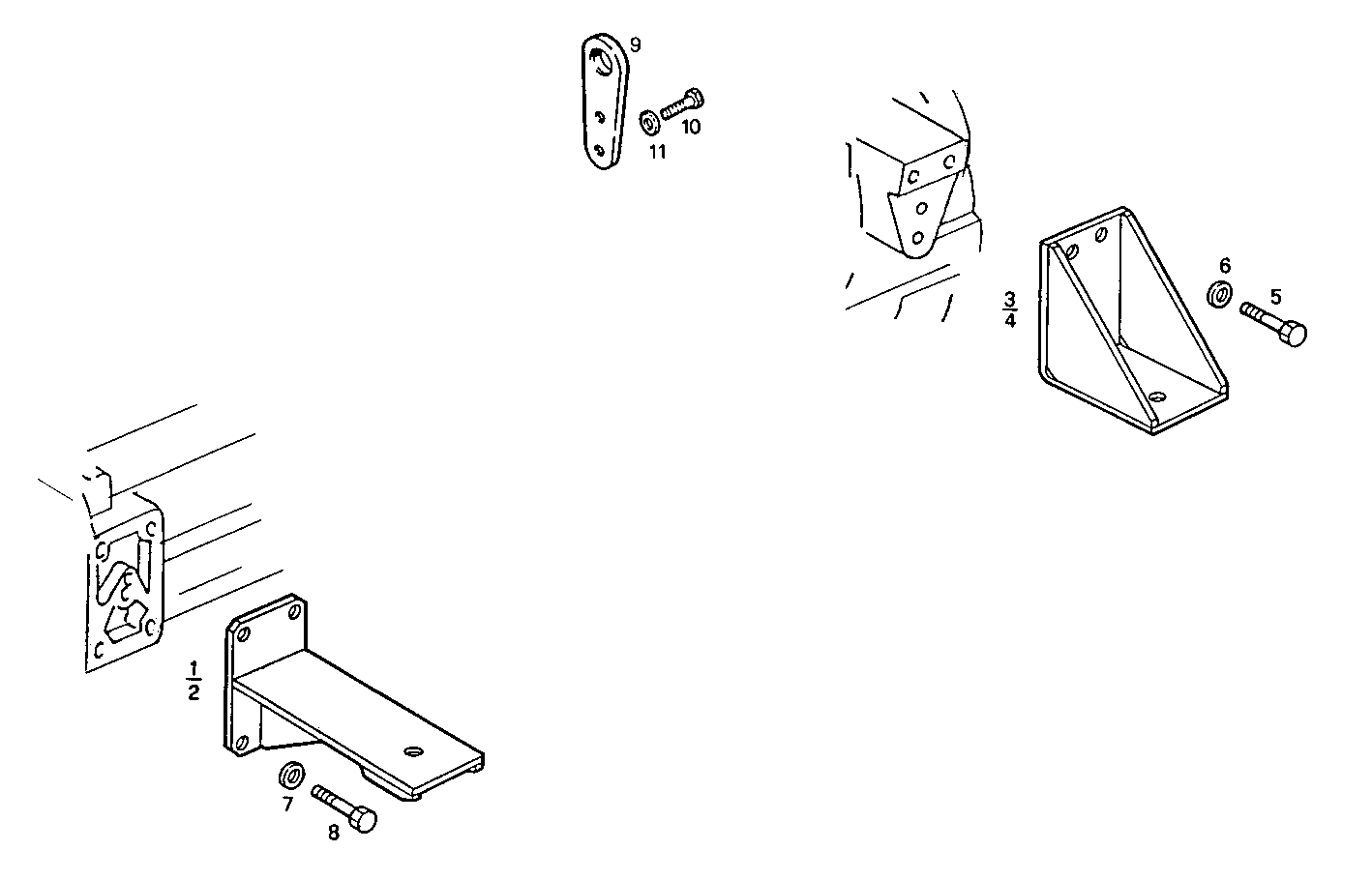

4500.050 ENGINE SUSPENSION
| Item | Part number | Description |
|---|---|---|
| 1 | 8008914 | ENGINE SUSPENSION RIGHT |
| 2 | 8008915 | ENGINE SUSPENSION LEFT |
| 3 | 8008916 | ENGINE SUSPENSION RIGHT |
| 4 | 8008917 | ENGINE SUSPENSION LEFT |
| 5 | 11391531 | SCREW |
| 6 | 17092374 | SPRING WASHER Ø16X34X3,6 MM |
| 7 | 17091674 | WASHER Ø14X27X3,0 MM |
| 8 | 16612334 | SCREW M14X35 |
| 9 | 61320021 | LOCK/YOKE |
| 10 | 15542734 | SCREW M14X28 |
| 11 | 17091774 | SPRING WASHER Ø14X27 SP=3,8 MM |
