8460M15.12

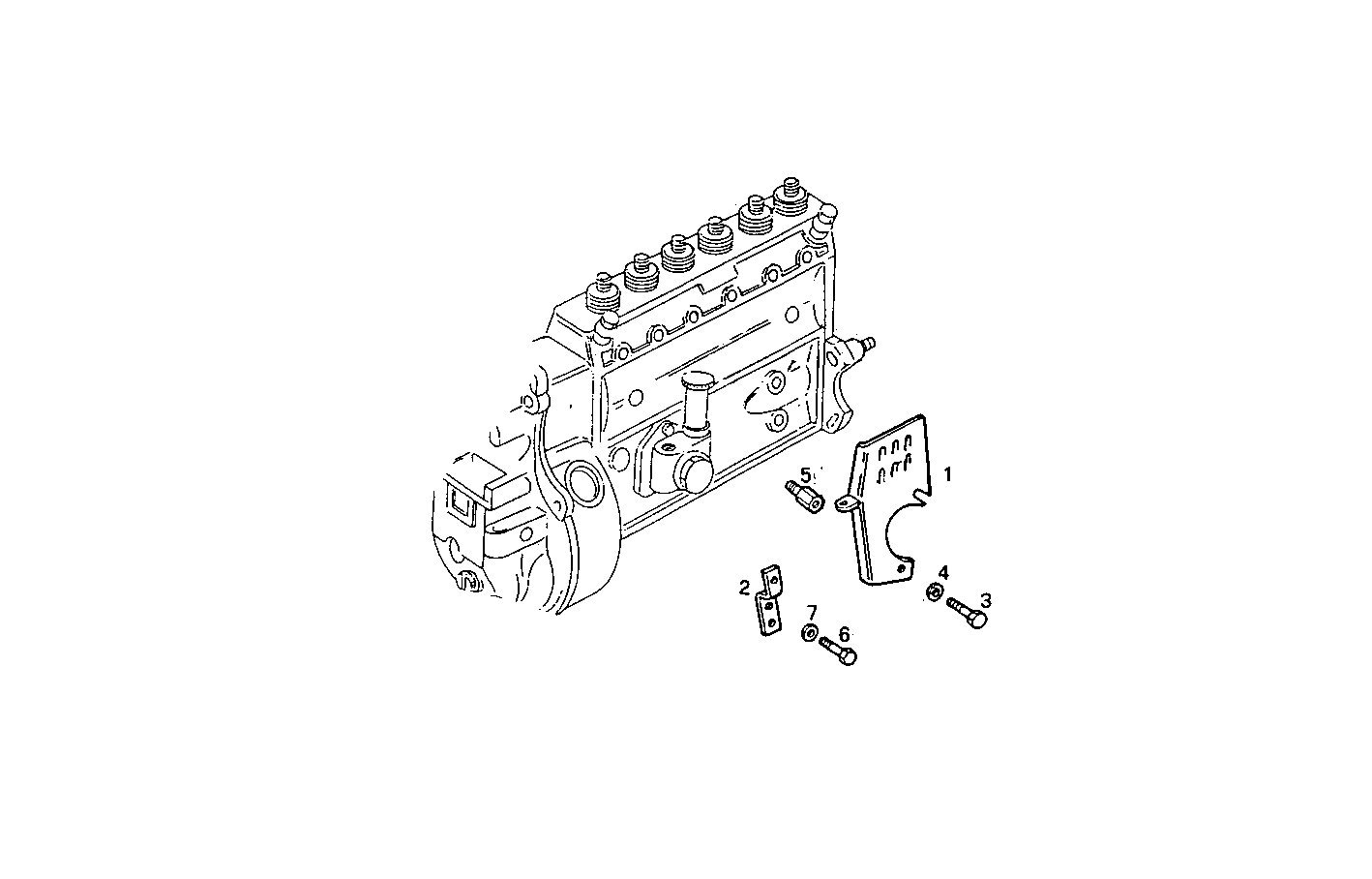

5600.009 HAND ACCELERATOR
| Item | Part number | Description |
|---|---|---|
| 1 | 8012081 | SUPPORT [from 05-92] |
| 2 | 8018550 | RETAINER |
| 3 | 16605424 | SCREW M8X16 MM (8.8) |
| 4 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 5 | 8012080 | SPACING BAR [from 05-92] |
| 6 | 16603524 | SCREW M6X12 MM (8.8) |
| 7 | 17088474 | WASHER Ø6X12 MM |
