8460M15.12

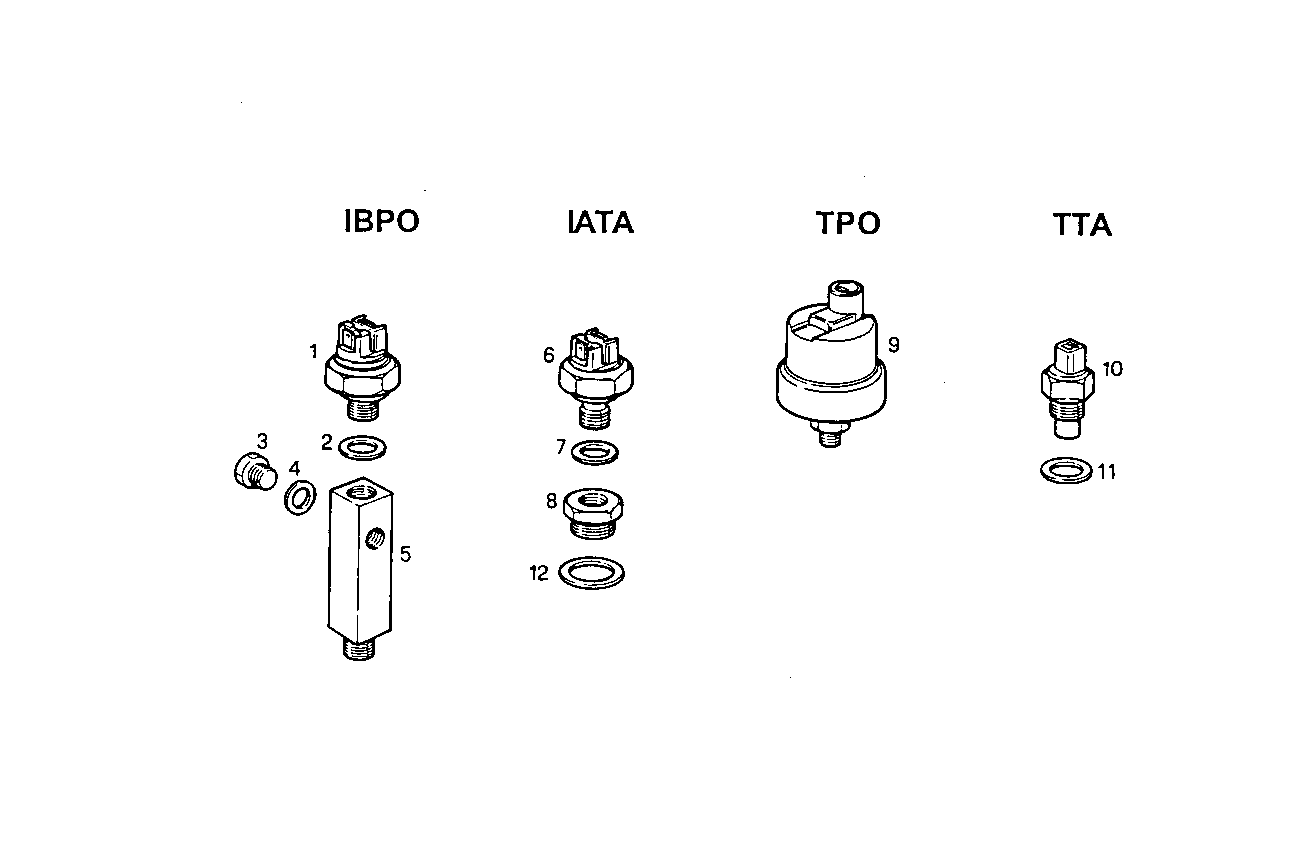

A38550059 SENDER UNITS FOR INSTRUMENTS - 12/24V - VEGLIA
Item | Part number | Description |
---|---|---|
1 | 8114030 | TRANSMITTER IBPO |
2 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
3 | 11903014 | PLUG |
4 | 4858606 | GASKET Ø10X14X1 MM |
5 | 4929576 | PIPE SOCKET |
6 | 8019334 | TRANSMITTER IATA |
7 | 4858608 | SEAL GASKET dia.14x19,5x1,5 |
8 | 4930370 | PIPE SOCKET |
9 | 8008031 | TRANSMITTER TPO |
10 | 8008030 | TRANSMITTER TTA |
11 | 4858609 | WASHER Ø16X22 MM SP=1,5 MM |
12 | 98429281 | SEAL GASKET Ø24X31 MM SP=1,5 MM |
