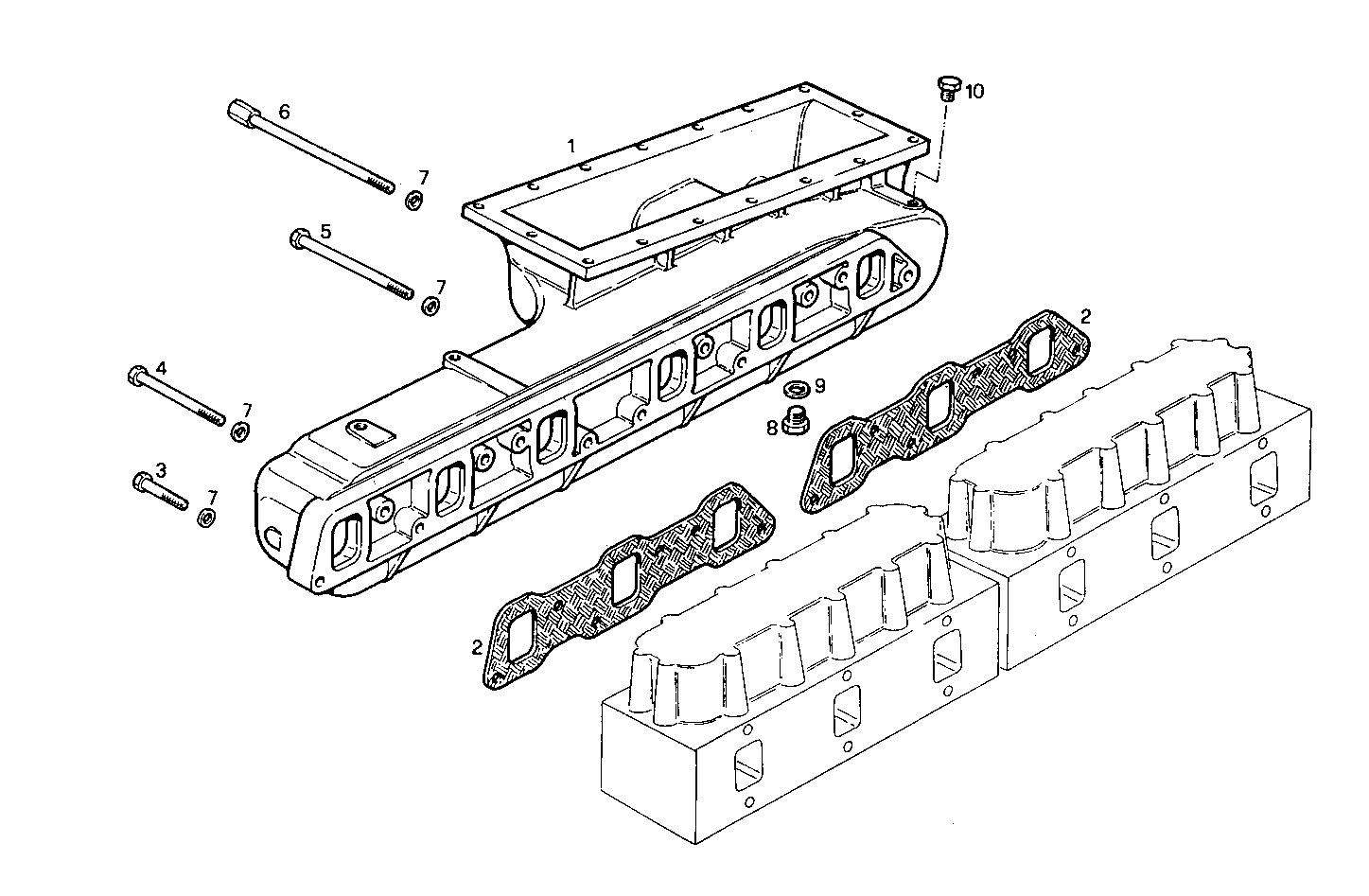

0710.073 INTAKE MANIFOLD

Iveco/FPT INTAKE MANIFOLD

Item Part number Description
1 8005001 INTAKE ELBOW
2 61321089 INTAKE ELBOW GASK.
3 11343821 HEXAGON BOLT M10X1,25X50 MM
4 15972021 HEXAGON BOLT M10X1,25X110 MM
5 15972621 HEXAGON BOLT M10X1,25X140 MM
6 8113808 SCREW
7 17090174 SPRING WASHER Ø10X20 MM
8 8006160 PLUG
9 4858609 WASHER Ø16X22 MM SP=1,5 MM
10 16996040 PLUG M10X1
