8460SM19.12

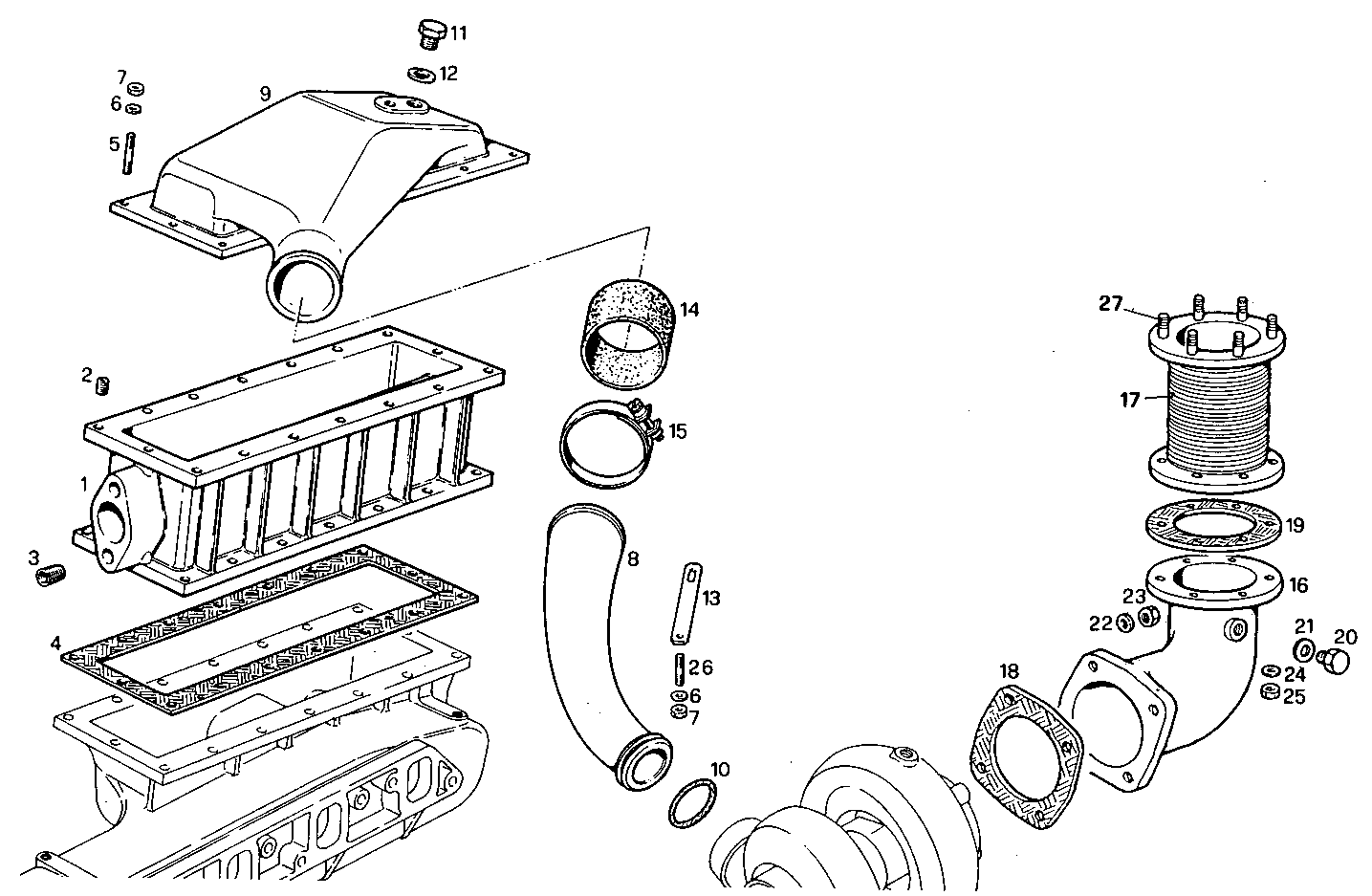

2420.094 SUPERCHARGING LINES

Iveco/FPT SUPERCHARGING LINES

Item Part number Description
1 8026715 SPACING BAR
2 17873271 THREADED INSERT M8
3 17873521 THREADED INSERT
4 8008906 GASKET
5 16729424 STUD M8X1,25X25
6 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
7 17037931 HEXAGON NUT M8X1,25
8 8005787 INTAKE ELBOW
9 8005757 AIR HOOD
10 17296181 O-RING Ø59,69X5,33 MM
11 16992511 THREADED PLUG M18X1,5
12 4858610 WASHER Ø18X24 MM SP=1,5 MM
13 8006782 RETAINER
14 4865230 TURBOCHARGER HOSE
15 8007611 CLIP
16 8013472 EXHAUST ELBOW
17 8101671 EXHAUST BELLOWS
18 8111833 GASKET
19 8009600 GASKET
20 16992240 THREADED PLUG M12X1,5
21 4858607 WASHER Ø12X17 MM SP=1,5 MM
24 17090174 SPRING WASHER Ø10X20 MM
25 17038121 HEXAGON NUT M10
26 16729224 STUD M8X16 MM
27 13449524 STUD M10X1,25X15X25
