8460SM19.12

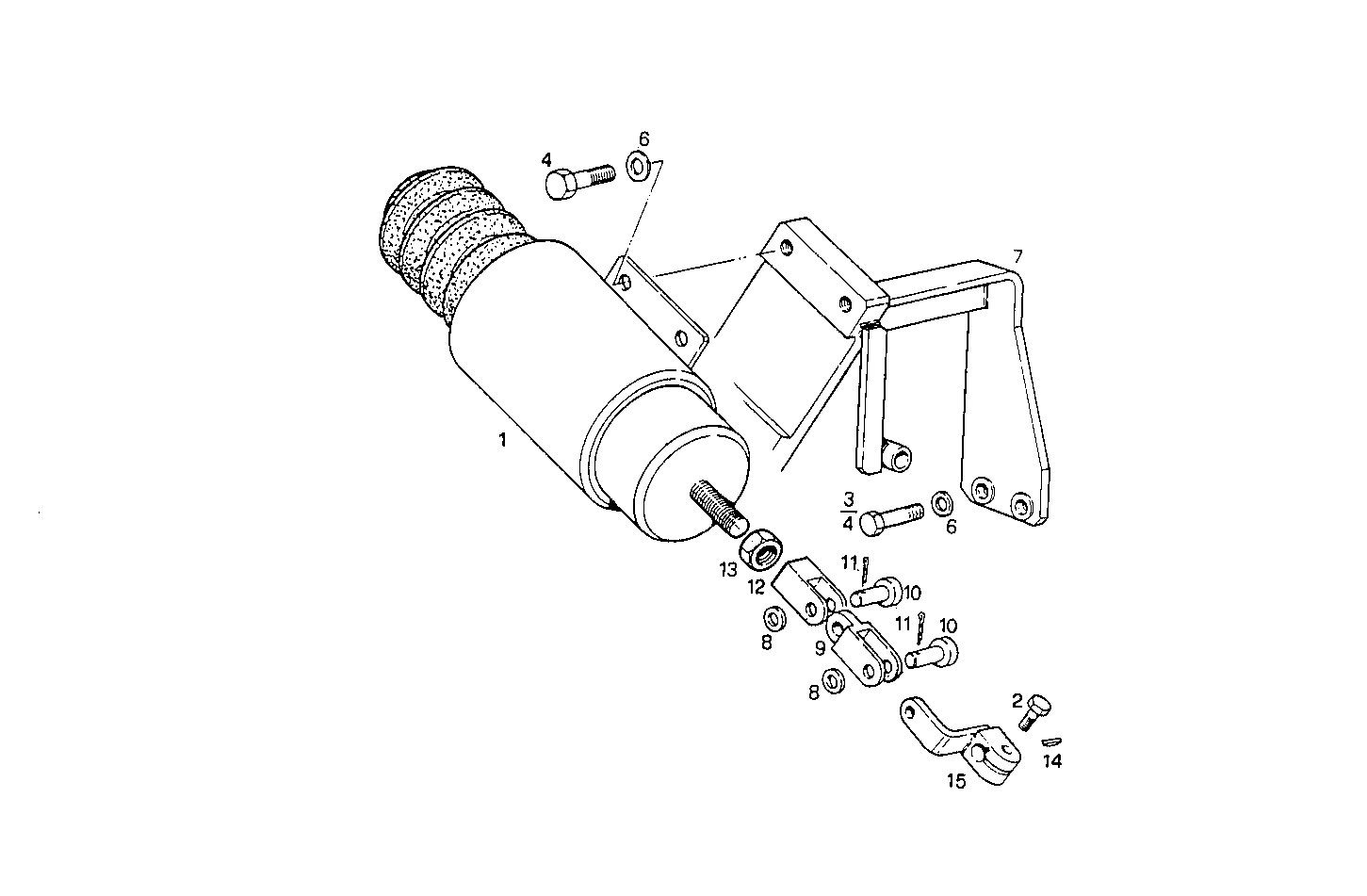

5650.028/01 ELECTRIC STOP ENGINE

Iveco/FPT ELECTRIC STOP ENGINE

Item Part number Description
1 8017618 SOLENOID ASSY
2 10977721 HEXAGON BOLT M5X14 MM
3 16689624 HEXAGON BOLT M6X40 MM (8.8)
4 16603624 HEXAGON BOLT M6X16 MM (8.8)
6 17088474 WASHER Ø6X12 MM
7 8006296 SUPPORT
8 14497801 WASHER Ø5X9,5 MM
9 8108833 CLEVIS
10 17718411 PIN Ø5 MM
11 10734101 SPLIT PIN Ø1,3 MM
12 8109159 CLEVIS M6X40
13 17037821 HEXAGON NUT M6X1
14 8101048 KEY 3X5X12,5
15 8110753 LEVER
