8460SM19.12

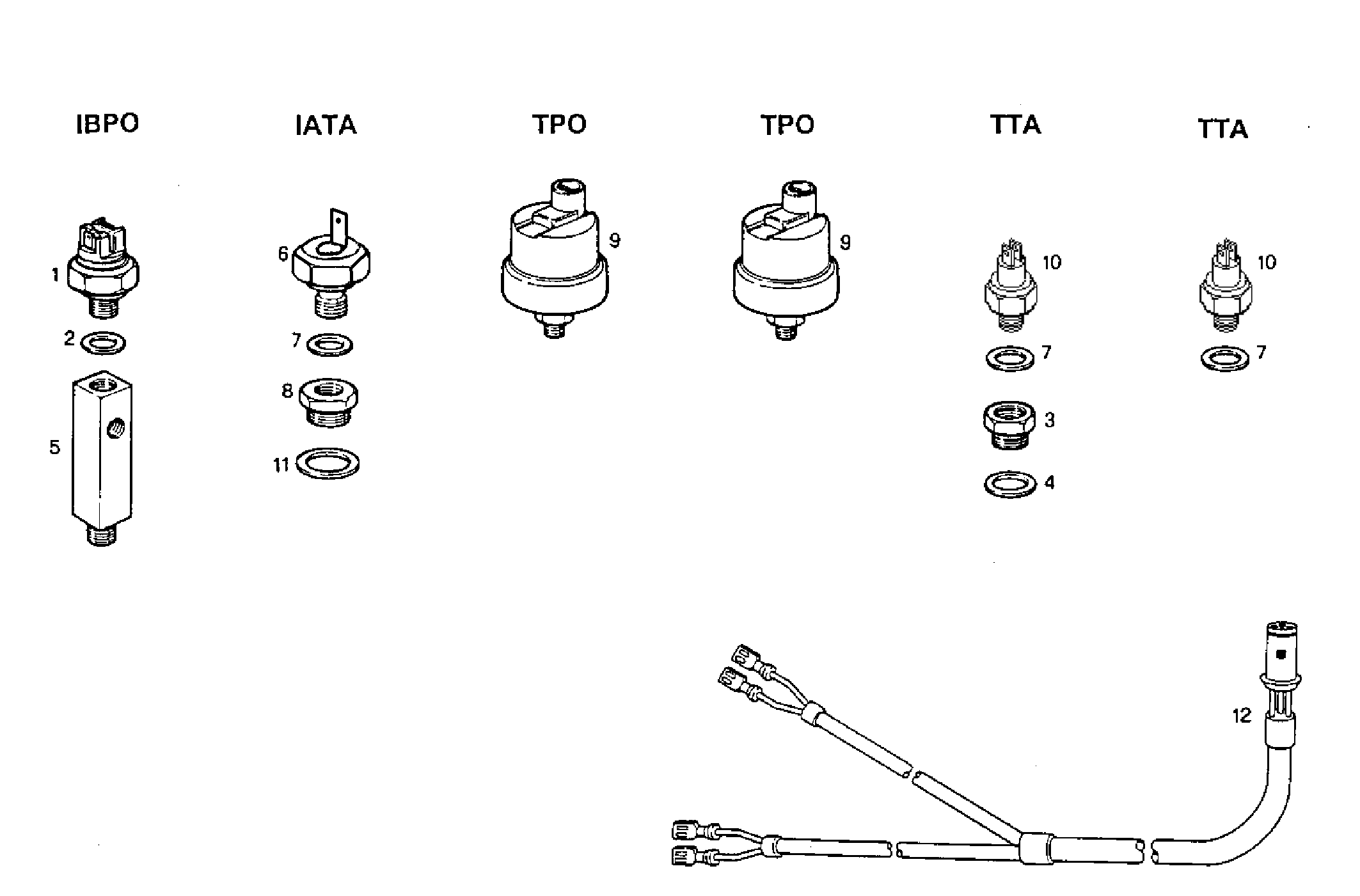

A38560013 SENDER UNITS FOR INSTRUMENTS - double 12/24V - VDO

Iveco/FPT SENDER UNITS FOR INSTRUMENTS

Item Part number Description
1 8114030 TRANSMITTER IBPO
2 10298460 SEAL GASKET Ø12X18 MM SP=1,5 MM
3 4928330 PIPE SOCKET M16X1,5/M14X1,5
4 4858609 WASHER Ø16X22 MM SP=1,5 MM
5 4929576 PIPE SOCKET
6 8019581 TRANSMITTER IATA
7 4858608 SEAL GASKET dia.14x19,5x1,5
8 4930370 PIPE SOCKET
9 8100417 TRANSMITTER TPO
10 8100418 TRANSMITTER TTA
11 98429281 SEAL GASKET Ø24X31 MM SP=1,5 MM
12 8101017 ENGINE HARNESS
