8460SM19.13A001

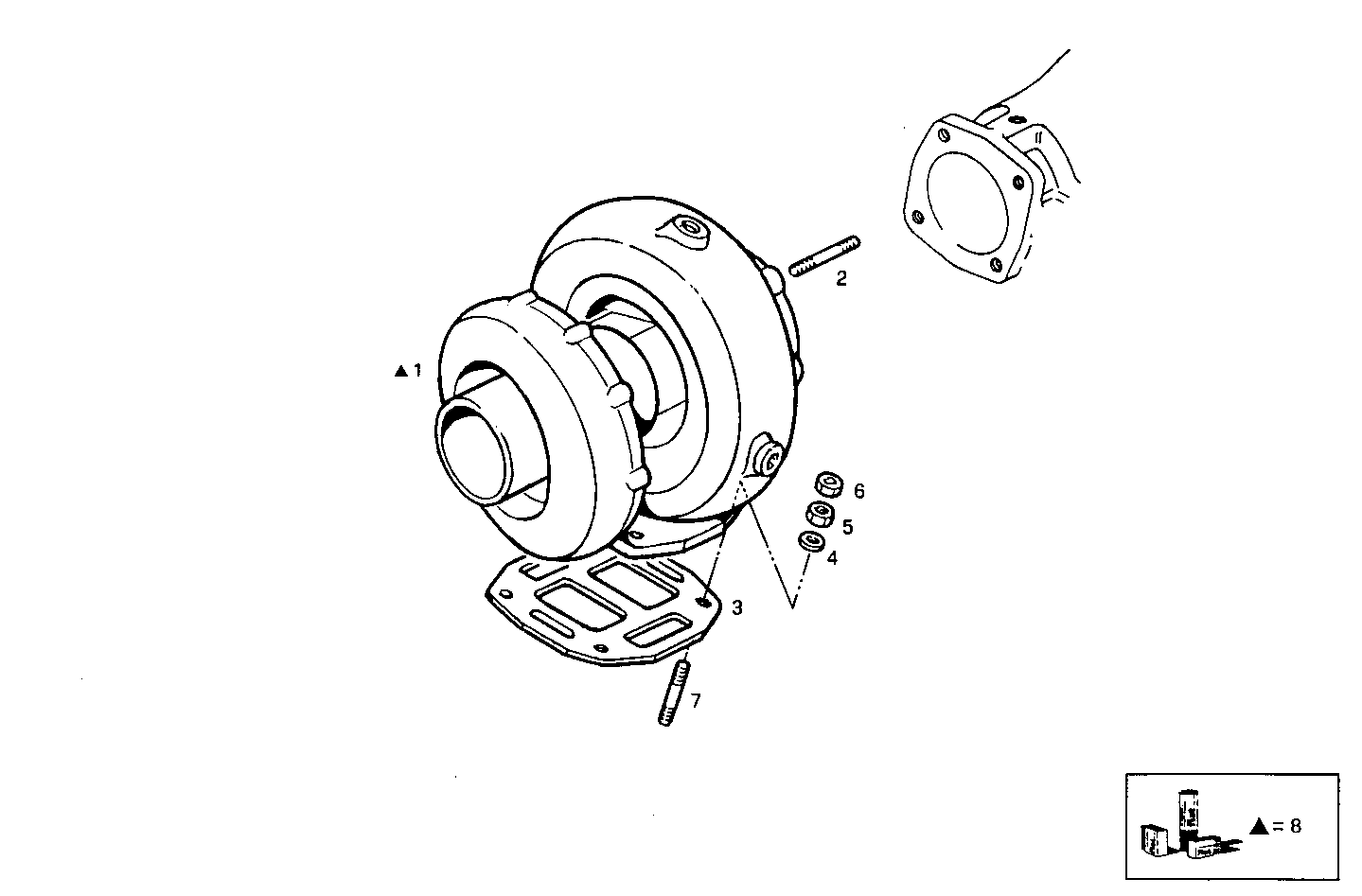

2400.038 TURBOCHARGER
Item | Part number | Description |
---|---|---|
1 | 8110129 | WATER COOL.TURBOCHARGER ASSY HOLSET |
2 | 16729424 | STUD M8X1,25X25 |
3 | 8008697 | GASKET |
4 | 17095104 | WASHER Ø10X21X2 MM |
5 | 17038221 | HEXAGON NUT M10 |
6 | 16979731 | NUT M10X1,25 |
7 | 13449824 | STUD M10X1,25X15 MM |
8 | 8009770 | OIL LINE |
