8460SM19.13A001

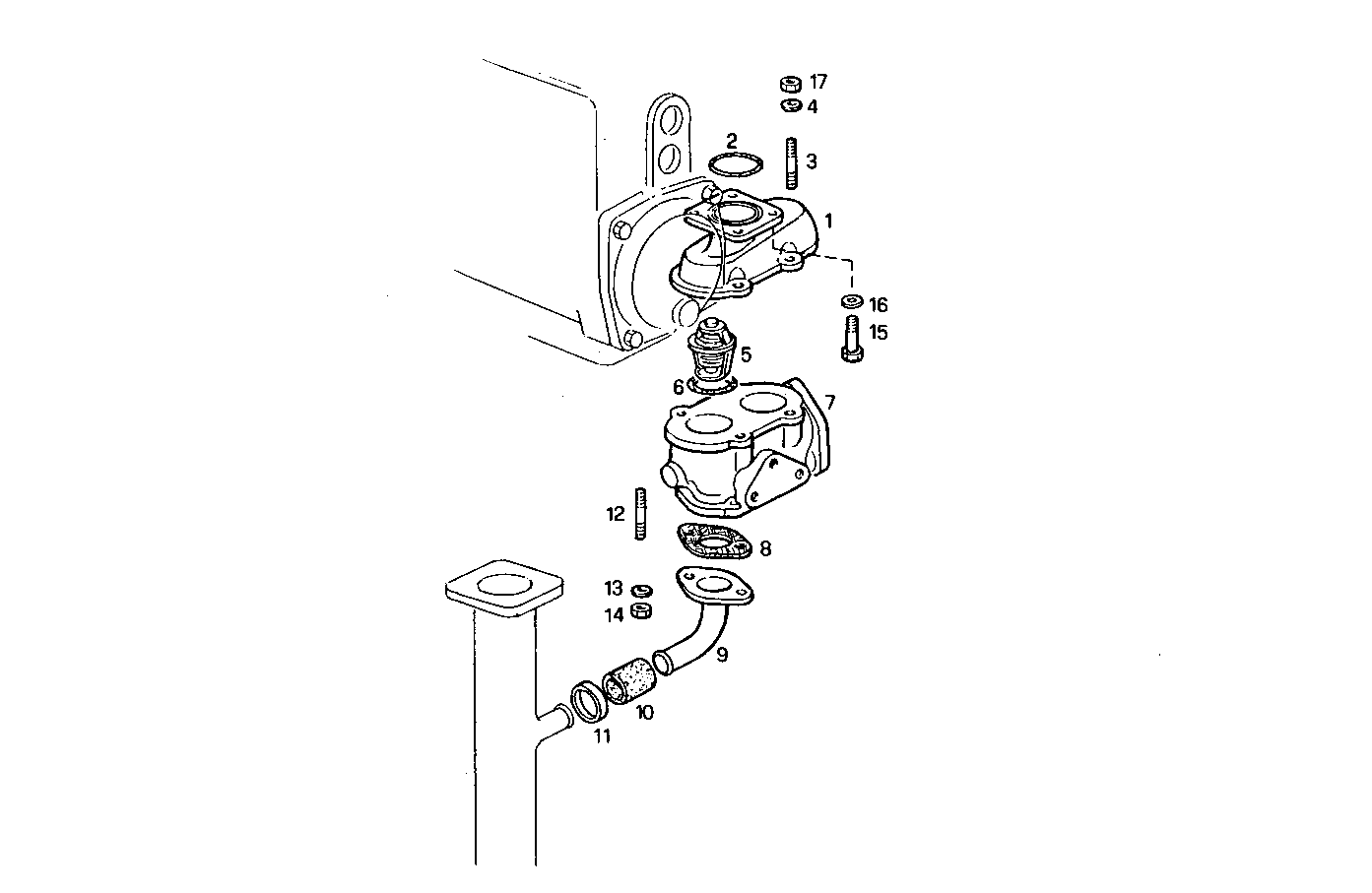

3220.038 THERMOSTAT
| Item | Part number | Description |
|---|---|---|
| 1 | 8017219 | WATER MANIFOLD |
| 2 | 17290781 | O-RING Ø78,97X3,53 MM |
| 3 | 13546621 | STUD M10X1,25X20X35 MM |
| 4 | 17095104 | WASHER Ø10X21X2 MM |
| 5 | 98439348 | THERMOSTAT |
| 6 | 98465113 | O-RING Ø60 MM |
| 7 | 61319248 | THERMOSTAT BODY |
| 8 | 98438824 | FLAT ENGINE GASKET |
| 9 | 8007710 | WATER PIPE |
| 10 | 8007804 | RUBBER SLEEVE WATER |
| 11 | 17764793 | CLIP Ø32/50 MM |
| 12 | 16746624 | STUD M8X20 MM (8.8) |
| 13 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 14 | 17037931 | HEXAGON NUT M8X1,25 |
| 15 | 16605734 | HEXAGON BOLT M8X30 MM |
| 16 | 17094914 | WASHER 8x16 |
| 17 | 17038221 | HEXAGON NUT M10 |
