8460SM19.13A001

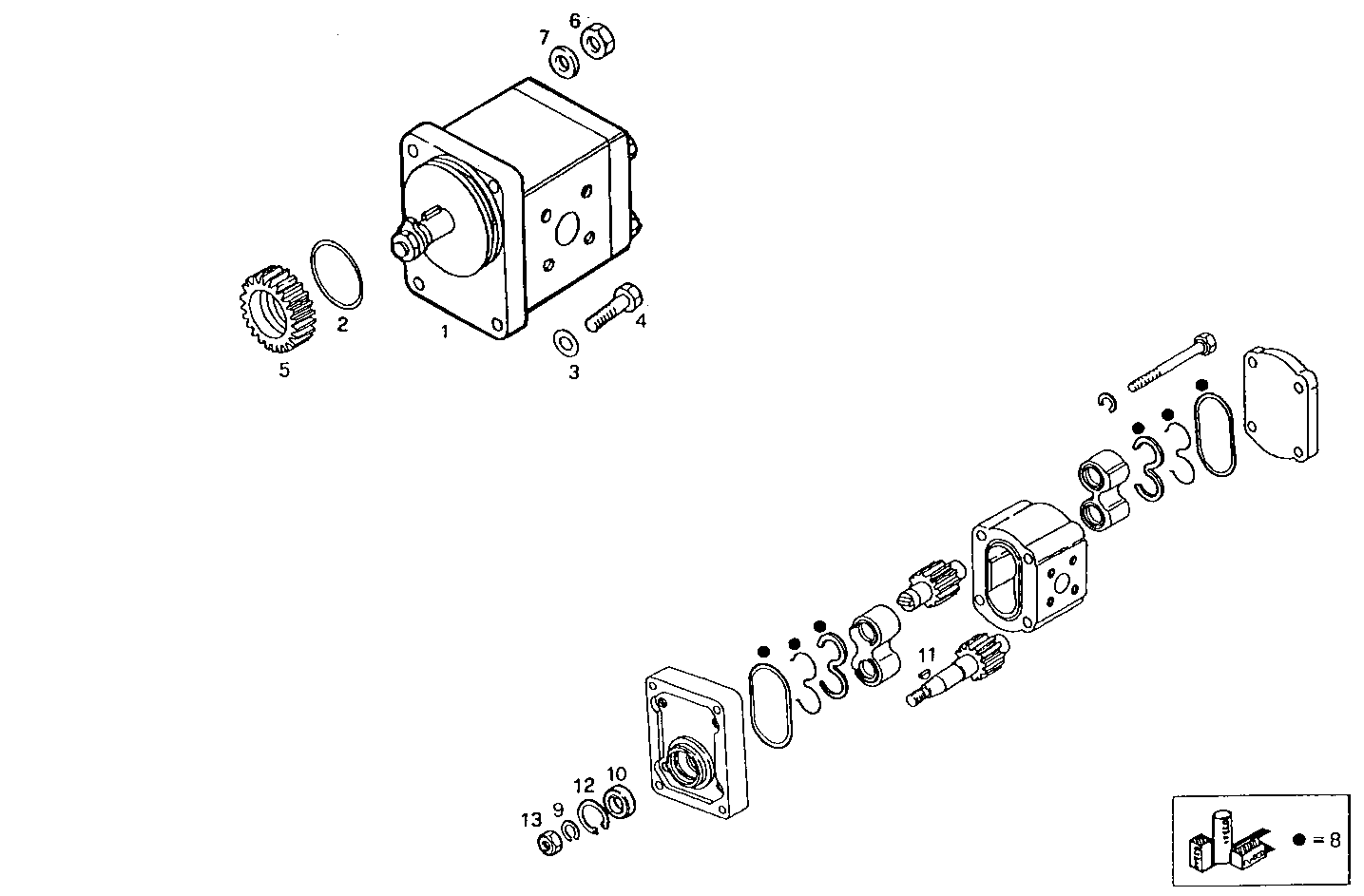

4220.017 POWER STEERING PUMP
Item | Part number | Description |
---|---|---|
1 | 4858101 | GEAR PUMP ASSY BOSCH |
2 | 61318654 | O-RING |
3 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
4 | 16605824 | HEXAGON BOLT M8X35 MM |
5 | 61318498 | PINION |
6 | 17038521 | HEXAGON NUT M12X1,5 |
7 | 17800674 | SPRING WASHER Ø13X24 MM |
8 | 8124252 | KIT-HYDRAULIC PUMP |
9 | 79058503 | WASHER |
10 | 93160143 | RADIAL SEAL Ø17X30 MM |
11 | 17220820 | KEY 3X5 MM |
12 | 7984179 | CIRCLIP |
13 | 7984181 | NUT M12X1,5 |
