8460SM22.12

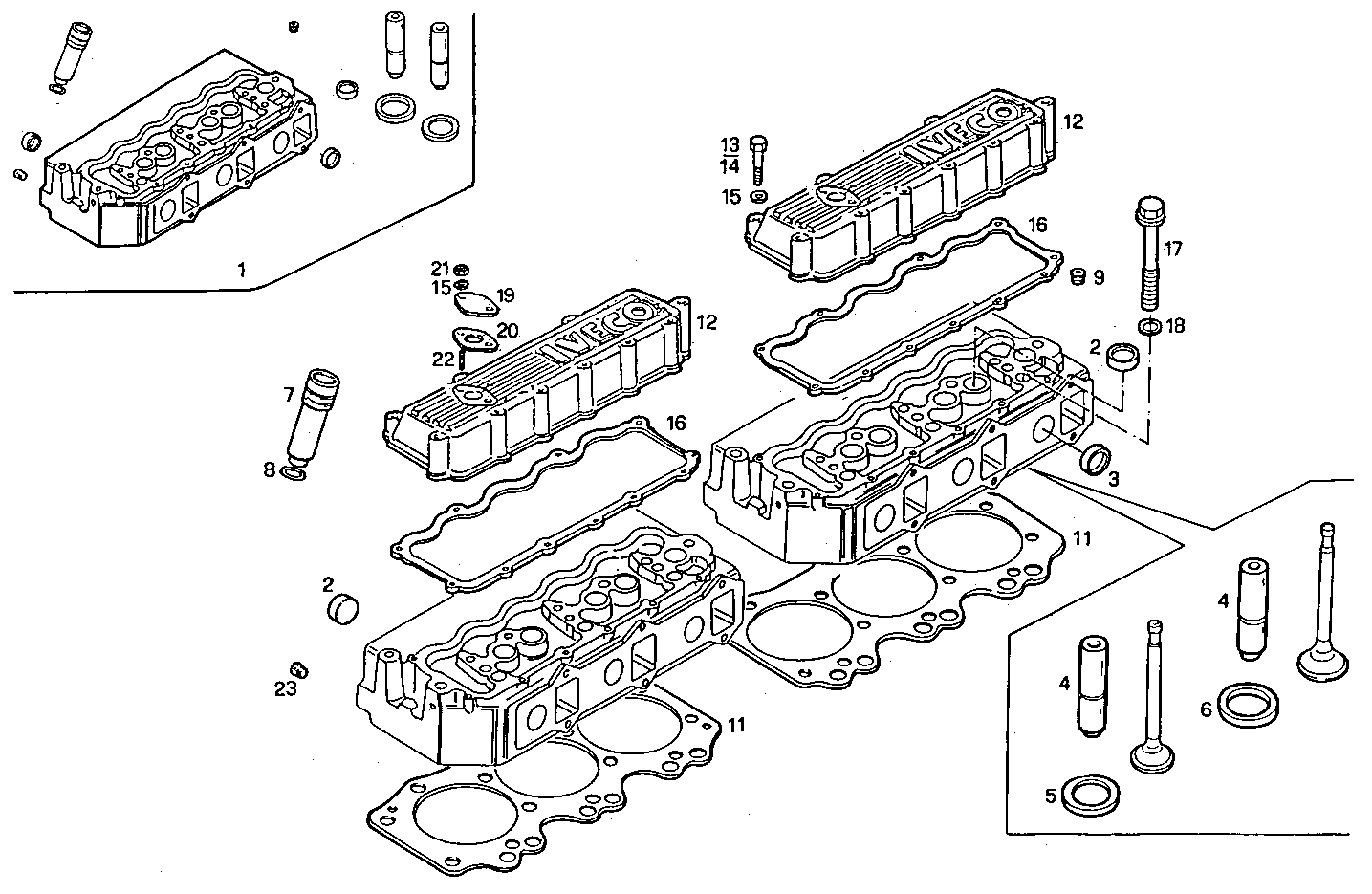

0600.089/01 CYLINDER HEAD
| Item | Part number | Description |
|---|---|---|
| 1 | 61320064 | CYLINDER HEAD ASSY |
| 2 | 16990870 | LOCK PLUG Ø28 MM |
| 3 | 16991070 | LOCK PLUG Ø32 MM |
| 4 | 61585072 | VALVE GUIDE |
| 5 | 61315085 | VALVE SEAT STD. EXHAUST |
| 6 | 61315368 | VALVE SEAT STD. INTAKE |
| 7 | 61315088 | NOZZLE HOLDER SEAT |
| 8 | 61582822 | O-RING |
| 9 | 61584412 | LOCK PLUG |
| 11 | 61319085 | CYL.HEAD GASKET |
| 12 | 61316819 | CYL. HEAD COVER |
| 13 | 16606224 | HEXAGON BOLT M8X55 MM |
| 14 | 16046724 | SCREW |
| 15 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 16 | 61319394 | HEAD COVER GASKET |
| 17 | 4815557 | CYL.HEAD STUD |
| 18 | 61315656 | WASHER |
| 19 | 8113444 | COVER |
| 20 | 8009901 | GASKET |
| 21 | 17037931 | HEXAGON NUT M8X1,25 |
| 22 | 16746624 | STUD M8X20 MM (8.8) |
| 23 | 14326101 | THREADED PLUG M8X1,25 |
