8460SM22.12

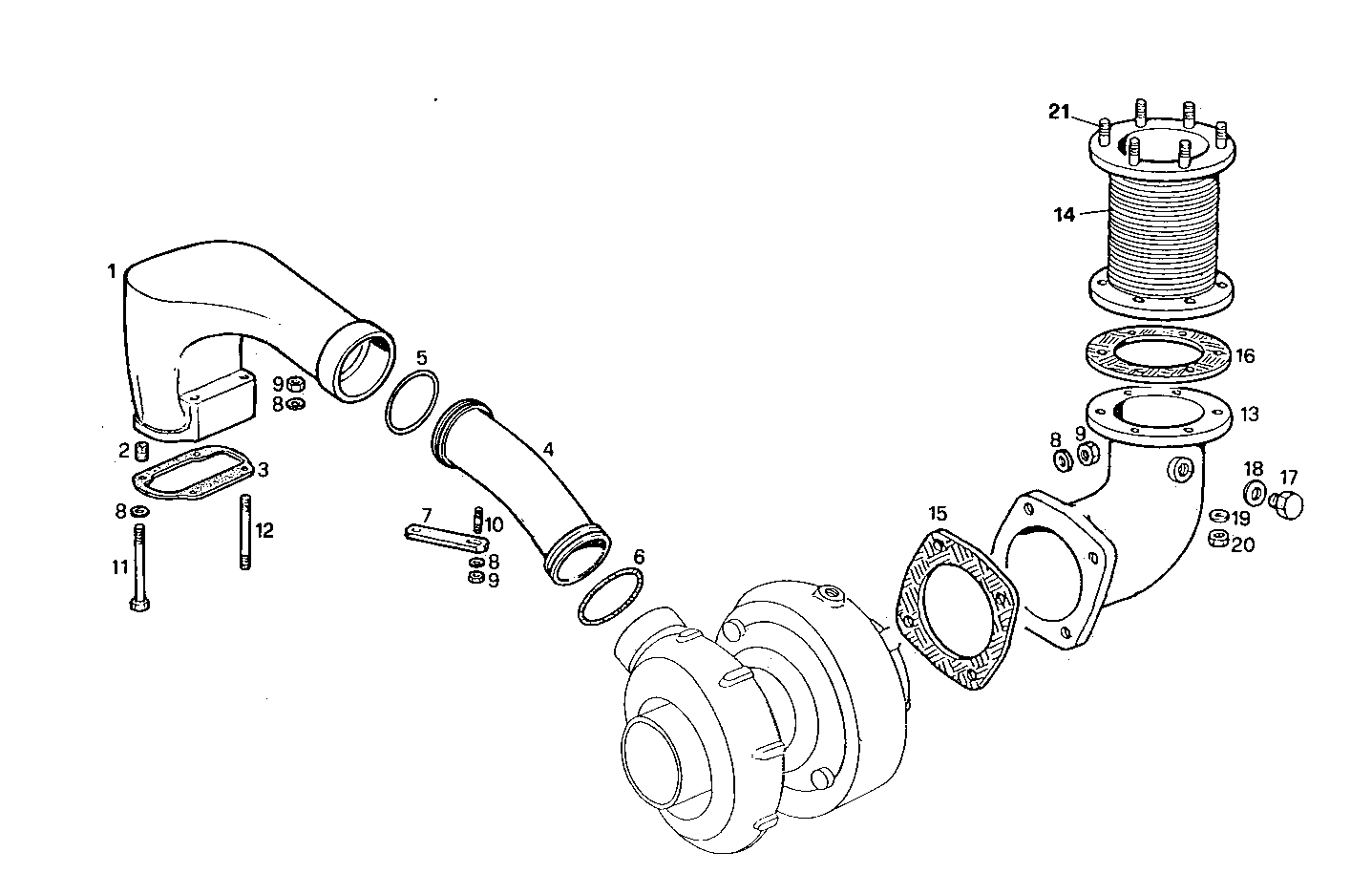

2420.096 SUPERCHARGING LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 8014542 | AIR MANIFOLD |
| 2 | 17873271 | THREADED INSERT M8 |
| 3 | 61318565 | FLAT ENGINE GASKET |
| 4 | 8014437 | AIR MANIFOLD |
| 5 | 17290581 | O-RING Ø72,63X3,53 MM |
| 6 | 17296181 | O-RING Ø59,69X5,33 MM |
| 7 | 8006782 | RETAINER |
| 8 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 9 | 17037931 | HEXAGON NUT M8X1,25 |
| 10 | 16729224 | STUD M8X16 MM |
| 11 | 16606624 | HEXAGON BOLT M8X80 MM |
| 12 | 16747424 | STUD M8X16X60 |
| 13 | 8013472 | EXHAUST ELBOW |
| 14 | 8101671 | EXHAUST BELLOWS |
| 15 | 8111833 | GASKET |
| 16 | 8009600 | GASKET |
| 17 | 16992240 | THREADED PLUG M12X1,5 |
| 18 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
| 19 | 17090174 | SPRING WASHER Ø10X20 MM |
| 20 | 17038121 | HEXAGON NUT M10 |
| 21 | 13449524 | STUD M10X1,25X15X25 |
