8460SRC20.00

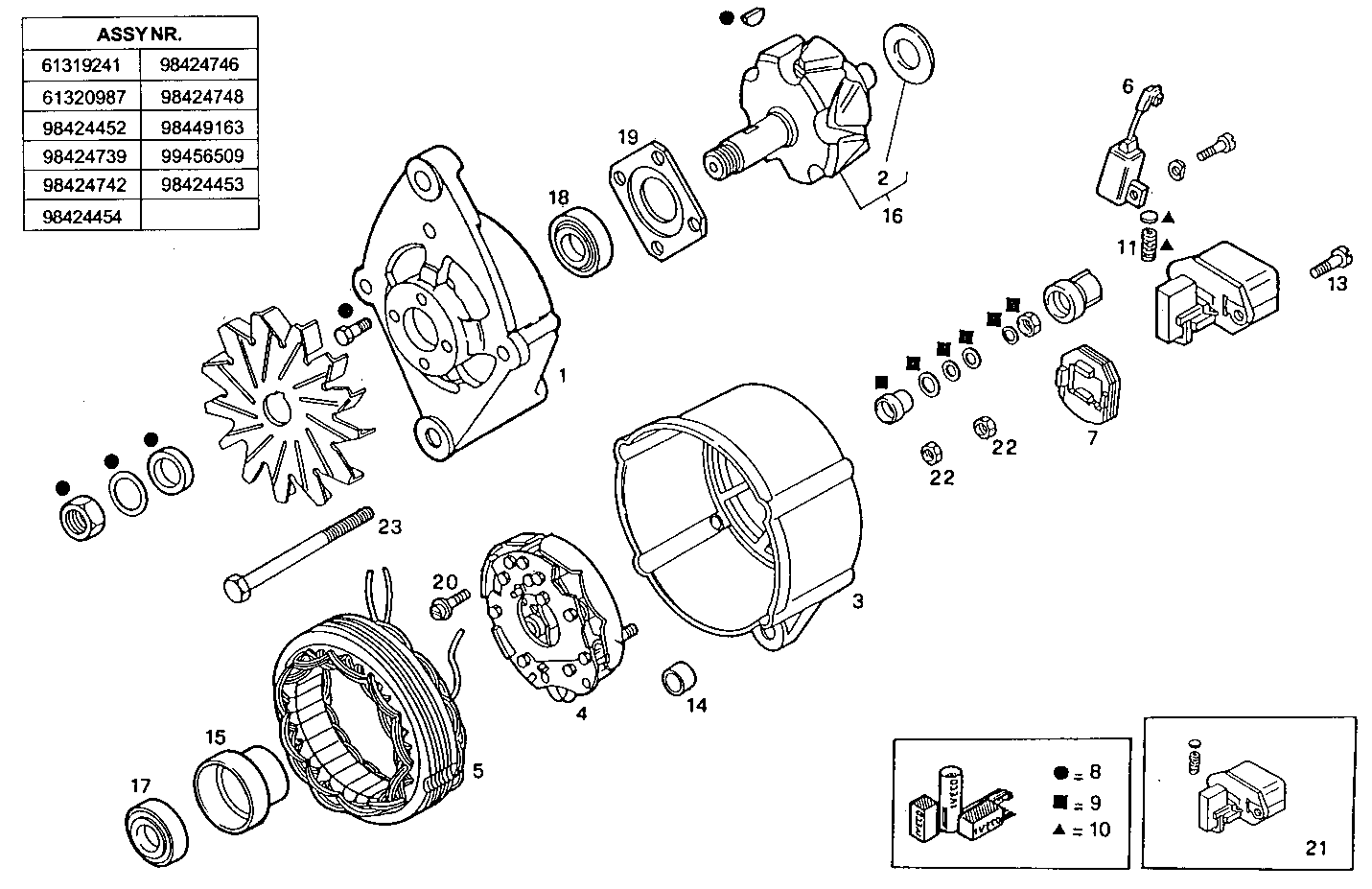

4030.042 GENERATOR (COMPONENTS)
| Item | Part number | Description |
|---|---|---|
| 1 | 93160275 | GENERATOR SUPPORT |
| 2 | 93160277 | RING |
| 3 | 93160278 | GENERATOR SUPPORT ASSY |
| 4 | 93160252 | RECTIFIER |
| 5 | 93160281 | GENERATOR STATOR |
| 6 | 79074709 | CONDENSER SP=0,5 MM |
| 7 | 93160245 | GASKET M6X12 MM |
| 8 | 1307188 | KIT-GENERATOR KIT |
| 9 | 79074707 | KIT-GENERATOR |
| 10 | 93160236 | CARBON BRUSHES M6X12 MM |
| 11 | 42491524 | SPRING |
| 13 | 93160239 | SCREW |
| 14 | 93160280 | BUSH |
| 15 | 93160279 | CENTERING RING |
| 16 | 93160276 | GENERATOR ROTOR ASSY |
| 17 | 1905280 | BALL BEARING |
| 18 | 1905283 | ENGINE BEARINGS Ø18,2 MM |
| 19 | 93160254 | PLATE |
| 20 | 79093985 | SCREW |
| 21 | 93158421 | VOLTAGE REGULATOR ASSY 24V - BOSCH |
| 22 | 17037821 | HEXAGON NUT M6X1 |
| 23 | 93160286 | SCREW |
