8460SRC20.10

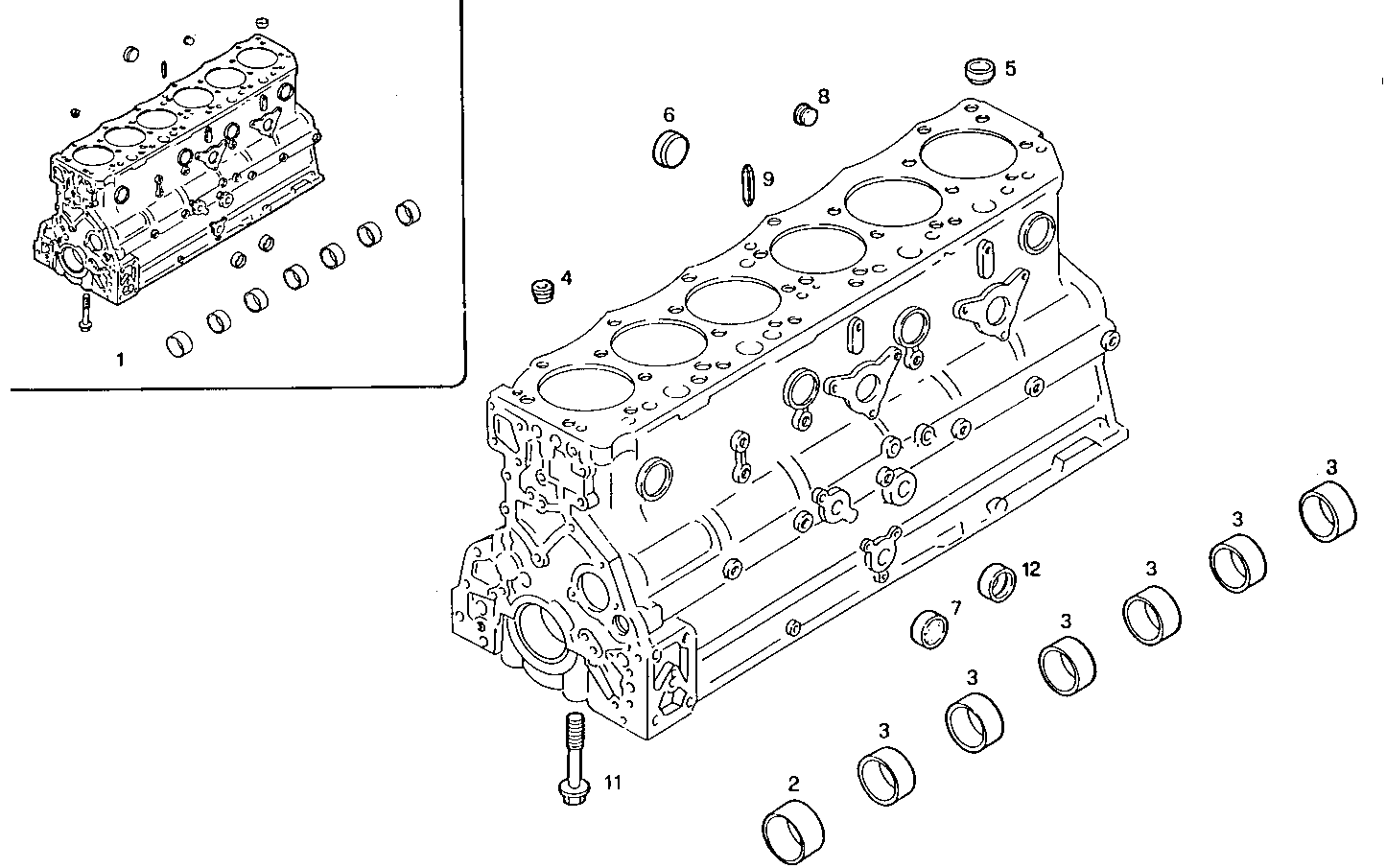

0400.104/01 CRANKCASE
Item | Part number | Description |
---|---|---|
1 | 61318205 | CRANKCASE ASSY |
2 | 61317181 | CAMSHAFT BEARING |
3 | 61317180 | CAMSHAFT BEARING |
4 | 16997411 | THREADED PLUG M16X1,5 |
5 | 16991170 | LOCK PLUG Ø36 MM |
6 | 16991270 | LOCK PLUG Ø40 MM |
7 | 16991370 | LOCK PLUG Ø45 MM |
8 | 61319492 | LOCK PLUG M12X1,5 |
9 | 14612670 | DOWEL PIN Ø12,5 MM |
11 | 61315554 | CRAHKSFT.BEAR.STUD |
12 | 16991470 | LOCK PLUG Ø50 MM |
