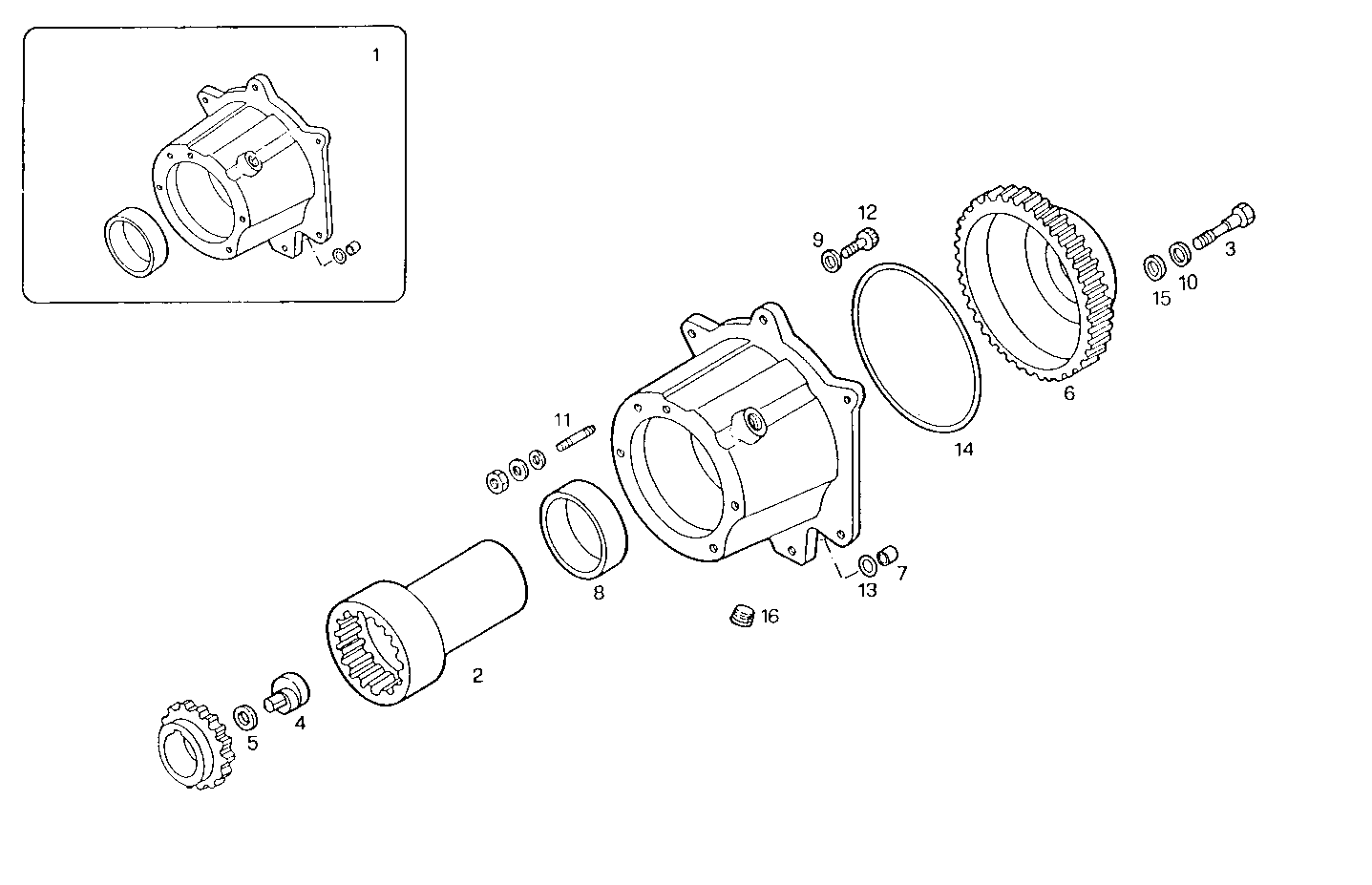

Item |
Part number |
Description |
1 |
61318107 |
SUPPORT ASSY |
2 |
61317601 |
INJECT.PUMP SPIND |
3 |
15540934 |
SCREW M12X1,25X55 |
4 |
61317603 |
RETAINING CAM |
5 |
61316640 |
CORRUGATED WASHER |
6 |
61317602 |
INJ.PUMP DRIV.GEA |
7 |
61584413 |
CENTERING BUSH |
8 |
61585959 |
BUSH |
9 |
17089574 |
WASHER Ø8X16 MM |
10 |
17091174 |
SPRING WASHER Ø12X24 MM |
11 |
13449824 |
STUD M10X1,25X15 MM |
12 |
16690624 |
CYLIND-HEAD SCREW M8X25 MM |
13 |
17277881 |
O-RING Ø7,65 MM SP=1,78 MM |
14 |
17286281 |
O-RING Ø125,6 MM SP=2,62 MM |
15 |
4837398 |
WASHER Ø12X28 MM SP=4 MM |
16 |
14326101 |
THREADED PLUG M8X1,25 |
