8460SRC20.10

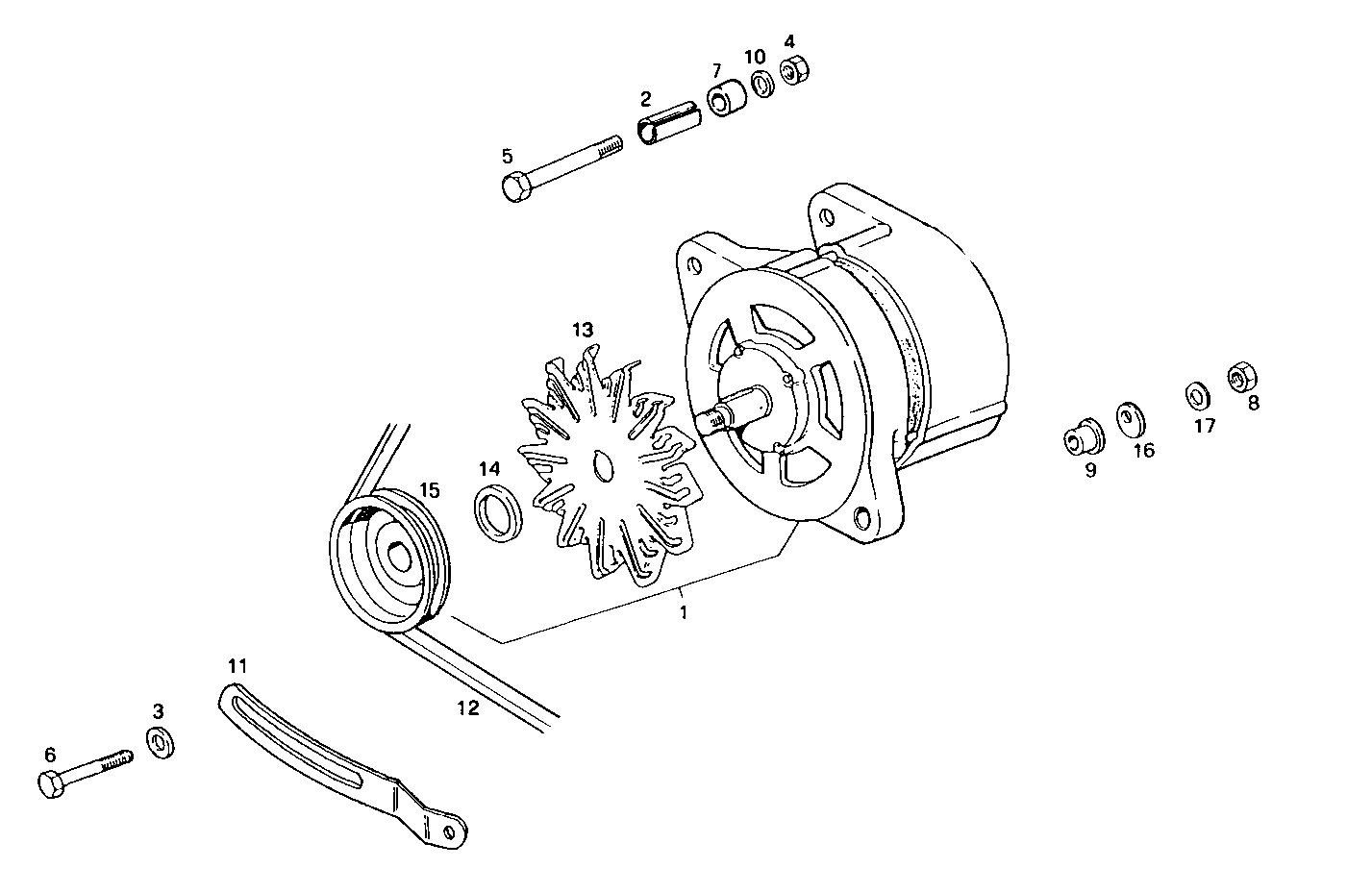

4000.072 GENERATOR
| Item | Part number | Description |
|---|---|---|
| 1 | 98424739 | ALTERNATOR ASSY |
| 2 | 61319234 | DOWEL PIN |
| 3 | 17097124 | WASHER 10x21 |
| 4 | 13680121 | NUT M10X1,25 |
| 5 | 61319235 | HEXAGON BOLT |
| 6 | 11288024 | HEXAGON BOLT M10X1,25X60 MM |
| 7 | 61321292 | SPACING BAR |
| 8 | 17038221 | HEXAGON NUT M10 |
| 9 | 61319233 | SPACING BAR |
| 10 | 17095114 | WASHER Ø10X21 MM |
| 11 | 61321290 | BELT TENSIONER |
| 12 | 98465813 | V-BELT L=975 MM |
| 13 | 4757196 | GENERATOR FAN BOSCH |
| 14 | 98454596 | SPACING BAR BOSCH |
| 15 | 98418920 | GENERATOR PULLEY VALEO |
| 16 | 61319227 | WASHER |
| 17 | 17090274 | WASHER Ø10X20 MM |
