8460SRC20.20

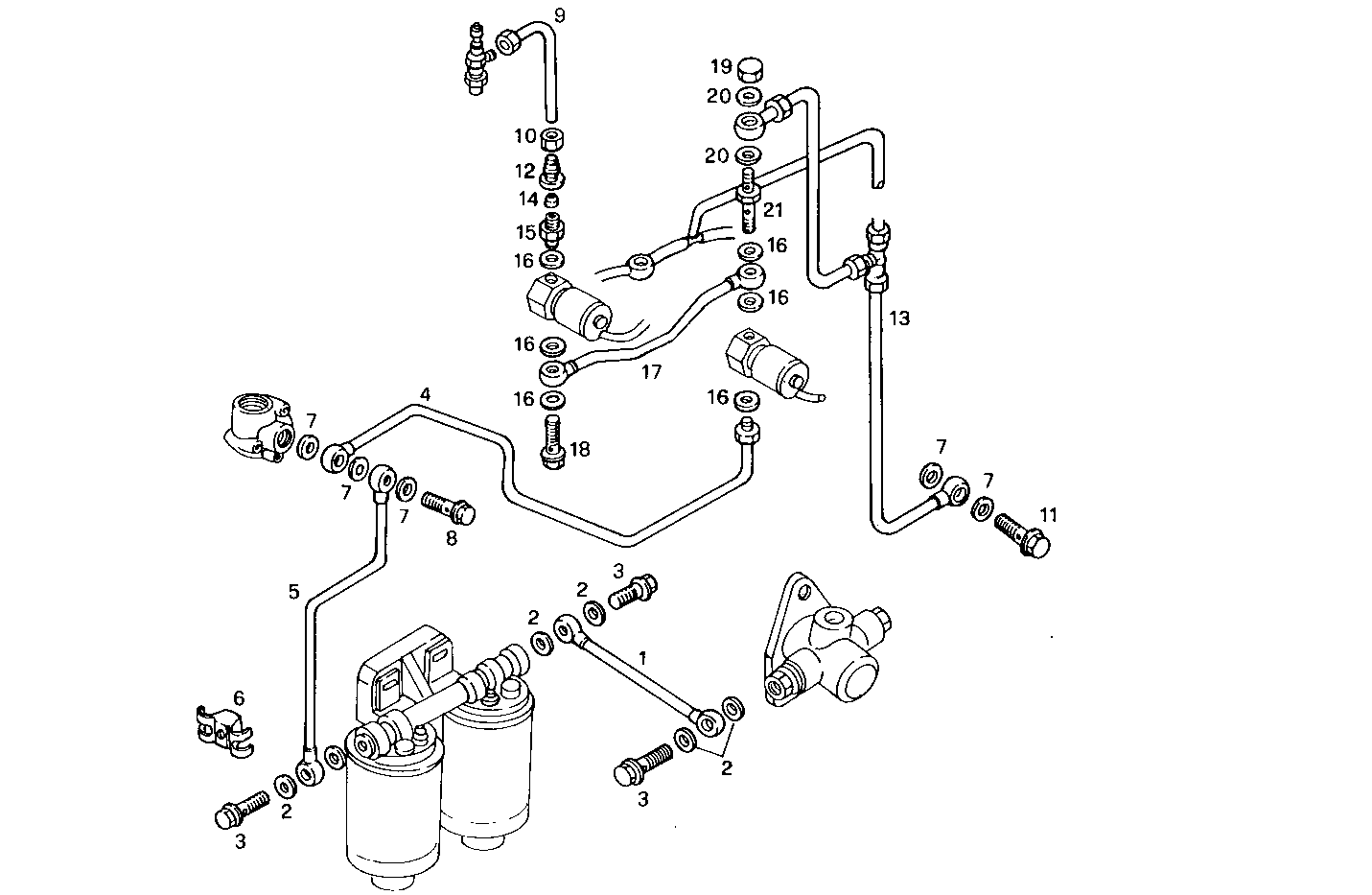

2030.128 FUEL LINES

Iveco/FPT FUEL LINES

Item Part number Description
1 61320154 FUEL LINE
2 98474308 SEAL GASKET Ø14X22 MM
3 4864083 SCREW CONNECTOR M14X1,5X30 MM
4 61321657 FUEL LINE
5 61320155 FUEL LINE
6 4863368 SPRING CLAMP
7 4858608 SEAL GASKET dia.14x19,5x1,5
8 61320123 SCREW CONNECTOR
9 61321660 FUEL LINE
10 16506611 UNION NUT
11 10184314 SCREW CONNECTOR
12 16512240 BUSH Ø6 MM SP=1 MM
13 61321653 FUEL LINE
14 16509940 CLAMPING WASHER Ø6 MM
15 500302990 THREADED UNION M10X1 - M12X1,5
16 98474305 WASHER Ø10X17 MM SP=2,3
17 61321661 FUEL LINE
18 4864079 SCREW CONNECTOR M10X1
19 98469675 THREADED PLUG M12X1
20 98474306 WASHER Ø12X20 MM SP=1,9 MM
21 98469450 BYPASS VALVE
