8460SRC21.00

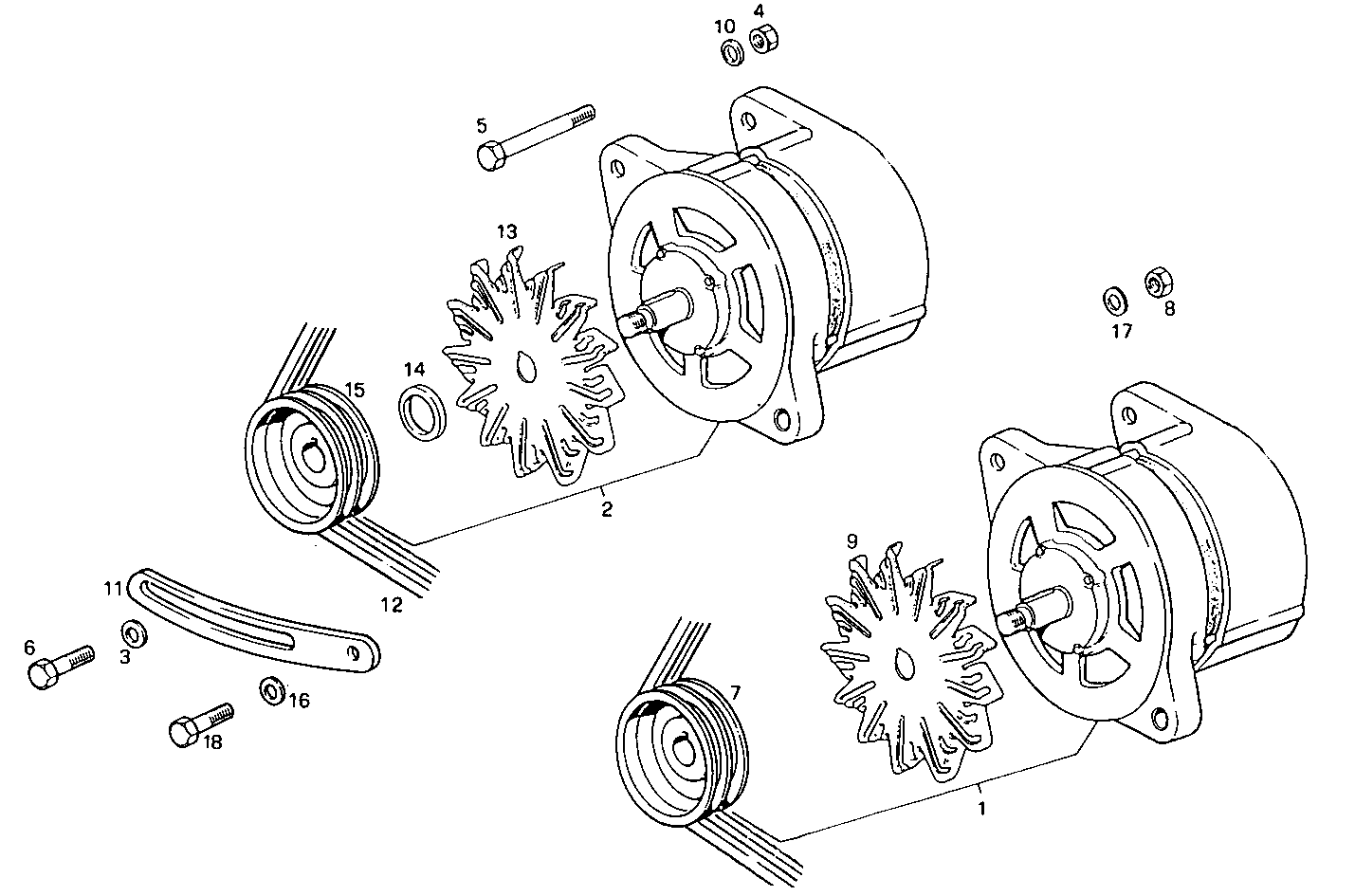

4000.092 GENERATOR
| Item | Part number | Description |
|---|---|---|
| 1 | 98417212 | ALTERNATOR ASSY MARELLI |
| 2 | 98417201 | ALTERNATOR ASSY BOSCH |
| 3 | 12616321 | WASHER |
| 4 | 13680221 | HEXAGON NUT M12X1,25 |
| 5 | 15541824 | SCREW M12X1,25X120 MM |
| 6 | 15970924 | HEXAGON BOLT M10X1,25X35 MM |
| 7 | 61316358 | GENERATOR PULLEY |
| 8 | 17038221 | HEXAGON NUT M10 |
| 9 | 4717026 | GENERATOR FAN MARELLI |
| 10 | 17095304 | WASHER Ø12X24 MM |
| 11 | 61317136 | BELT TENSIONER |
| 12 | 61318427 | SET OF V-BELTS KIT |
| 13 | 4470778 | GENERATOR FAN BOSCH |
| 14 | 98454596 | SPACING BAR BOSCH |
| 15 | 98454696 | GENERATOR PULLEY |
| 16 | 11194070 | WASHER Ø8X16X1,9 MM |
| 17 | 11198374 | SPRING WASHER Ø10X20 MM |
| 18 | 16607021 | SCREW |
