8460SRC21.10

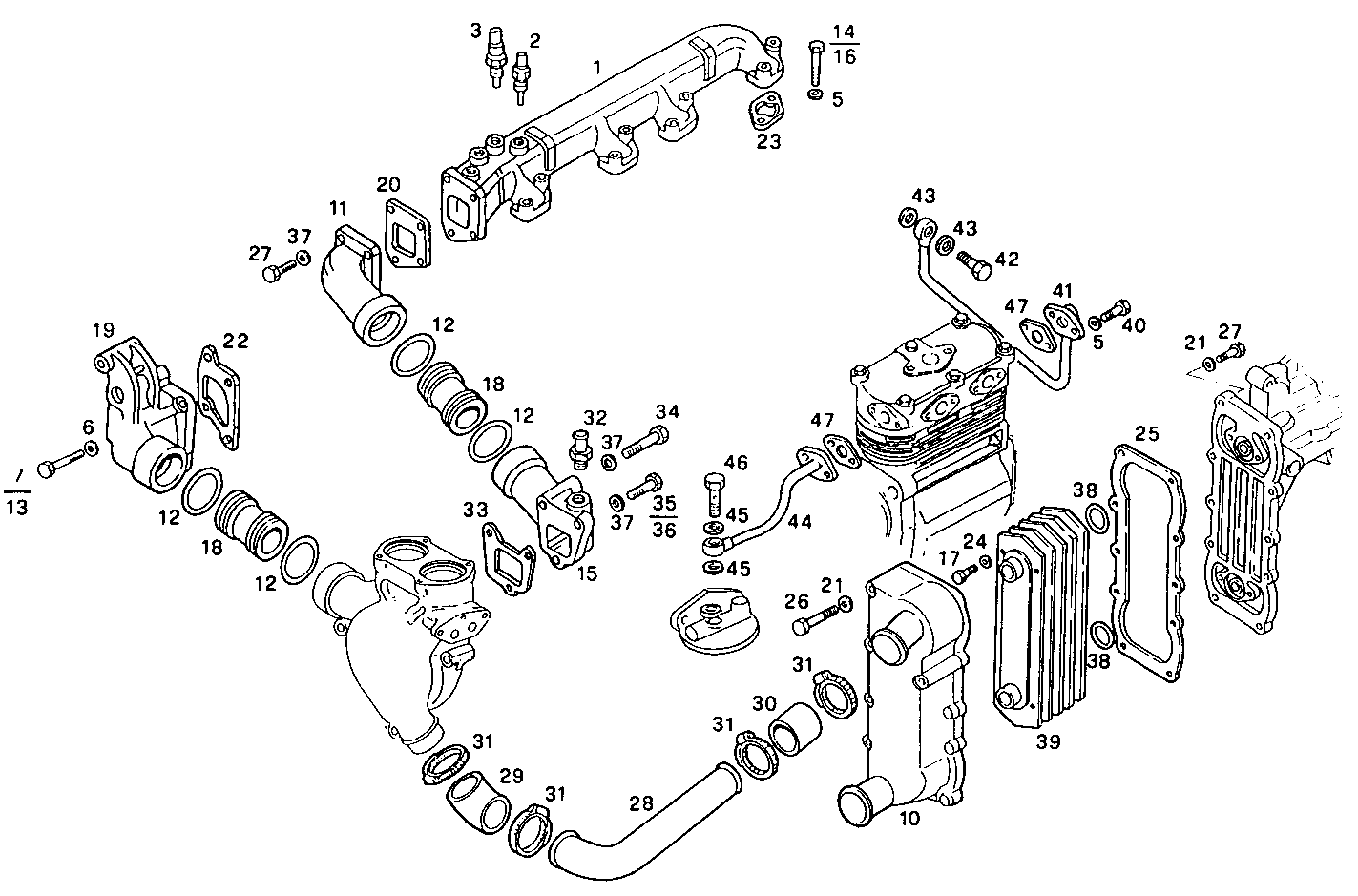

3210.176 WATER LINES

Iveco/FPT WATER LINES

Item Part number Description
1 61320821 WATER MANIFOLD
2 4857250 TRANSMITTER
3 4837951 TEMP. TRANSMITTER CEBI
5 17089574 WASHER Ø8X16 MM
6 17090274 WASHER Ø10X20 MM
7 11306921 SCREW M10X1,25X30
10 61317985 HEAT EXCHANG.COVER
11 61318769 WATER PIPE
12 17296080 O-RING Ø56,5 MM SP=5,33 MM
13 15971321 HEXAGON BOLT M10X1,25X75 MM
14 16691324 CYLIND-HEAD SCREW M8X60 MM
15 61318069 WATER PIPE
16 16690724 CYLIND-HEAD SCREW M8X30 MM
17 16043721 HEXAGON BOLT M8X28 MM
18 61317101 CONNECTOR SLEEVE
19 61317107 WATER PIPE
20 61318822 FLAT ENGINE GASKET
21 11194074 WASHER Ø8,4 MM
22 61318820 FLAT ENGINE GASKET
23 61319050 FLAT ENGINE GASKET
24 98474303 WASHER Ø8X14 MM SP=2,3 MM
25 61318847 FLAT ENGINE GASKET
26 16606924 SCREW M8X110
27 16605824 HEXAGON BOLT M8X35 MM
28 61317308 WATER PIPE
29 61321191 WATER HOSE Ø60 MM
30 98438633 WATER HOSE dia. 60 - L. 70
31 99443680 CLIP Ø65-75 MM
32 4633506 THREADED UNION M22X1,5
33 61318850 FLAT ENGINE GASKET
34 16606624 HEXAGON BOLT M8X80 MM
35 16606224 HEXAGON BOLT M8X55 MM
36 16605734 HEXAGON BOLT M8X30 MM
37 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
38 17283581 O-RING Ø44,12 MM SP=2,62 MM
39 61319539 OIL COOLER
40 16043521 SCREW M8X22
41 61320022 WATER PIPE
42 4864085 SCREW CONNECTOR M18X1,5
43 98474311 SEAL GASKET Ø18X26 MM
44 61320023 WATER PIPE
45 10257460 SEAL GASKET Ø20X26 MM SP=1,5 MM [up to ...]
46 10182617 BANJO BOLT M20X1,5
47 61319097 FLAT ENGINE GASKET
