8460SRC21.10

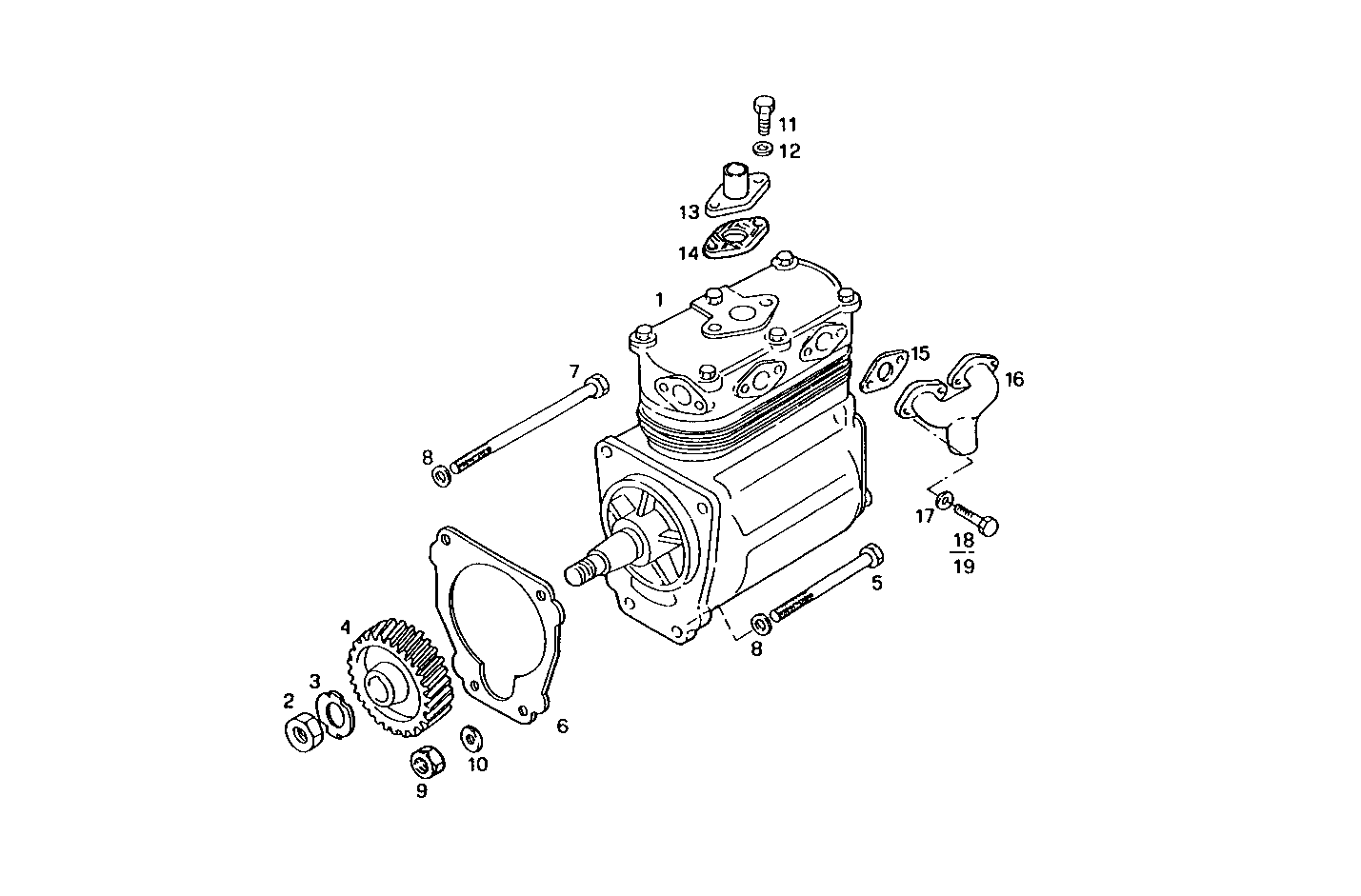

3800.023 AIR COMPRESSOR

Iveco/FPT AIR COMPRESSOR

Item Part number Description
1 500310903 AIR COMPRESSOR ASSY KNORR
2 99471892 HEXAGON NUT
3 4709364 LOCKING PLATE
4 61316311 COMP. DRIVE GEAR
5 15972124 HEXAGON BOLT M10X115 MM
6 61319045 FLAT ENGINE GASKET
7 14308224 CYLIND-HEAD SCREW M10X1,25X65 MM
8 17090274 WASHER Ø10X20 MM
9 17038221 HEXAGON NUT M10
10 17095125 WASHER
11 16605524 HEXAGON BOLT M8X20 MM
12 11198074 SPRING WASHER Ø8X15 MM
13 61320308 SUCTION LINE
14 500350475 FLAT ENGINE GASKET Ø50 MM
15 61319097 FLAT ENGINE GASKET
16 61320861 EXHAUST ELBOW
17 17798274 SPRING WASHER Ø8,2X14,9 MM
18 16605824 HEXAGON BOLT M8X35 MM
19 16690624 CYLIND-HEAD SCREW M8X25 MM
