8460SRC21.10

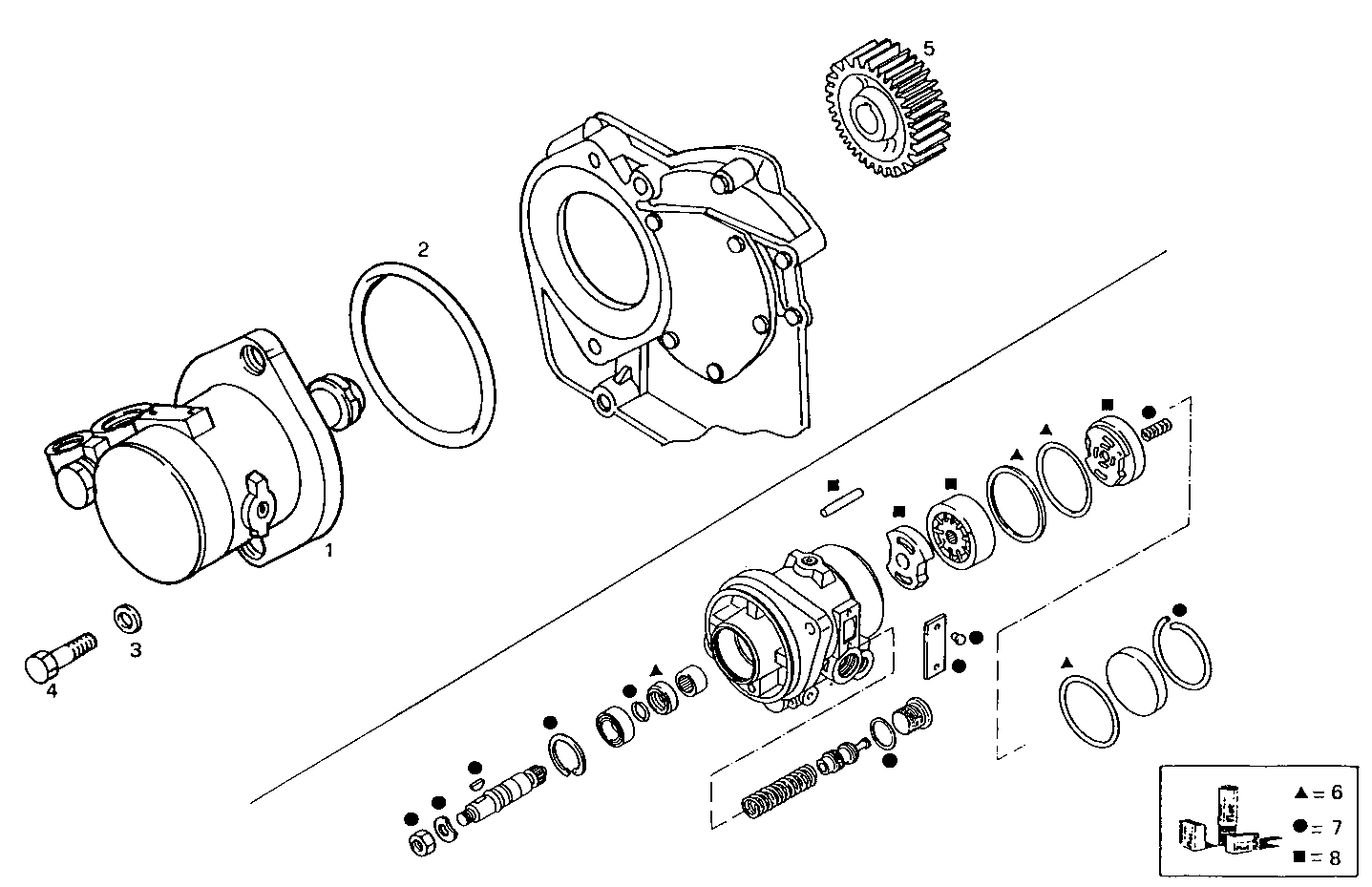

4220.009 POWER STEERING PUMP
Item | Part number | Description |
---|---|---|
1 | 4842351 | OIL PUMP-STEERING ASSY |
2 | 4862313 | O-RING |
3 | 17798374 | SPRING WASHER Ø10,2X18,1 MM |
4 | 11306921 | SCREW M10X1,25X30 |
5 | 61317599 | DRIVE GEAR |
6 | 42486512 | KIT-HYDRAULIC PUMP |
7 | 93161355 | KIT-HYDRAULIC PUMP |
8 | 93161356 | KIT-HYDROST.PUMP |
