8460SRC21.20A001

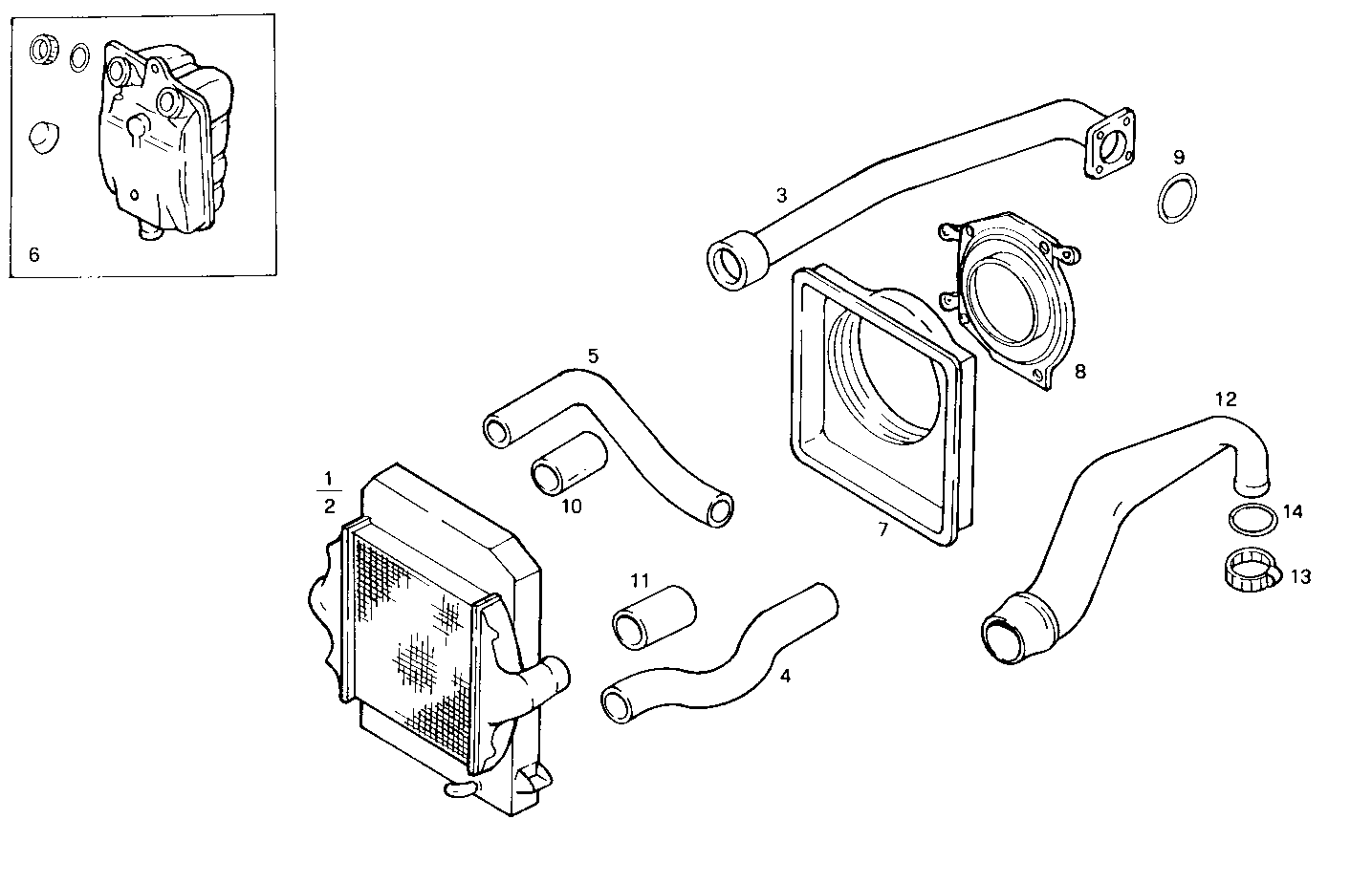

8600.058 ACCESSORIES
| Item | Part number | Description |
|---|---|---|
| 1 | 41016236 | WATER RADIATOR ASSY BEHR |
| 2 | 41012596 | WATER RADIATOR ASSY VALEO |
| 3 | 8139630 | PIPE |
| 4 | 8160066 | WATER HOSE |
| 5 | 8160067 | WATER HOSE |
| 6 | 8168290 | EXPANSION TANK ASSY |
| 7 | 8165852 | FAN COWLING |
| 8 | 8165854 | FAN COWLING ASSY |
| 9 | 17291481 | O-RING Ø101,19 MM SP=3,53 |
| 10 | 41012610 | RUBBER SLEEVE AIR |
| 11 | 41026109 | RUBBER SLEEVE AIR |
| 12 | 41019544 | AIR MANIFOLD |
| 13 | 4800661 | CLIP Ø 75 mm. |
| 14 | 17284681 | O-RING Ø61,6 MM SP=2,62 MM |
