8460SRC21.20A001

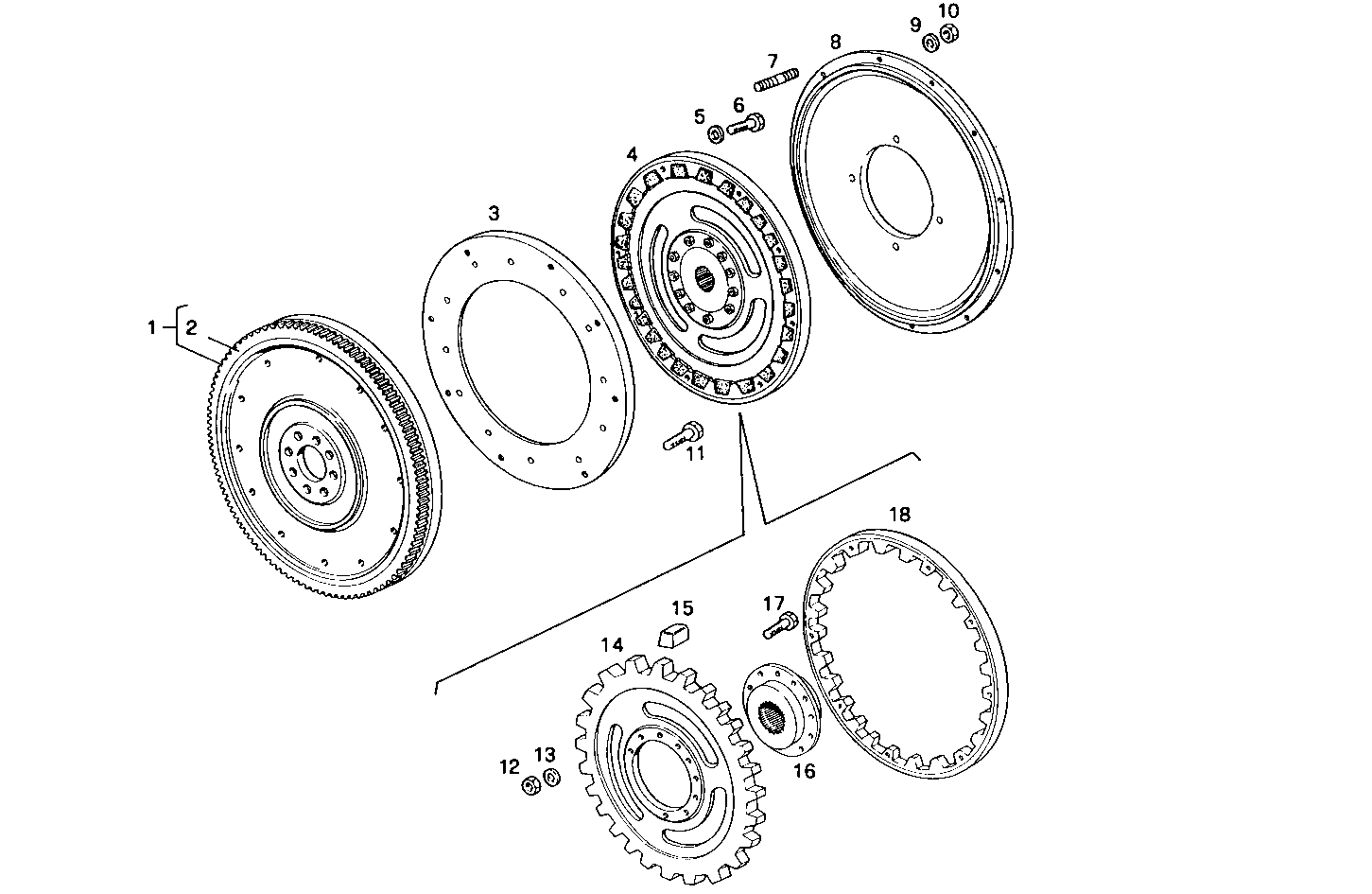

A13060027 FLYWHEEL ARRANGED FOR TRANSMISSION - HYDROMATIK A4V 250
| Item | Part number | Description |
|---|---|---|
| 1 | 8031290 | FLYWHEEL |
| 2 | 4672334 | RING GEAR [up to 08-97] |
| 3 | 8105258 | FLANGE |
| 4 | 8023890 | FLEXIBLE COUPLING |
| 5 | 17095314 | WASHER Ø12X24 MM [up to ...] |
| 6 | 15541221 | HEXAGON BOLT M12X1,25X70 MM [up to 565948] |
| 7 | 17368024 | STUD M10X25X30 |
| 8 | 8023889 | FLANGE |
| 9 | 17090174 | SPRING WASHER Ø10X20 MM |
| 10 | 17038221 | HEXAGON NUT M10 |
| 11 | 16326424 | SCREW M12X1,25X40 MM |
| 12 | 17038421 | HEXAGON NUT M12 (8) |
| 14 | 8023499 | FLEXIBLE COUPLING |
| 15 | 4932462 | DOWEL |
| 16 | 8023891 | HUB |
| 17 | 16610024 | SCREW M12X35 |
| 18 | 8023498 | RING |
