8460SRC21.20A002

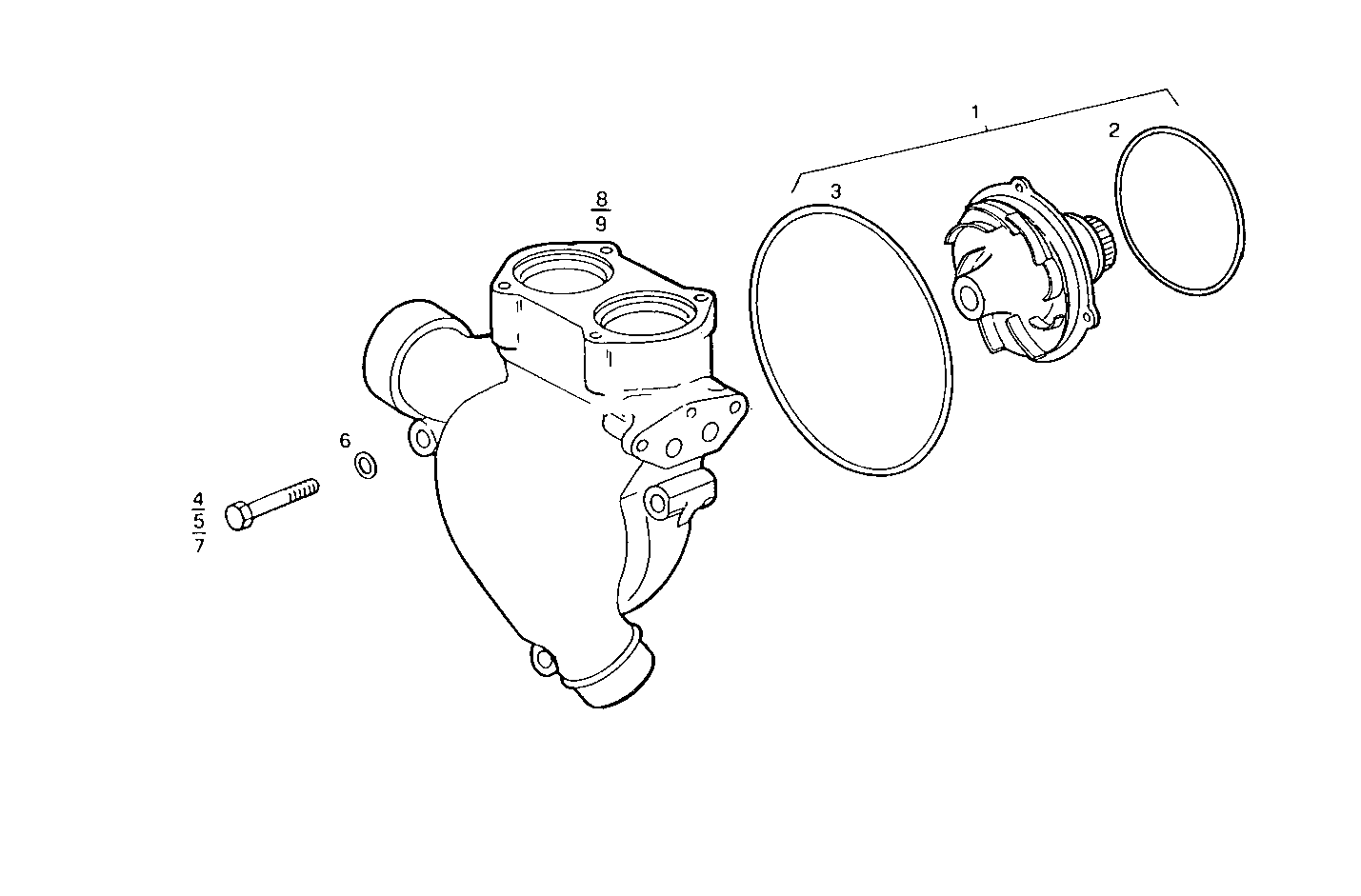

3200.082 WATER PUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 93190284 | WATER PUMP ASSY |
| 2 | 17285281 | O-RING Ø71,12 MM SP=2,62 MM |
| 3 | 17286180 | O-RING Ø120,3 MM SP=2,6 |
| 4 | 11343824 | HEXAGON BOLT M10X1,25X50 MM |
| 5 | 15971324 | SCREW M10X75 MM |
| 6 | 11198374 | SPRING WASHER Ø10X20 MM |
| 7 | 15972224 | HEXAGON BOLT M10X1,25X120 MM |
| 8 | 99450904 | WATER PUMP HOUSING M8X1,25X30 MM |
| 9 | 61319250 | WATER PUMP HOUSING [up to 433405] |
