8460SRE10.00

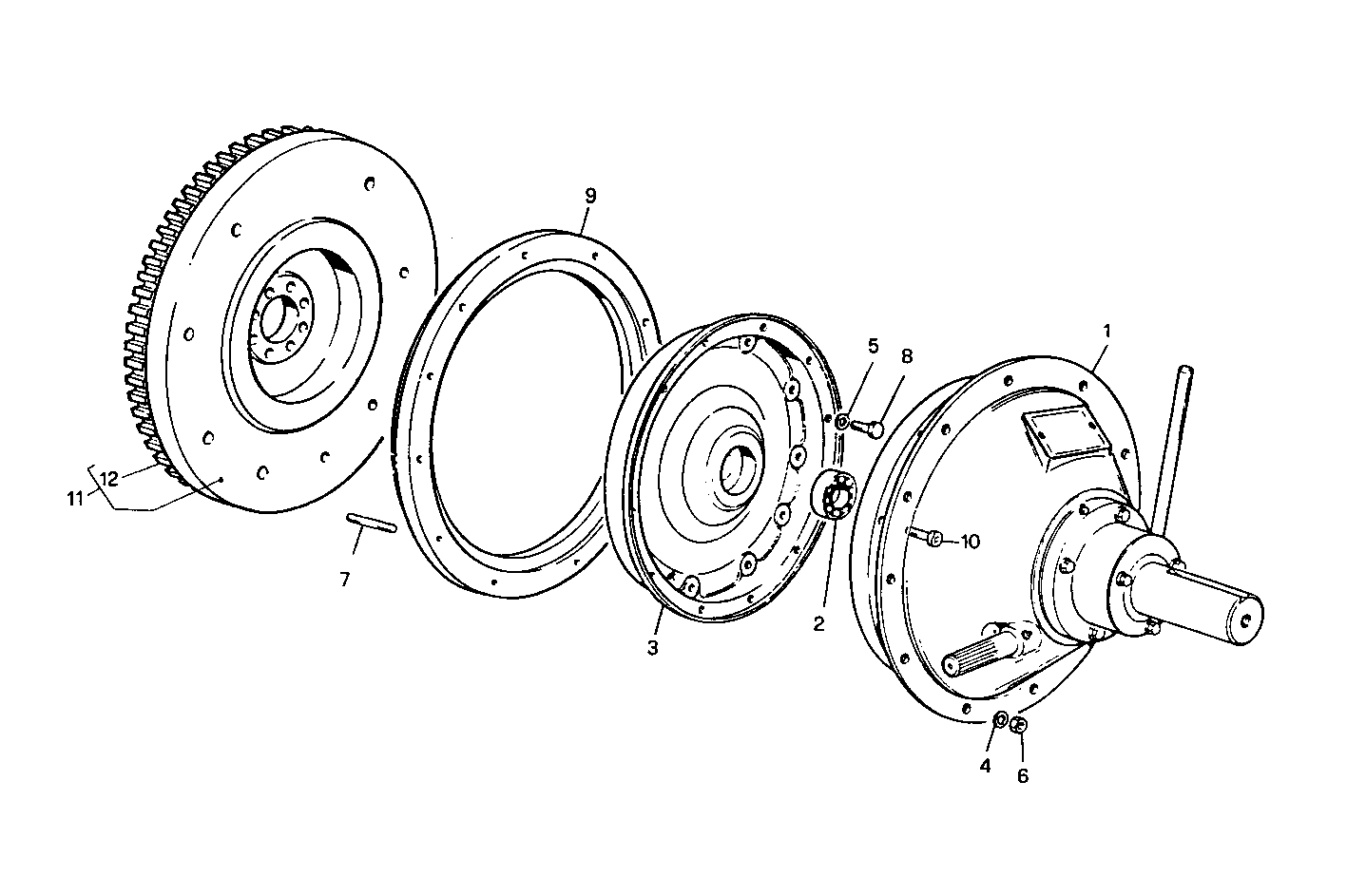

A27260008 AUTOMOTIVE CLUTCH - TECHNODRIVE 14''
Item | Part number | Description |
---|---|---|
1 | 8015238 | CLUTCH ASSY BD 3300 / 450 - SAE 1 |
2 | 4931837 | DRIVE BEARING |
3 | 4931864 | FLANGE |
4 | 17090274 | WASHER Ø10X20 MM |
5 | 17091174 | SPRING WASHER Ø12X24 MM |
6 | 17038221 | HEXAGON NUT M10 |
7 | 13454521 | STUD M10X1,25X70 |
8 | 15540621 | HEXAGON BOLT M12X40 MM |
9 | 4931829 | SPACING BAR |
10 | 14332521 | SCREW |
11 | 8027255 | FLYWHEEL |
12 | 61578844 | RING GEAR |
