8460SRE10.00

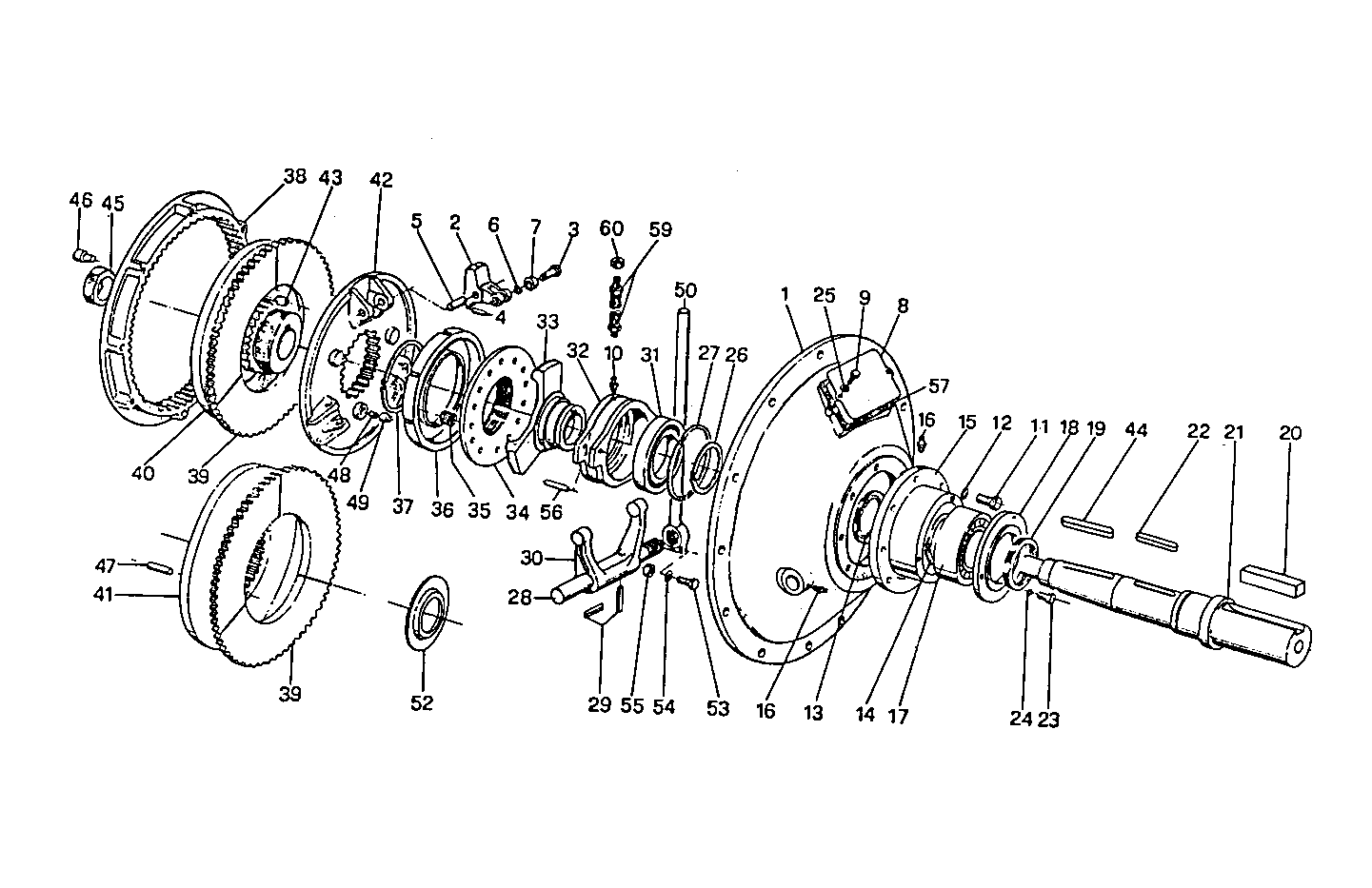

T2726001 TRIDISC CLUTCH - (components)
| Item |
Part number |
Description |
|
1 |
8091172 |
SUPPORT |
|
2 |
8091072 |
LEVER |
|
3 |
8091073 |
PIN |
|
4 |
8091074 |
PIN |
|
5 |
8091075 |
PIN |
|
6 |
8091076 |
SPRING LOCKWASHER |
|
7 |
8091077 |
PIN |
|
8 |
8091078 |
COVER |
|
9 |
8090809 |
SCREW |
|
10 |
8090815 |
LUBE FITTING |
|
11 |
8091079 |
SCREW |
|
12 |
8090812 |
WASHER |
|
13 |
8091081 |
WASHER |
|
14 |
8091082 |
CIRCLIP |
|
15 |
8091083 |
FLANGE |
|
17 |
8091084 |
DRIVE BEARING |
|
18 |
8091085 |
COVER |
|
19 |
8091086 |
OIL RETAINER |
|
20 |
8091087 |
KEY |
|
21 |
8091118 |
CLUTCHSHAFT |
|
22 |
8091089 |
KEY |
|
23 |
8091090 |
SCREW |
|
24 |
8091080 |
WASHER |
|
25 |
8091042 |
WASHER |
|
26 |
8091091 |
CIRCLIP |
|
27 |
8091092 |
SPRING LOCKWASHER |
|
28 |
8091093 |
CLUTCHSHAFT |
|
29 |
8091094 |
KEY |
|
30 |
8091095 |
CLEVIS |
|
31 |
8091096 |
DRIVE BEARING |
|
32 |
8091097 |
SUPPORT |
|
33 |
8091119 |
SUPPORT |
|
34 |
8091099 |
FLANGE |
|
35 |
8090832 |
SPRING |
|
36 |
8091100 |
FLANGE |
|
37 |
8091101 |
CIRCLIP |
|
38 |
8091120 |
FLANGE |
|
39 |
8091103 |
CLUTCH DISC |
|
40 |
8091121 |
CLUTCH DISC |
|
41 |
8090853 |
CLUTCH DISC |
|
42 |
8091122 |
RING |
|
43 |
8091123 |
SPRING |
|
44 |
8091124 |
KEY |
|
45 |
8091108 |
NUT |
|
46 |
8090842 |
KEY |
|
47 |
8091125 |
PIN |
|
48 |
8090843 |
SPRING |
|
49 |
8091109 |
PIN |
|
50 |
8091155 |
LEVER |
|
52 |
8091110 |
RING |
|
53 |
8091111 |
SCREW |
|
54 |
8090846 |
WASHER |
|
55 |
8091112 |
NUT |
|
56 |
8091113 |
PIN |
|
57 |
8091114 |
GASKET |
|
59 |
8091115 |
OIL HOSE |
|
60 |
8091116 |
NUT |
|
61 |
8091117 |
PIN |
