8460SRE10.00A003

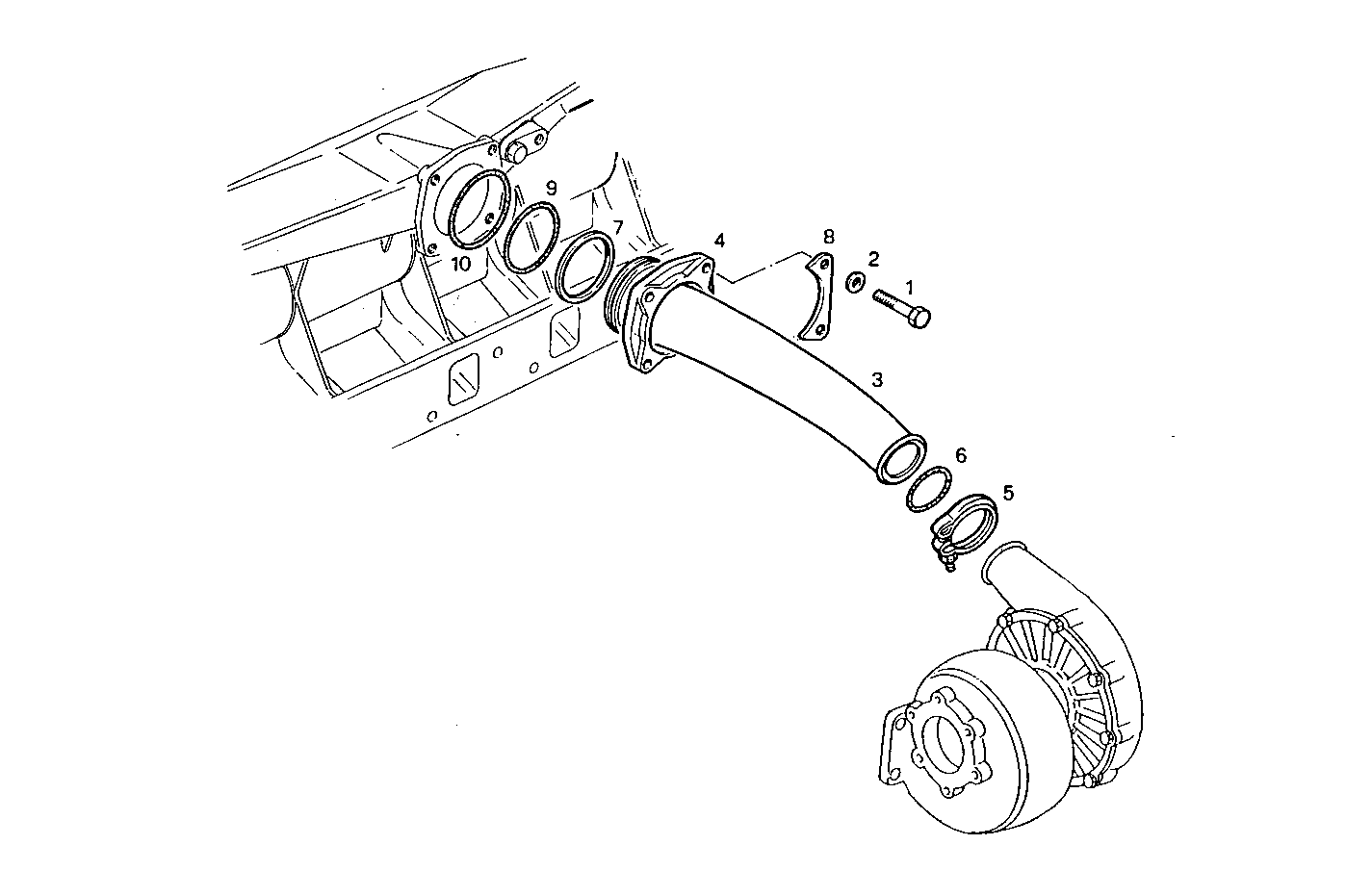

2420.080 SUPERCHARGING LINES
Item | Part number | Description |
---|---|---|
1 | 16605924 | SCREW M8X40 MM |
2 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
3 | 8015775 | AIR PIPE/DUCT |
4 | 8105950 | FLANGE |
5 | 4800661 | CLIP Ø 75 mm. |
6 | 17284681 | O-RING Ø61,6 MM SP=2,62 MM |
7 | 8105951 | CIRCLIP |
8 | 8105952 | PLATE |
9 | 17291281 | O-RING Ø94,84 MM SP=3,53 MM |
10 | 17290781 | O-RING Ø78,97X3,53 MM |
