8460SRE10.00A003

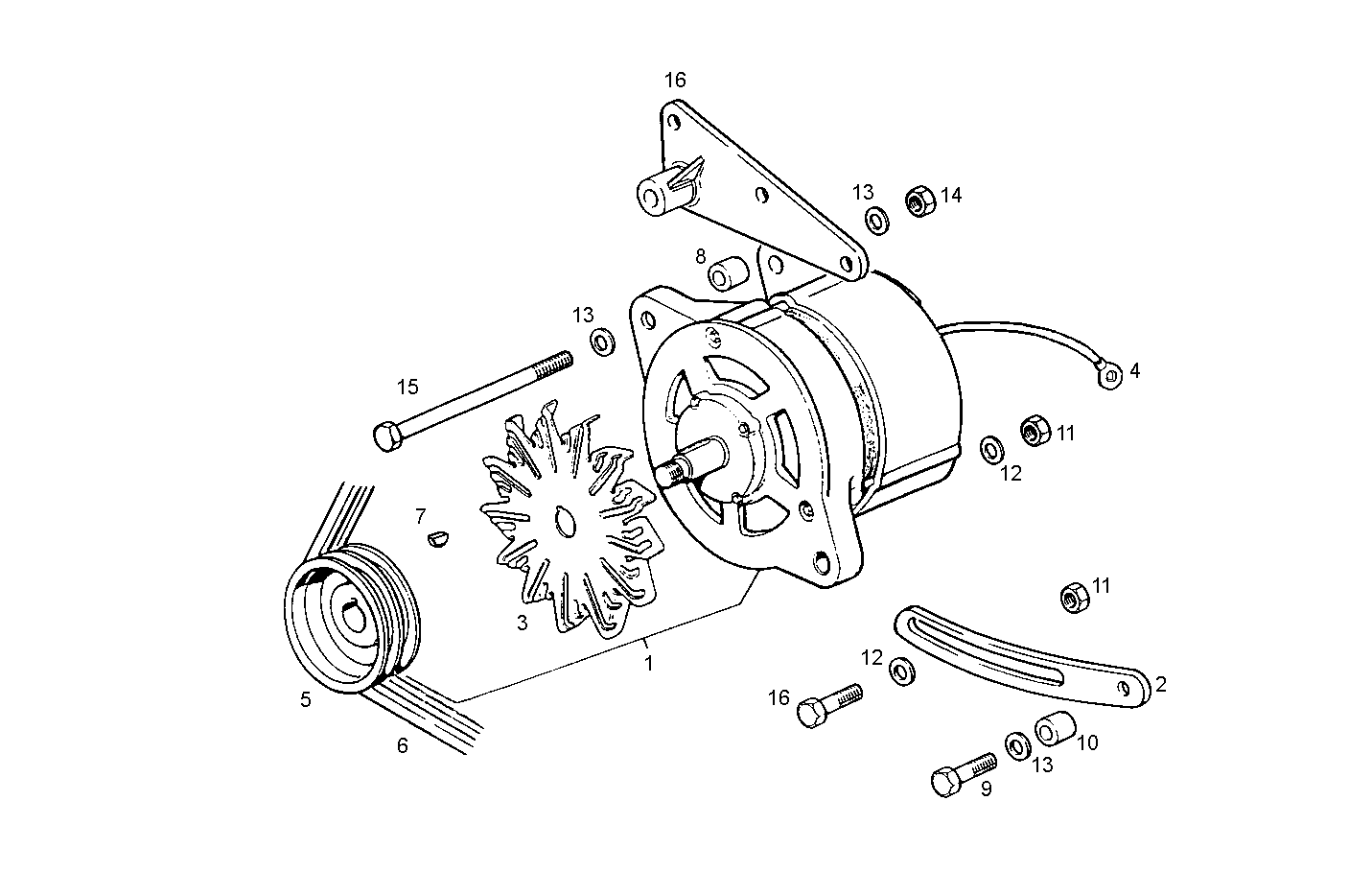

4000.137 GENERATOR
| Item | Part number | Description |
|---|---|---|
| 1 | 8020683 | ALTERNATOR ASSY |
| 2 | 8014930 | BELT TENSIONER |
| 3 | 4757196 | GENERATOR FAN BOSCH |
| 4 | 8019531 | WIRE/CABLE W |
| 5 | 98475244 | PULLEY |
| 6 | 8015777 | V-BELT KIT |
| 7 | 12277944 | CONNECTION D+ |
| 8 | 8015577 | SPACING BAR SP=8,00 MM |
| 9 | 16608324 | HEXAGON BOLT M10X1,5X60 MM |
| 10 | 4934572 | SPACING BAR |
| 11 | 17038631 | HEXAGON NUT M12X1,25 |
| 12 | 17091074 | WASHER Ø12X24X2,8 MM |
| 13 | 17097124 | WASHER 10x21 |
| 14 | 17157125 | NUT M10x1.5 |
| 15 | 11108821 | HEXAGON BOLT M10X130 MM |
| 16 | 15540924 | HEXAGON BOLT |
