8460SRE12.00

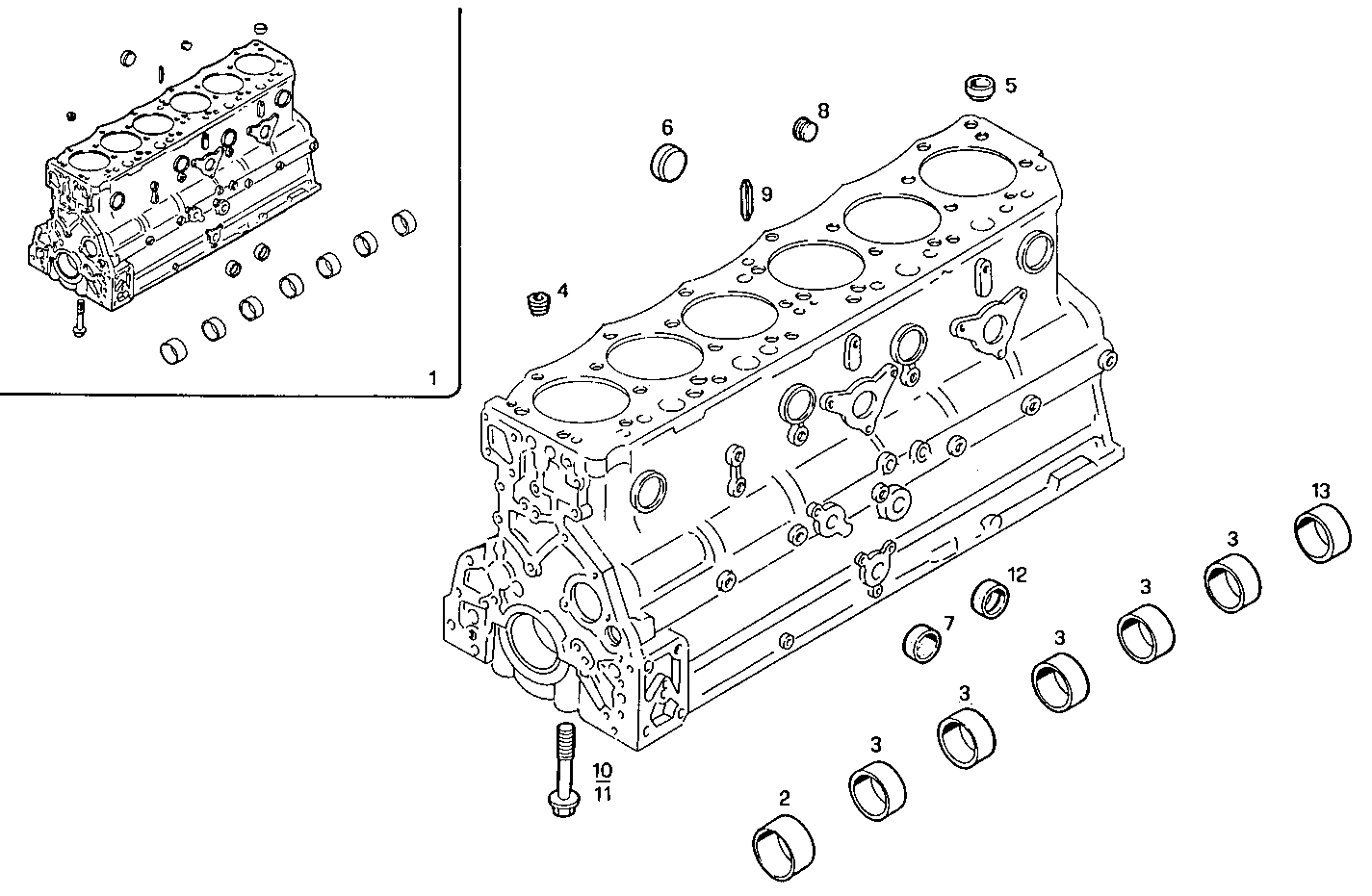

0400.034/01 CRANKCASE

Iveco/FPT CRANKCASE

Item Part number Description
1 61320877 CRANKCASE ASSY
2 61320157 CAMSHAFT BEARING FRONT
3 61320158 DRIVE BEARING
4 16997411 THREADED PLUG M16X1,5
5 16991170 LOCK PLUG Ø36 MM
6 16991270 LOCK PLUG Ø40 MM
7 16991370 LOCK PLUG Ø45 MM
8 61319492 LOCK PLUG M12X1,5
9 14612670 DOWEL PIN Ø12,5 MM
10 61315570 CRAHKSFT.BEAR.STUD
11 61315554 CRAHKSFT.BEAR.STUD
12 16991470 LOCK PLUG Ø50 MM
13 61320159 DRIVE BEARING
