8460SRE12.00

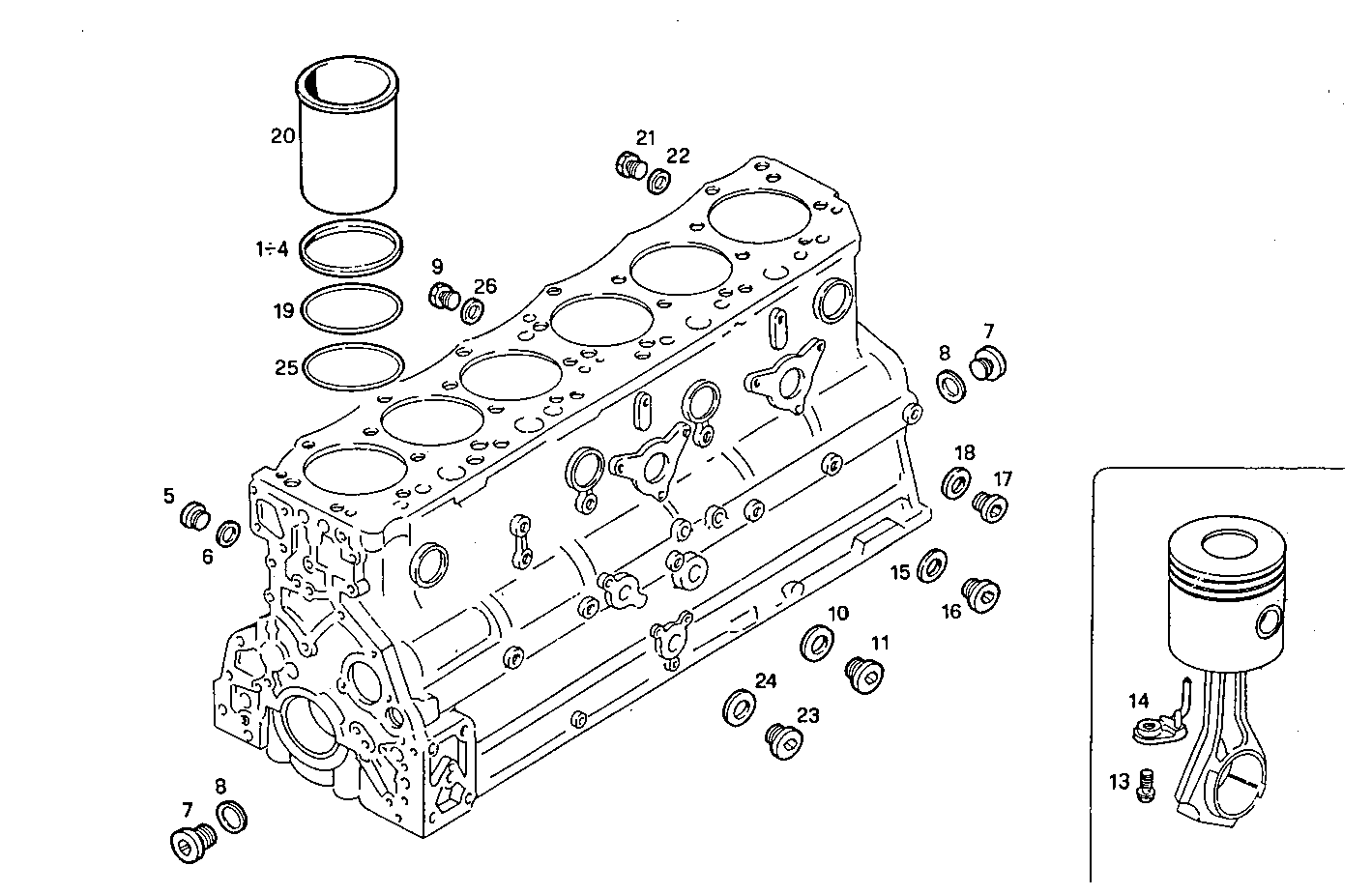

0400.034/02 CRANKCASE

Iveco/FPT CRANKCASE

Item Part number Description
1 61316747 SEAL GASKET SP=0,08 MM
2 61316748 SEAL GASKET SP=0,1 MM
3 61316749 SEAL GASKET SP=0,12 MM
4 61316793 SEAL GASKET SP=0,14 MM
5 10273111 LOCK PLUG M18X1,5
6 16508360 WASHER 18x22x1,5
7 10275011 PLUG M22X1,5
8 61318888 GASKET
9 10300611 LOCK PLUG M14X1,5
10 16508160 WASHER Ø14X18 MM
11 61315014 THREADED PLUG
13 61315021 SCREW CONNECTOR
14 61315952 OIL NOZZLE
15 10257460 SEAL GASKET Ø20X26 MM SP=1,5 MM [up to ...]
16 10304911 THREADED PLUG M20X1,5
17 10278340 LOCK PLUG M28
18 10296260 SEAL GASKET Ø28X36 MM SP=1,5 MM
19 61321115 O-RING
20 61316857 CYLINDER LINER
21 4665029 LOCK PLUG M42X1,5
22 10265460 SEAL GASKET Ø42X49 MM SP=1,5 MM
23 16992511 THREADED PLUG M18X1,5
24 4858610 WASHER Ø18X24 MM SP=1,5 MM
25 61315083 O-RING
26 10280060 WASHER Ø14X20 MM SP=1,5 MM
