8460SRE12.00

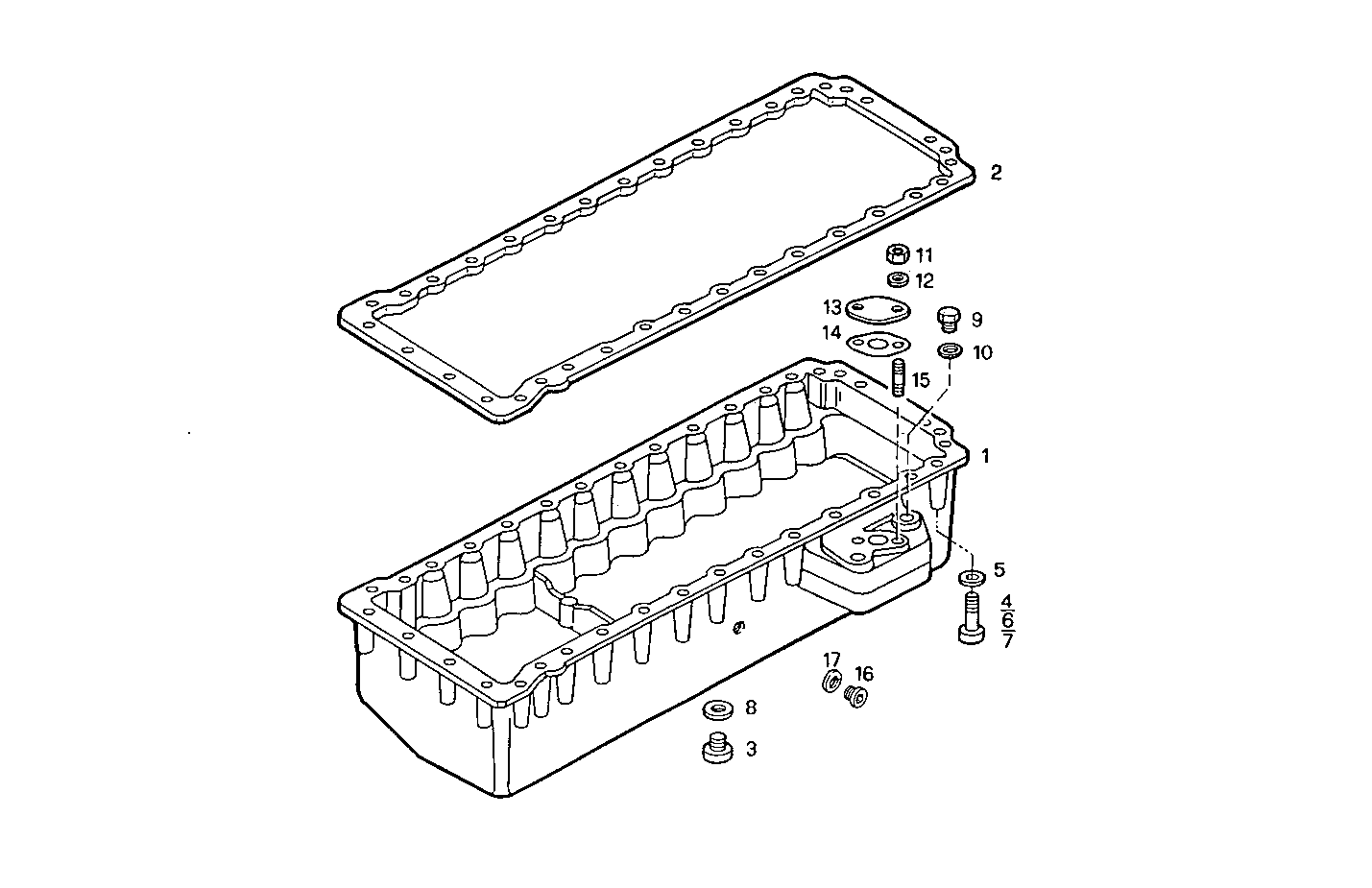

0420.066 OIL SUMP

Iveco/FPT OIL SUMP

Item Part number Description
1 61317732 OIL SUMP ASSY
2 61319083 OIL SUMP GASKET
3 10275311 LOCK PLUG M22X1,5X16 MM
4 11307024 SCREW M10X1,25X40 MM
5 17800574 SPRING WASHER Ø10,5X21 MM
6 15971524 HEXAGON BOLT SP=7 MM
7 15972924 HEXAGON BOLT M10X1,25X160
8 16508460 WASHER 22x27x1,5
9 10273111 LOCK PLUG M18X1,5
10 10508360 GASKET
11 17037931 HEXAGON NUT M8X1,25
12 11190474 WASHER
13 4798805 COVER
14 4864034 FLAT ENGINE GASKET
15 16746624 STUD M8X20 MM (8.8)
16 16992411 THREADED PLUG M16X1,5
17 4858609 WASHER Ø16X22 MM SP=1,5 MM
