8460SRE12.00

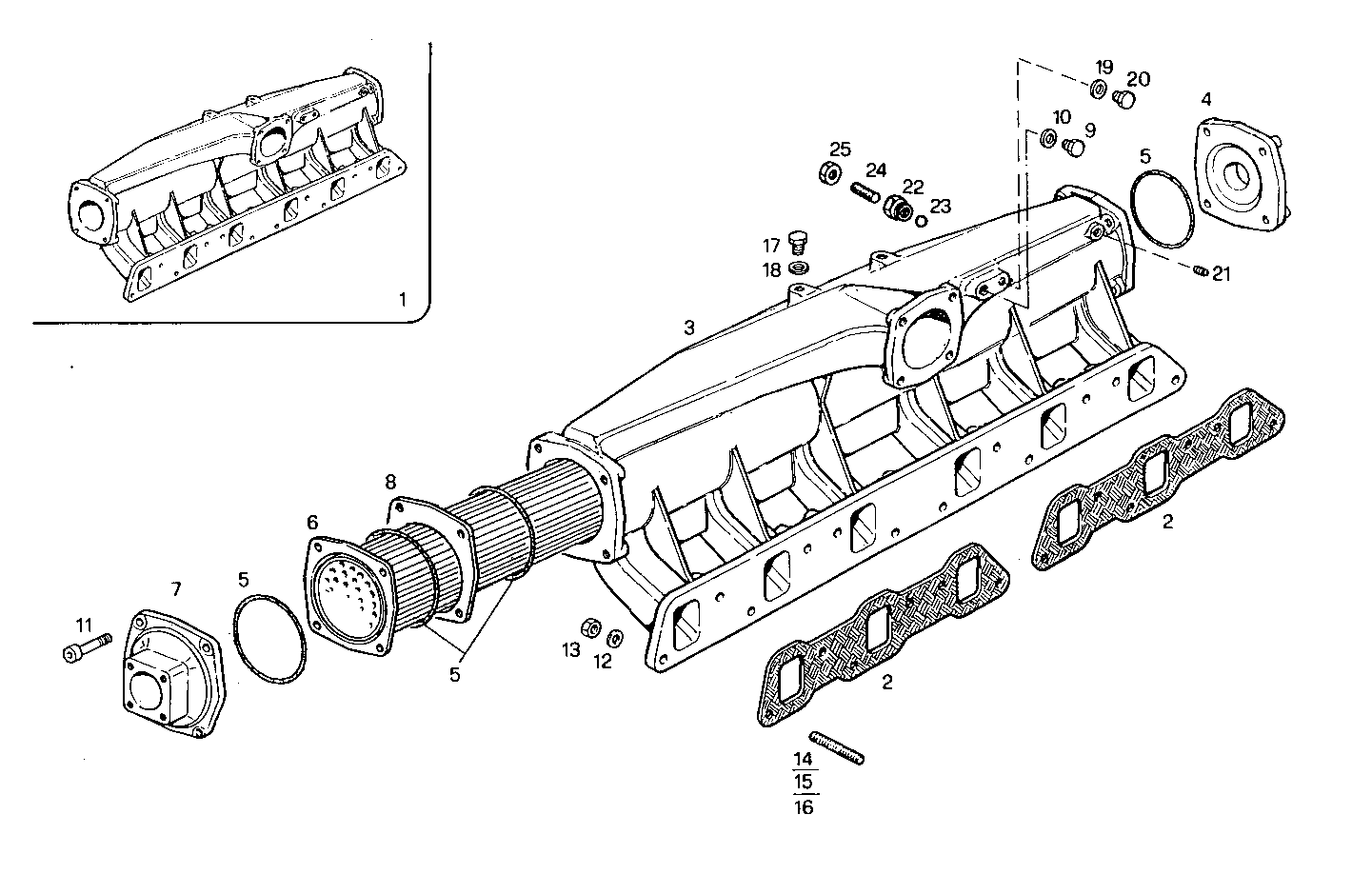

0710.059 INTAKE MANIFOLD

Iveco/FPT INTAKE MANIFOLD

Item Part number Description
1 8026014 INTAKE ELBOW ASSY
2 61321089 INTAKE ELBOW GASK.
3 8012453 INTAKE ELBOW
4 8018310 COVER
5 17291981 O-RING Ø117,07X3,53 MM
6 8025988 TUBE STACK
7 8016618 COVER
8 8012457 SPACING BAR
9 16992540 PLUG M18X1,5
10 4858610 WASHER Ø18X24 MM SP=1,5 MM
11 16690724 CYLIND-HEAD SCREW M8X30 MM
12 17090174 SPRING WASHER Ø10X20 MM
13 17038221 HEXAGON NUT M10
14 13449721 STUD M10X15X30
15 13450521 STUD M10X15X70
16 13953821 STUD M10X15X120
17 4595833 THREADED PLUG M20X1,5
18 98429280 SEAL GASKET Ø20X26 MM SP=1,5 MM
19 4858607 WASHER Ø12X17 MM SP=1,5 MM
20 16992211 THREADED PLUG M12X1,5
21 16996011 PLUG
22 8025610 PIPE SOCKET
23 8017600 BALL Ø10 MM
24 8025611 SCREW M10X25
25 8025612 NUT
