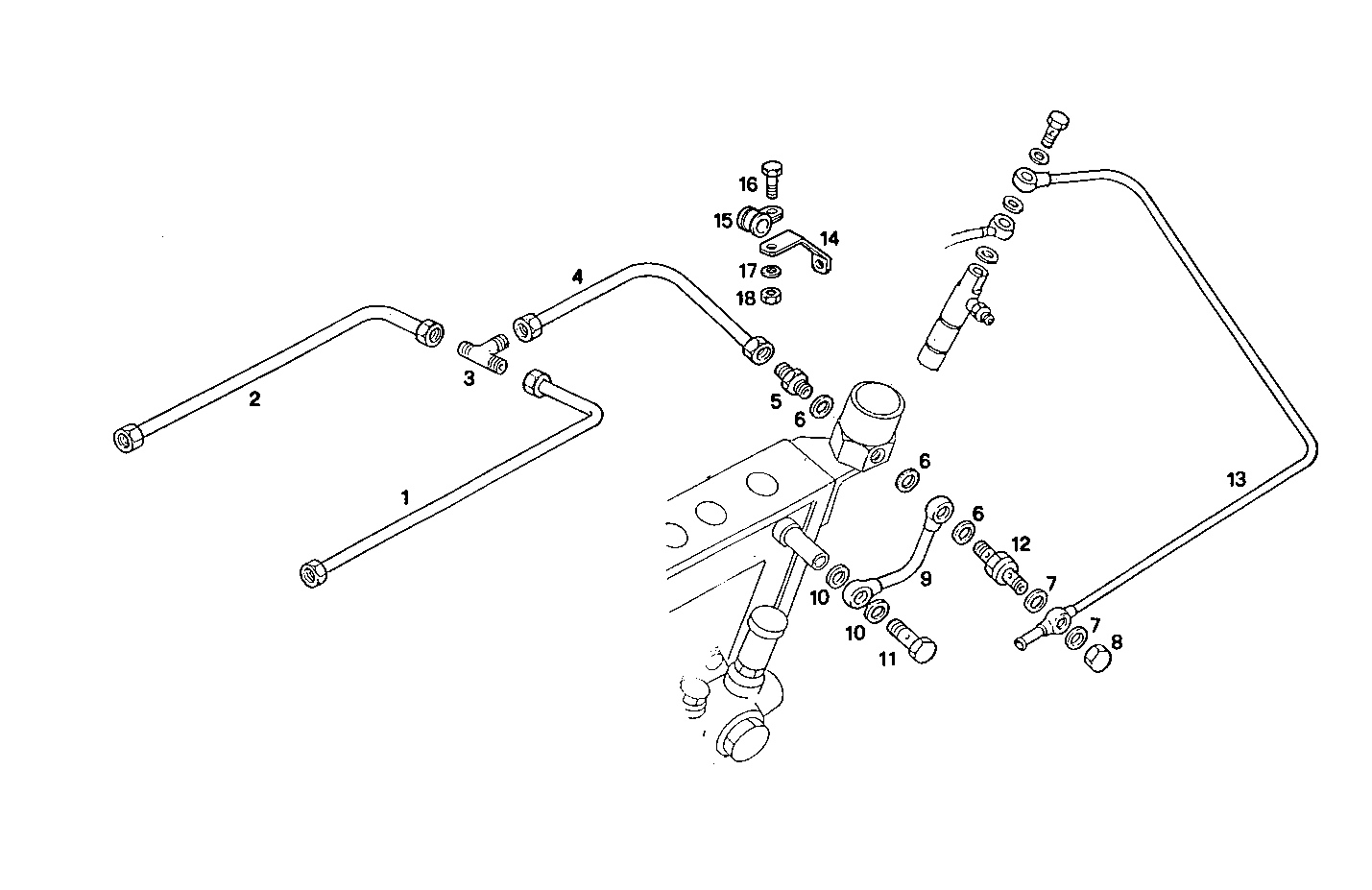

| Item |
Part number |
Description |
|
1 |
8017491 |
FUEL LINE FRONT |
|
2 |
8017492 |
FUEL LINE REAR |
|
3 |
16505011 |
T-COUPLING |
|
4 |
8017490 |
FUEL LINE |
|
5 |
16500011 |
PIPE SOCKET |
|
6 |
98474305 |
WASHER Ø10X17 MM SP=2,3 |
|
7 |
98474306 |
WASHER Ø12X20 MM SP=1,9 MM |
|
8 |
98469675 |
THREADED PLUG M12X1 |
|
9 |
8025540 |
FUEL LINE |
|
10 |
4858608 |
SEAL GASKET dia.14x19,5x1,5 |
|
11 |
4864083 |
SCREW CONNECTOR M14X1,5X30 MM |
|
12 |
98469450 |
BYPASS VALVE |
|
13 |
8017493 |
FUEL LINE |
|
14 |
8007133 |
RETAINER |
|
15 |
17316190 |
PIPE CLIP Ø6 MM |
|
16 |
16605424 |
SCREW M8X16 MM (8.8) |
|
17 |
17089774 |
SPRING WASHER Ø8,4X22 MM SP=2,4 MM |
|
18 |
17037931 |
HEXAGON NUT M8X1,25 |
