8460SRi10.00A016

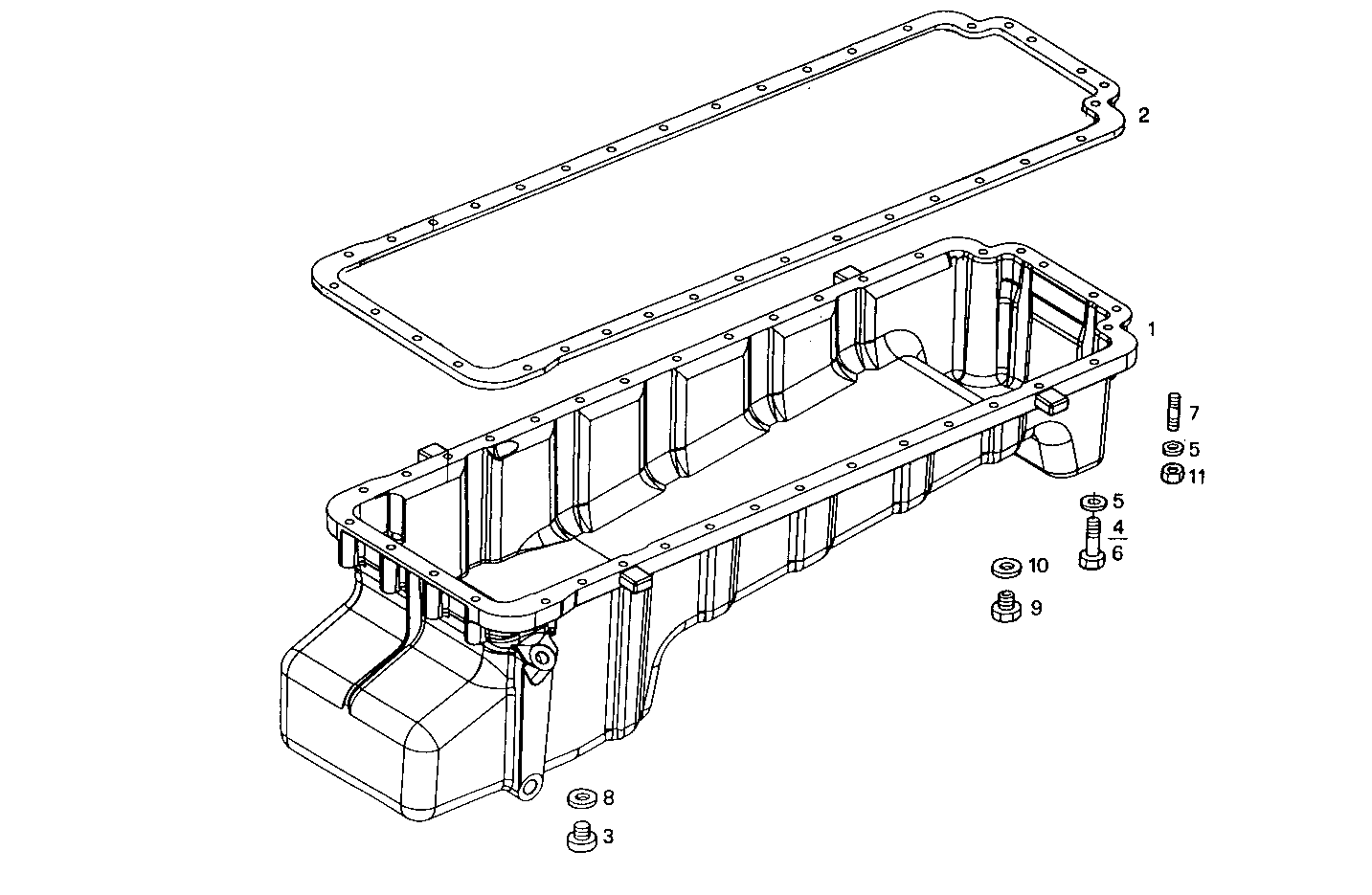

0420.116 OIL SUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 8023110 | OIL SUMP |
| 2 | 61319083 | OIL SUMP GASKET |
| 3 | 10275311 | LOCK PLUG M22X1,5X16 MM |
| 4 | 11234721 | HEXAGON BOLT M10X1,25X45 MM |
| 5 | 17800574 | SPRING WASHER Ø10,5X21 MM |
| 6 | 15971621 | HEXAGON BOLT M10X1,25X90 MM |
| 7 | 13547421 | STUD |
| 8 | 10263460 | WASHER Ø22X28X1,5 MM |
| 9 | 4651001 | BUSH M30X1,5/M22X1,5 |
| 10 | 10303460 | SEAL GASKET Ø30x36x1,5 MM |
| 11 | 12164715 | NUT |
