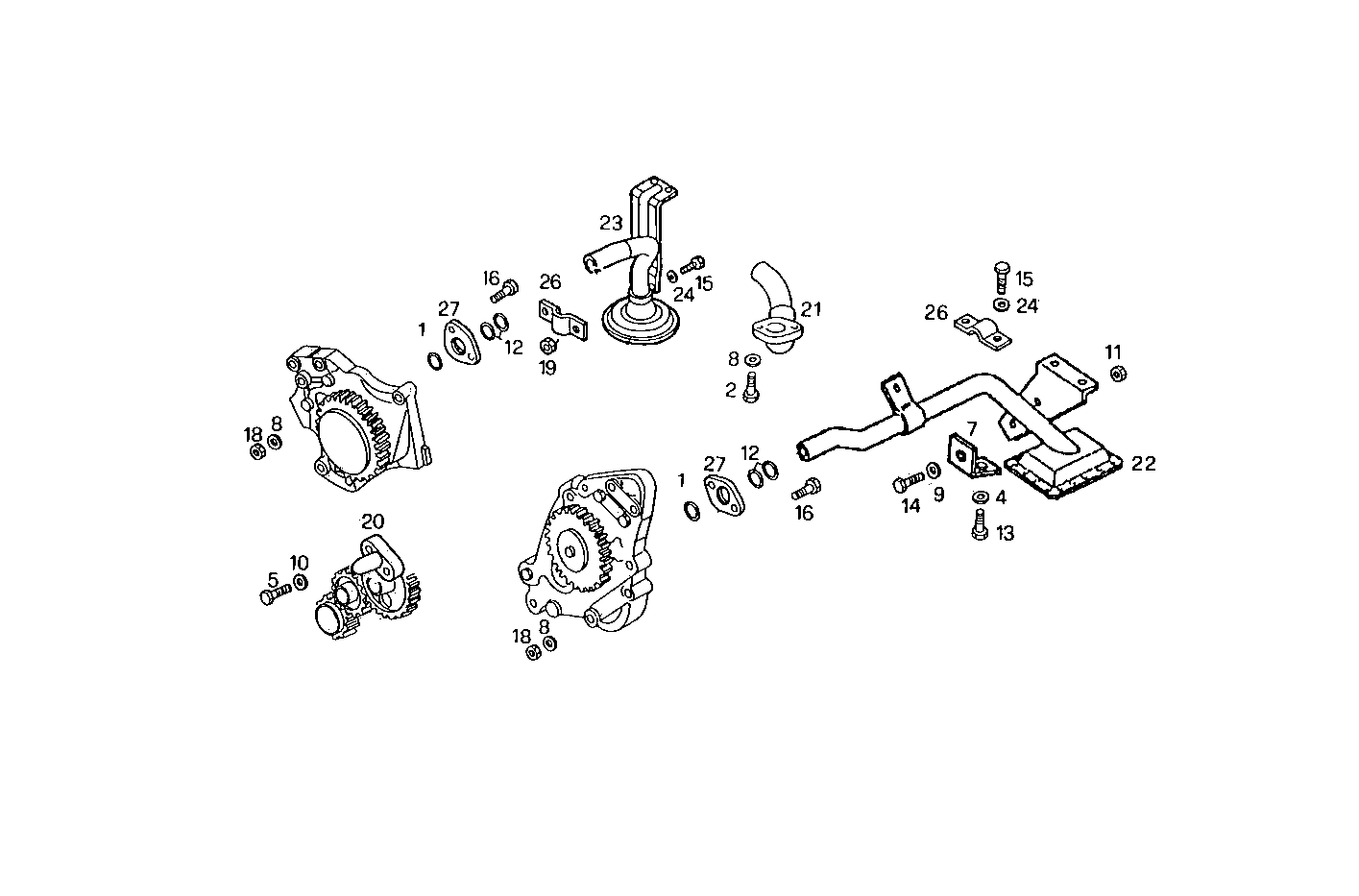

| Item |
Part number |
Description |
|
1 |
17282381 |
O-RING Ø25,07 MM SP=2,62 MM |
|
2 |
16044021 |
HEXAGON BOLT M8X1,25X40 MM |
|
4 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
5 |
16603724 |
HEXAGON BOLT M6X20 MM (8.8) |
|
7 |
61318441 |
FASTENING BRACKET |
|
8 |
17089574 |
WASHER Ø8X16 MM |
|
9 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
10 |
17799374 |
SPRING WASHER Ø6X12 MM |
|
11 |
17783791 |
NUT M10X1,25 |
|
12 |
17288981 |
O-RING Ø29,74 MM SP=3,53 MM |
|
13 |
16605424 |
SCREW M8X16 MM (8.8) |
|
14 |
15970321 |
HEXAGON BOLT M10X16 MM |
|
15 |
16605524 |
HEXAGON BOLT M8X20 MM |
|
16 |
16606424 |
HEXAGON BOLT M8X65 MM |
|
17 |
4673582 |
FASTENING RING |
|
18 |
17037931 |
HEXAGON NUT M8X1,25 |
|
19 |
13680021 |
HEXAGON NUT M8X1,25 |
|
20 |
61586093 |
OIL NOZZLE |
|
21 |
61316163 |
OIL LINE |
|
22 |
61319262 |
SUCTION STRAINER |
|
23 |
8024192 |
SUCTION STRAINER |
|
24 |
17094914 |
WASHER 8x16 |
|
26 |
61318446 |
PIPE CLIP |
|
27 |
61317784 |
FLANGE |
