8460SRi10.00A016

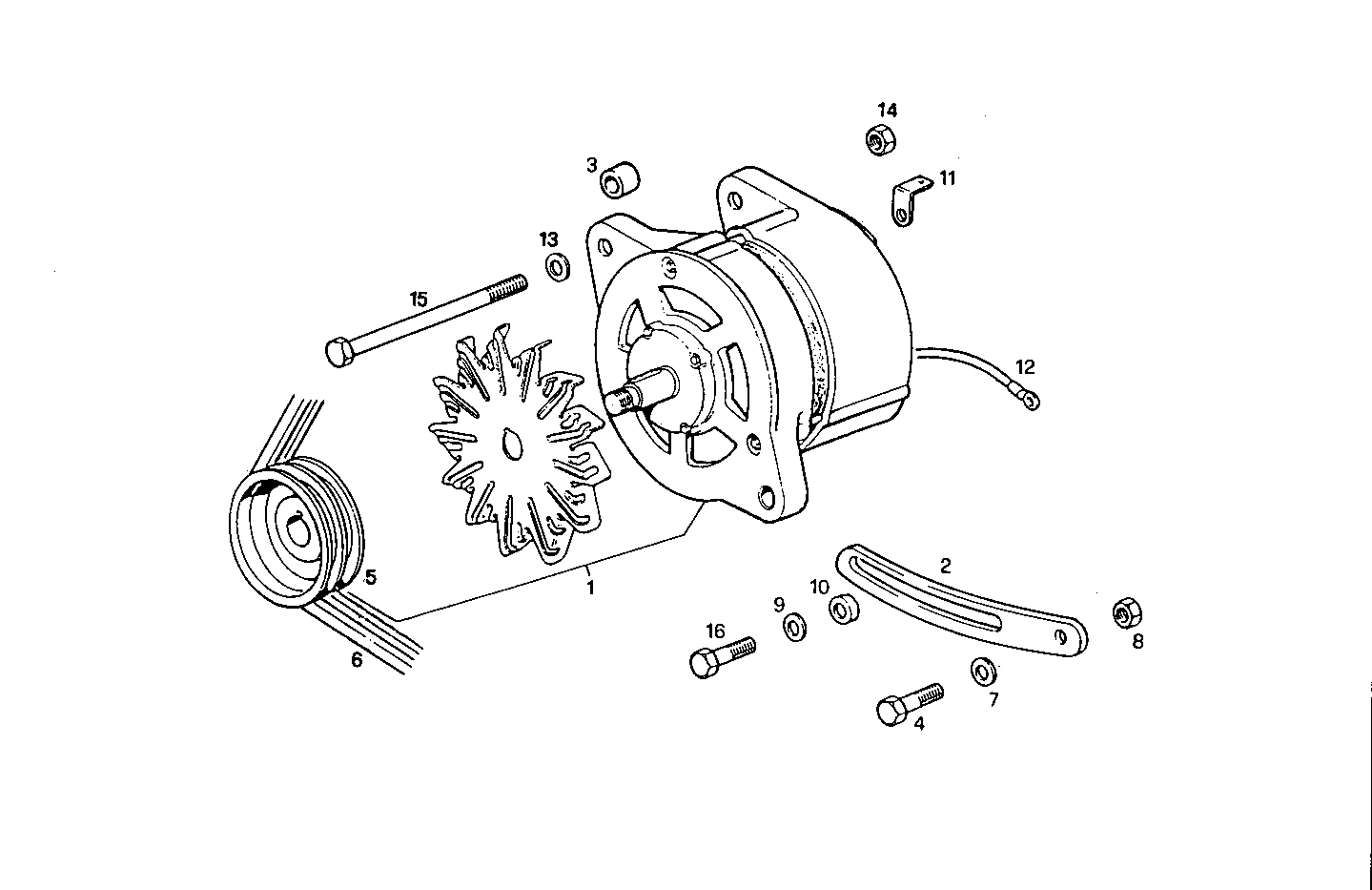

4000.070 GENERATOR
| Item | Part number | Description |
|---|---|---|
| 1 | 98424453 | ALTERNATOR ASSY BOSCH |
| 2 | 8014930 | BELT TENSIONER |
| 3 | 8015577 | SPACING BAR SP=8,00 MM |
| 4 | 15540921 | HEXAGON BOLT M12X1,25X55 MM |
| 5 | 98475244 | PULLEY |
| 6 | 8015777 | V-BELT KIT |
| 7 | 17091074 | WASHER Ø12X24X2,8 MM |
| 8 | 17038621 | NUT M12 |
| 9 | 17095104 | WASHER Ø10X21X2 MM |
| 10 | 4934572 | SPACING BAR |
| 11 | 11277944 | CONNECTION |
| 12 | 8019531 | WIRE/CABLE W |
| 14 | 17157121 | HEXAGON NUT M10X1,5 |
| 15 | 16609124 | HEXAGON BOLT M10X130 MM |
| 16 | 16608324 | HEXAGON BOLT M10X1,5X60 MM |
