Catalogue Menu

8460SRi10.00A020

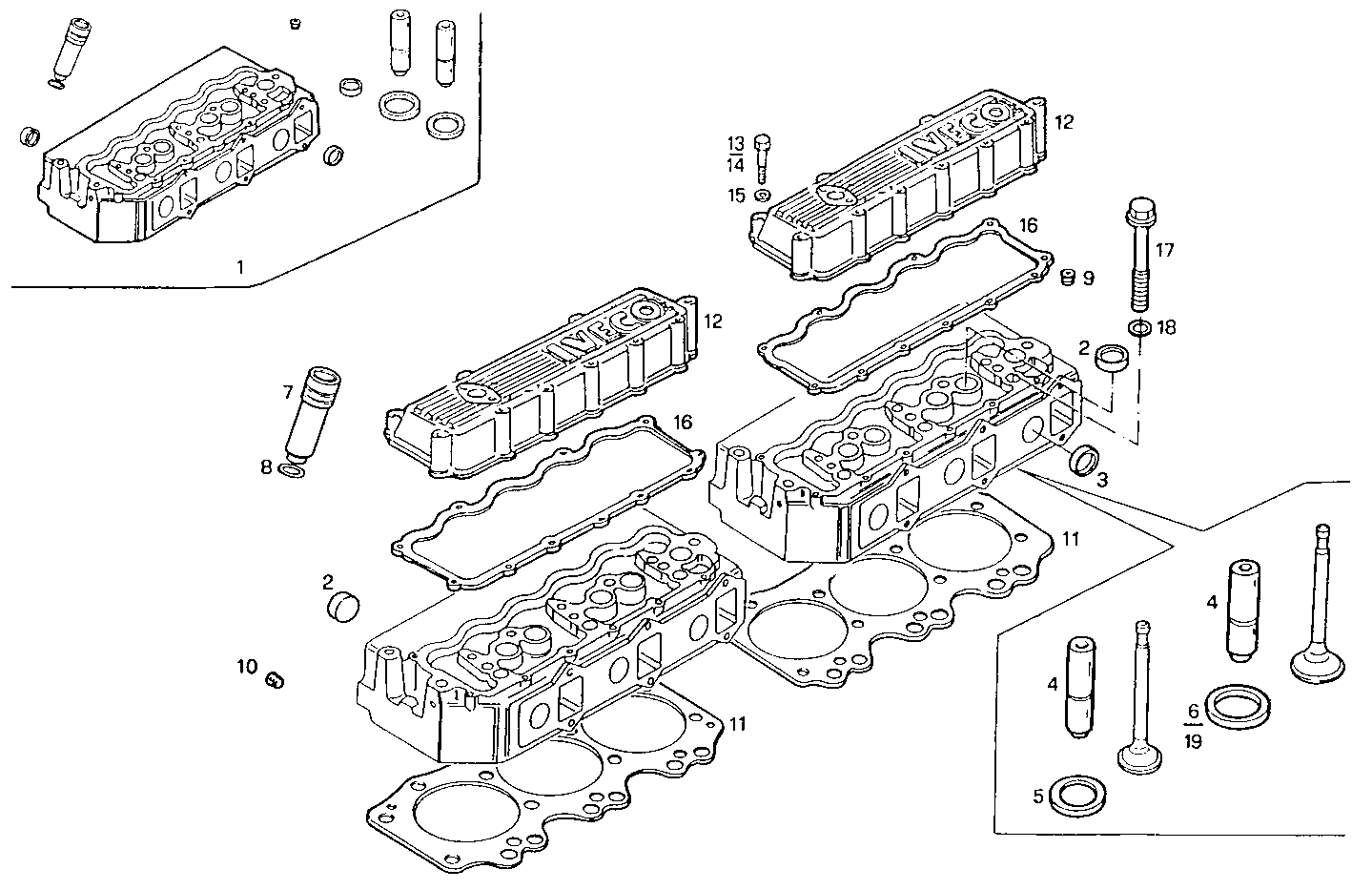

0600.070/01 CYLINDER HEAD

Iveco/FPT CYLINDER HEAD

Item Part number Description
1 61320064 CYLINDER HEAD ASSY
2 16990870 LOCK PLUG Ø28 MM
3 16991070 LOCK PLUG Ø32 MM
4 61585072 VALVE GUIDE
5 61315085 VALVE SEAT STD. EXHAUST
6 61319629 VALVE SEAT STD. INLET GOETZE
7 61315088 NOZZLE HOLDER SEAT
8 61582822 O-RING
9 61584412 LOCK PLUG
10 14326101 THREADED PLUG M8X1,25
11 61319085 CYL.HEAD GASKET
12 61316819 CYL. HEAD COVER
13 16606224 HEXAGON BOLT M8X55 MM
14 16046724 SCREW
15 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
16 61319394 HEAD COVER GASKET
17 4815557 CYL.HEAD STUD
18 61315656 WASHER
