Catalogue Menu

8460SRi10.00A020

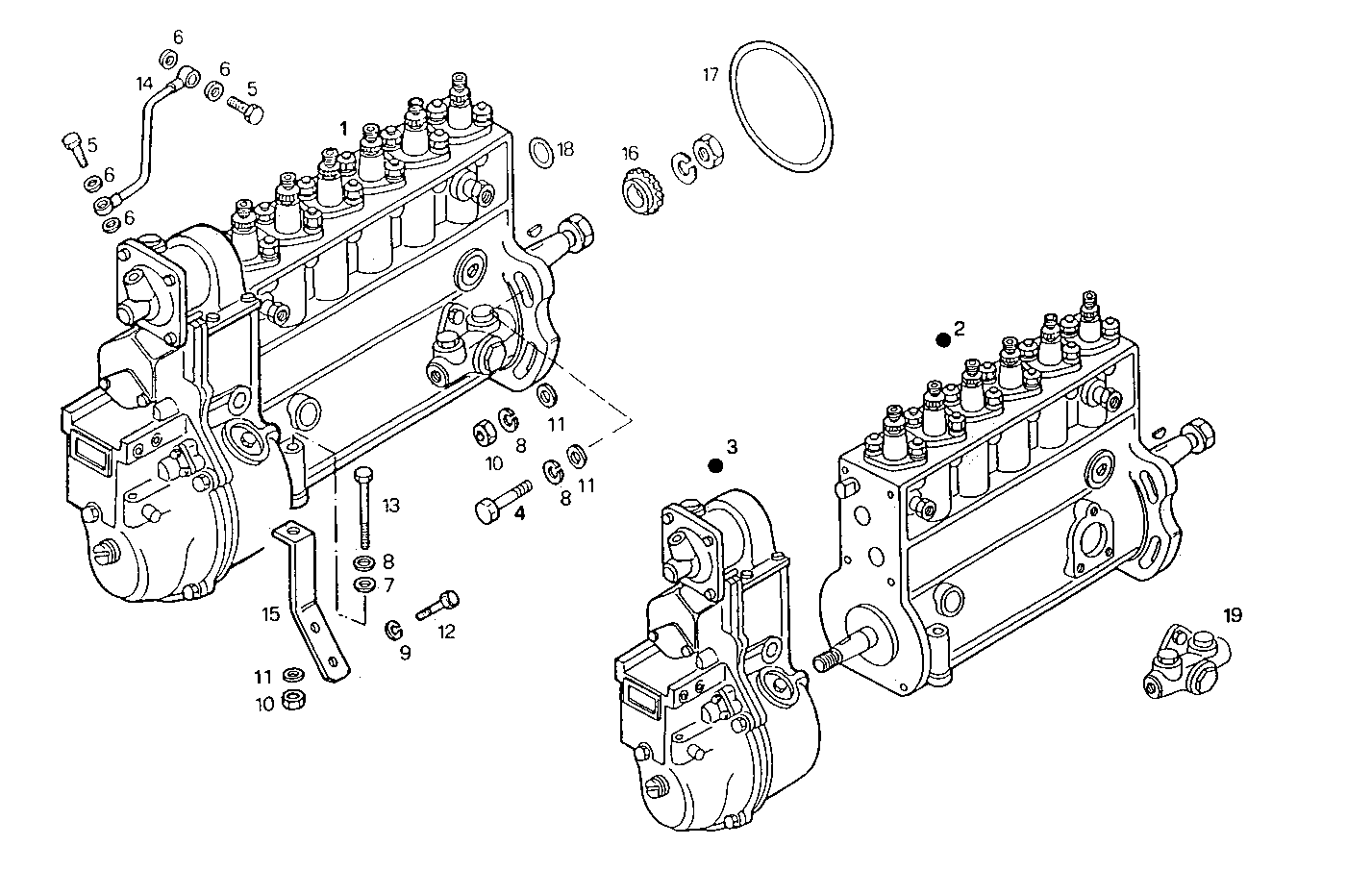

1400.134 INJECTION PUMP ASSY

Iveco/FPT INJECTION PUMP ASSY

Item Part number Description
1 98496921 INLINE INJECT.PUMP ASSY
4 15970921 HEXAGON BOLT M10X1,25X35 MM
5 4864082 BANJO BOLT M12X1,5X25 MM
6 4858607 WASHER Ø12X17 MM SP=1,5 MM
7 17095114 WASHER Ø10X21 MM
8 17090174 SPRING WASHER Ø10X20 MM
9 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
10 17038221 HEXAGON NUT M10
11 61320297 WASHER
12 16043521 SCREW M8X22
13 15971721 SCREW M10X1,25X95
14 8018769 FUEL LINE L=240 MM
15 61329215 SUPPORT
16 61319214 INJECT.PUMP BUSH
17 61317062 O-RING
18 61317701 O-RING Ø3,2X10 MM
19 93160510 FUEL PUMP OPT.
