8460SRi10.00A020

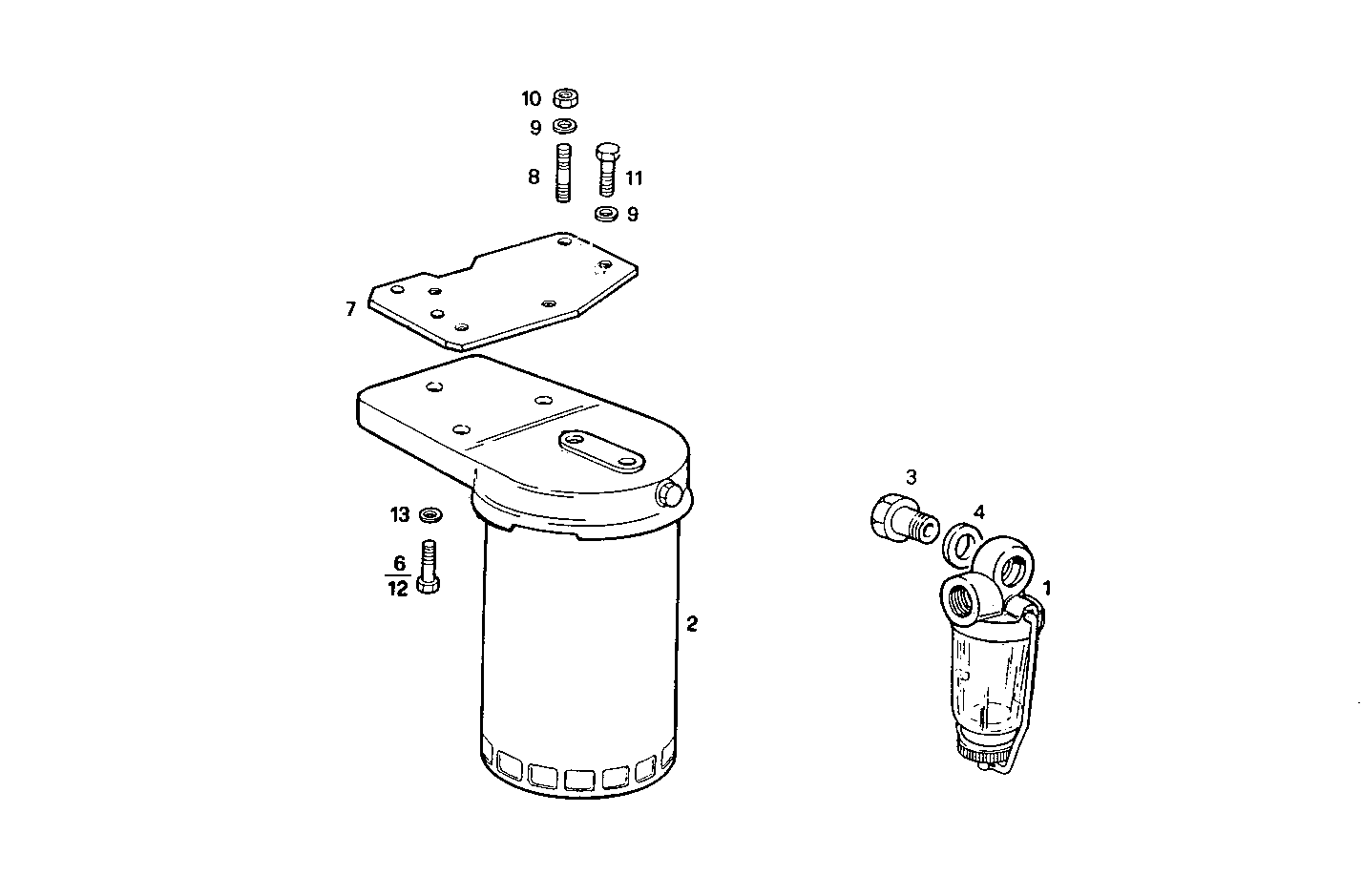

2000.049 FUEL FILTER

Iveco/FPT FUEL FILTER

Item Part number Description
1 4797318 FUEL FILTER CORONA
2 4802377 FUEL FILTER ASSY
3 4864083 SCREW CONNECTOR M14X1,5X30 MM
4 98474308 SEAL GASKET Ø14X22 MM
6 15970921 HEXAGON BOLT M10X1,25X35 MM
7 8014783 RETAINER
8 16729224 STUD M8X16 MM
9 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
10 17037931 HEXAGON NUT M8X1,25
11 16605524 HEXAGON BOLT M8X20 MM
12 16041621 SCREW
13 17090174 SPRING WASHER Ø10X20 MM
