8460SRi10.00A020

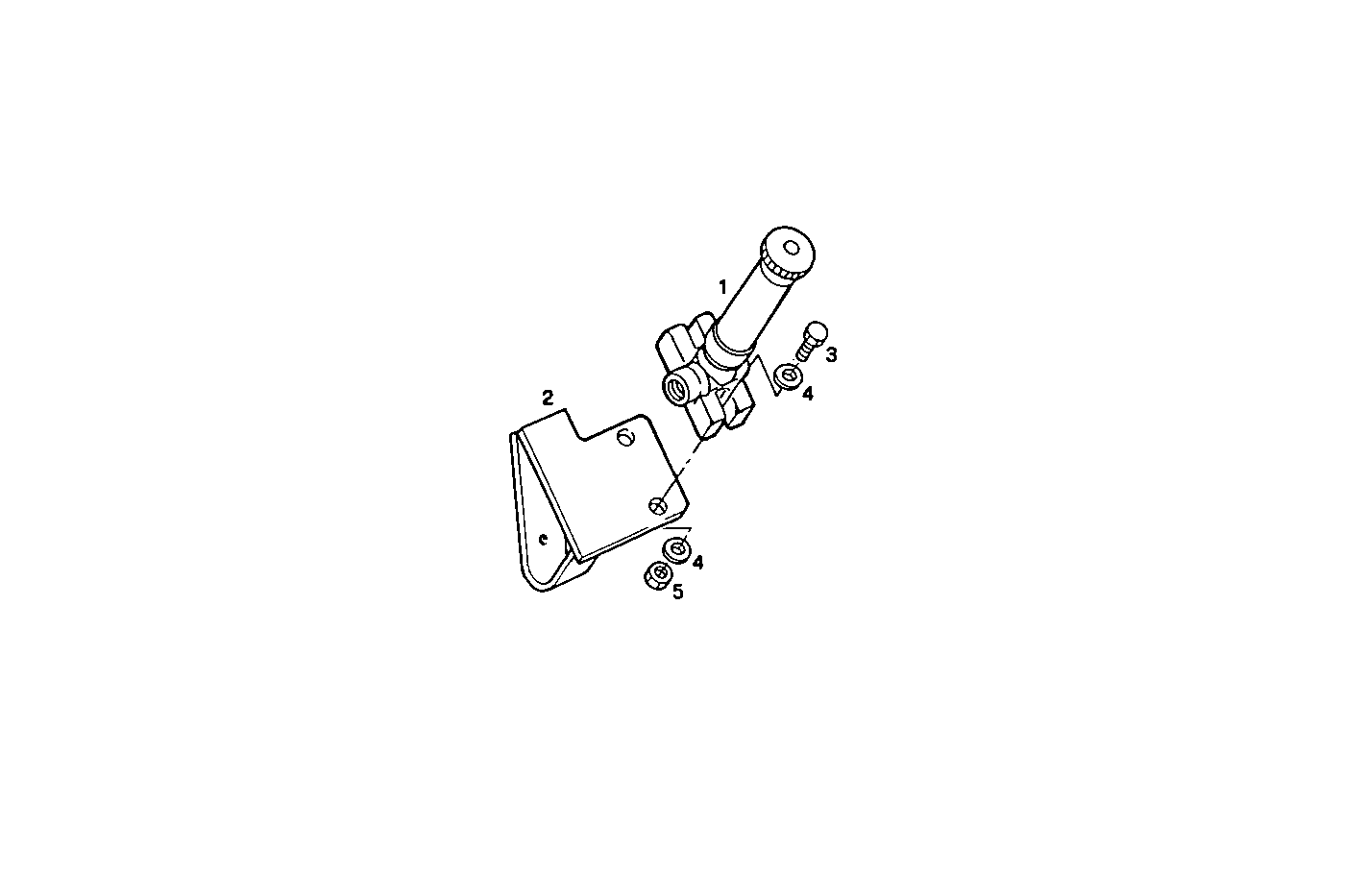

2010.015 FUEL PUMP
Item | Part number | Description |
---|---|---|
1 | 4797319 | HAND PUMP ASSY |
2 | 8018277 | SUPPORT |
3 | 16603924 | HEXAGON BOLT M6X30 MM |
4 | 17088474 | WASHER Ø6X12 MM |
5 | 17037821 | HEXAGON NUT M6X1 |
