8460SRi10.00A020

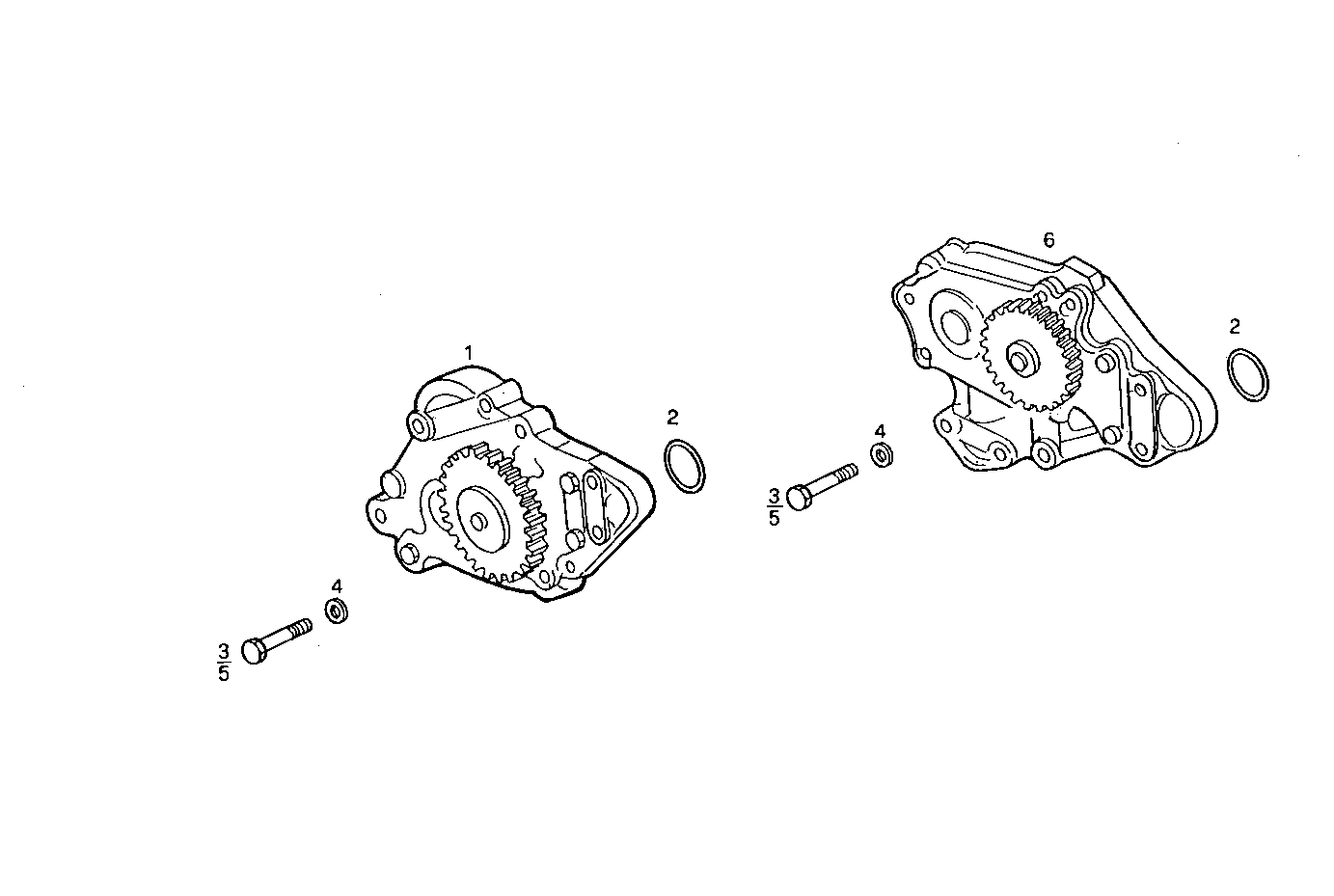

3000.035 OIL PUMP [D 456460] [from456460]
| Item | Part number | Description |
|---|---|---|
| 1 | 61318396 | LUBE OIL PUMP ASSY PRIMARY |
| 2 | 17282381 | O-RING Ø25,07 MM SP=2,62 MM |
| 3 | 11288024 | HEXAGON BOLT M10X1,25X60 MM |
| 4 | 17090274 | WASHER Ø10X20 MM |
| 5 | 11307024 | SCREW M10X1,25X40 MM |
| 6 | 61319221 | LUBE OIL PUMP ASSY SECONDARY |
