8460SRi11.00

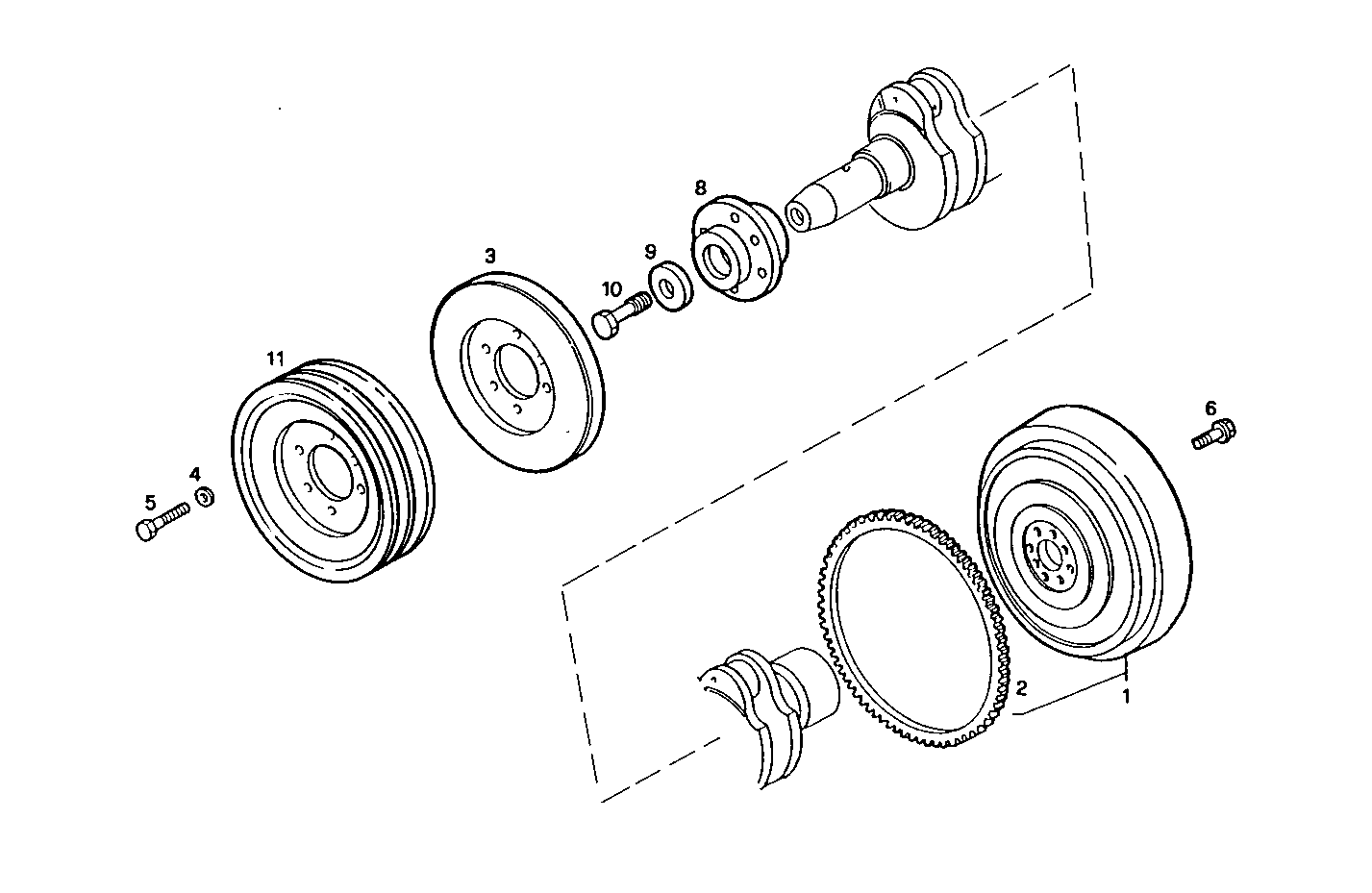

0830.071 ENGINE FLYWHEEL - DAMPER
Item | Part number | Description |
---|---|---|
1 | 8017338 | FLYWHEEL ASSY |
2 | 61578844 | RING GEAR |
3 | 61316389 | VIBRATION DAMPER DAMPERS |
4 | 17091174 | SPRING WASHER Ø12X24 MM |
5 | 15540724 | HEXAGON BOLT M12X1,25X45 MM |
6 | 4765554 | SCREW |
8 | 61317126 | DAMPER HUB |
9 | 61577278 | WASHER |
10 | 61317125 | HEXAGON BOLT |
11 | 61317357 | CRANKSHAFT PULLEY |
